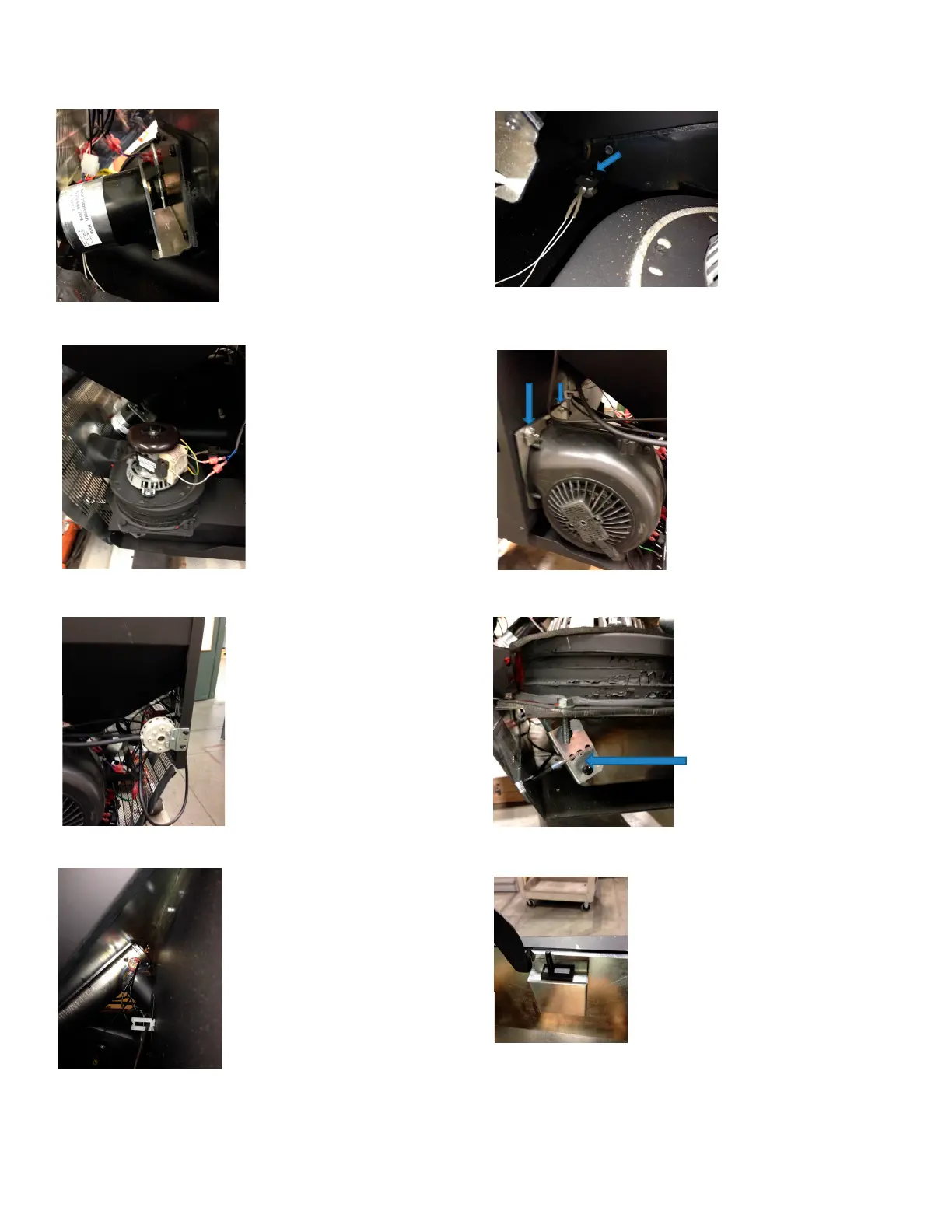

PART LOCATIONS
COMPONENT LOCATIONS
FEED MOTOR
The feed motor is located on the back of
the unit towards the bottom. Removing
the rear screen and left side panel is the
best way to access the motor.
Once access is gained, simply pulling the
pin on the auger shaft will release the
feed motor.
COMPONENT LOCATIONS
IGNITER
The igniter is located at the back of
the firebox in the middle.
Removing the left access panel
will allow you to see it. There is a
Phillips head screw holding the
igniter in place.
Screw location
COMPONENT LOCATIONS
EXHAUST BLOWER
Remove the left side panel to access
the blower. A Phillips head screwdriver
will be needed to remove the blower
from the housing.
COMPONENT LOCATIONS
CONVECTION BLOWER
Remove the right side panel to access
the blower. Two wing nuts hold it in
place. Removal is a little tight, so the
blower will need to be rotated a little to
get it out. Removing the vacuum
switch is a good option if you need a
little more room taking the blower out.
Wing nuts
COMPONENT LOCATIONS
VACUUM SWITCH
Remove the right side panel. Two
Phillips screws hold it in place.
COMPONENT LOCATIONS
EXHAUST TEMP PROBE
Remove the left side panel to access
the probe. Two Phillips head screws
hold it in place.
Probe
#3 SNAP DISC
Remove the left side panel to access
the snap disc. Two Phillips head
screws hold it in place.
COMPONENT LOCATIONS
HOPPER SWITCH
It is located under the hopper lid on the right
side the stove. The right side panel will need to
be removed to access the 2 mounting screws for
the hopper switch bracket.
