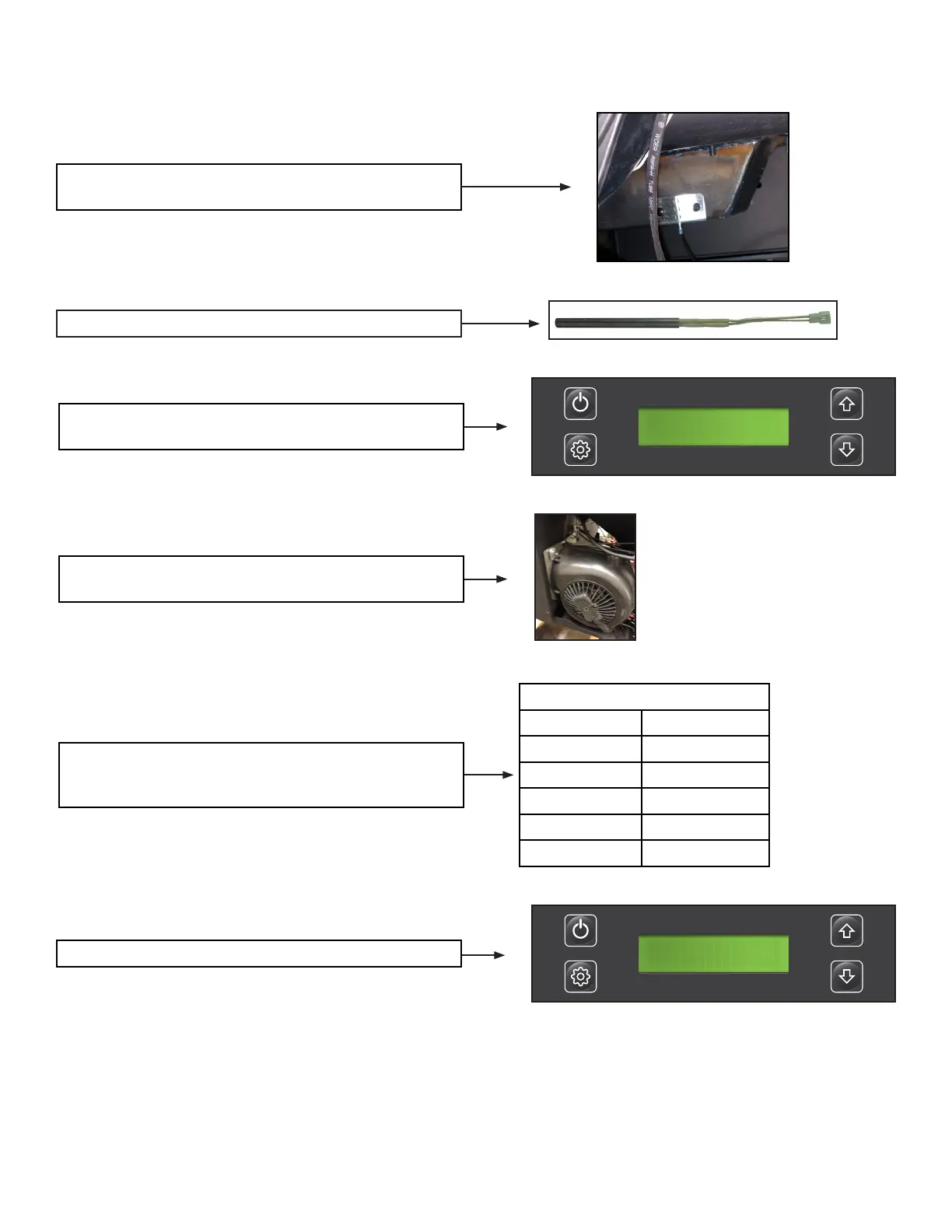

Operation Flow Chart
7: Exhaust probe senses a 6 degree increase per minute
for 2 consecutive minutes.
8: Igniter turns o.
11: A bar graph in the top right corner of the display will
show the current power level. Power level will vary
depending on room temp vs set temp on the dial.
Feed Rates: (7 Second Cycle)
PPC90/TSC90
Power Level 1: 0.9 sec “on time”
Power Level 2: 1.5 sec “on time”
Power Level 3: 1.9 sec “on time”
Power Level 4: 2.3 sec “on time”
Power Level 5: 2.7 sec “on time”
ROOM:68 SET: 72
HEATING @%
9: Flame stabilization mode begins. The feed motor will
cycle for 3 minutes.
12: Set temperature is met.
The exhaust probe will sense 140
degrees and turn on the convection
blower at a low speed.
10: Convection blower turns on and increases speed as
the appliance heats up.
