Pelpro PPC90 - Hearth Pad and Floor Placement

PelPro Cast Pellet Stove • 7093-600 • 07/13/16pelprostoves.com 9

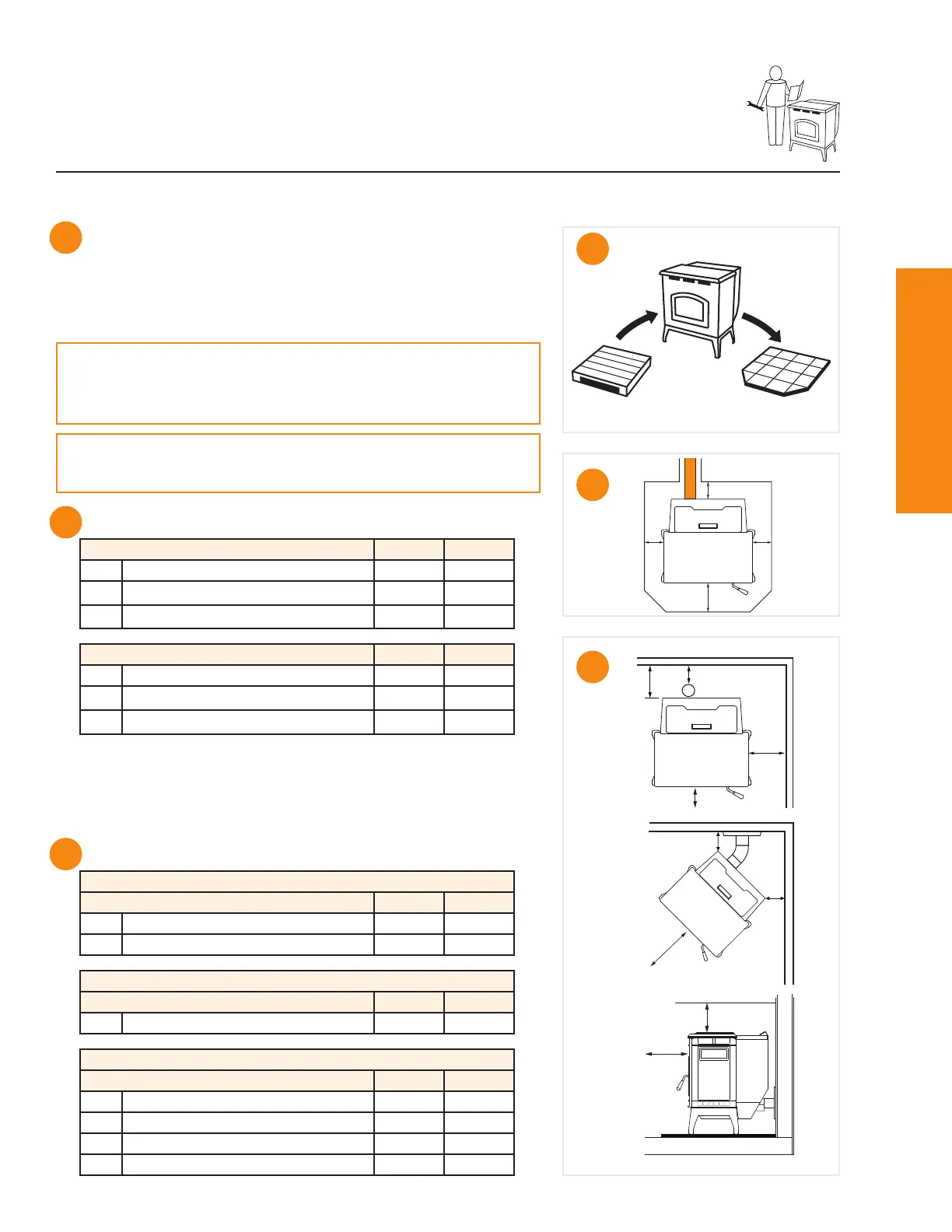

Installing Your Stove
Installing Your Stove
Conrm required clearances to combustibles:
Notice: Be careful to protect the bottom of the stove
and oor surfaces when moving the stove. Bottom
edges of stove are sharp and can scratch surfaces.
1
1
2
3
Vertical Installations (Interior Flue)
Straight back against wall Inches mm
D Back wall to pellet pipe 3 76
E Side wall to stove 13 330
USA Hearth Pad Requirements Inches mm
A Sides 2 51
B Back 2 51
C Front 6 152
Horizontal Installations
Straight back against wall Inches mm
G Back wall to stove 2 51
E Side wall to stove 13 330
H Clearance to top of stove 7 178
J Clearance to front of stove 48 1219
Corner Installation
Straight back against wall Inches mm
F Walls to stove 3 76
2
B*
A
C
A
Placing Your Stove
Stove must be installed on a non-combustible oor.
If needed, place oor protection (such as a hearth
pad) beneath the stove. Move stove from pallet onto
your non-combustible surface. Do not operate the
stove while it sits on the pallet.
Hearth pad minimum requirements:
Notice: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction.
Non-combustible oor protection extending beneath the ue pipe is required
with horizontal venting or under the top vent adapter with vertical installation.
*Non-combustible oor protection must extend 2 inches (51mm) beneath the
ue pipe when installed horizontal venting or under the top vent adapter with
vertical installation. CANADA REQUIRED, USA RECOMMENDED.
3
G
E
D
J
F
F
J
H
J
Canada Hearth Pad Requirements Inches mm
A Sides 8 203
B Back 2 51
C Front 6 152
