PelPro Cast Pellet Stove • 7093-600 • 07/13/16 pelprostoves.com10

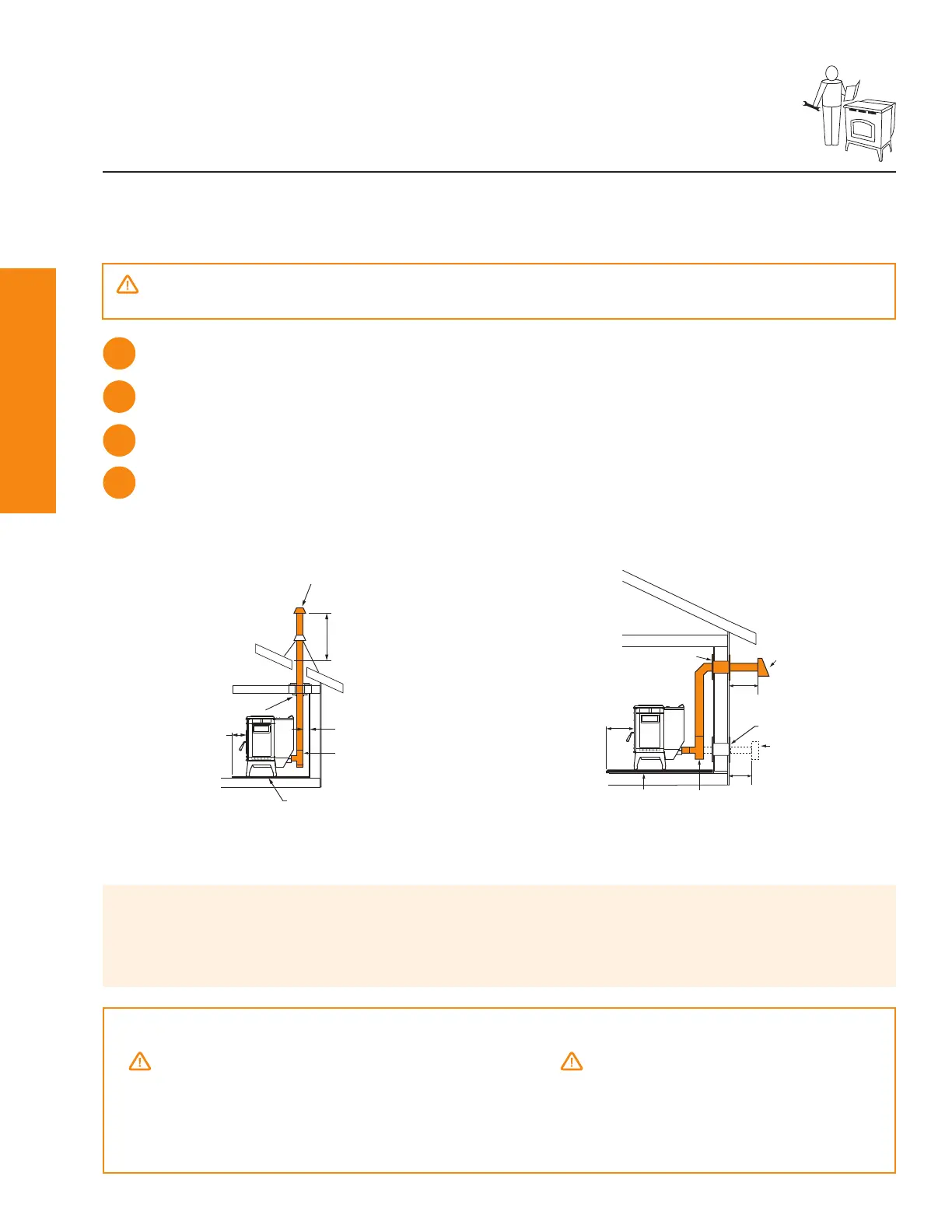

Installing Your Stove
Installing Your Stove
Pro Tips
• See venting manufacturer’s required clearances to combustibles
• For horizontal installations, the minimum clearance from exterior to termination cap is 6”—you
may want to increase to 18” clearance to minimize soot blow back on home exterior.
Install venting. (For additional installation options visit pelprostoves.com)
3
Install wall thimble (sold separately) per manufacturer requirements.
2
Vertical - Interior, Preferred Installation
6 in.
(152mm)
Min.
Clean-out T
Firestop
Flashing
Rain Cap
Non-combustible Hearth Pad
12 in. (305mm) Minimum
Ceiling Support
Follow pipe manufacturer
listed clearance
Exterior - Optional Installations
Non-combustible
Hearth Pad
Wall Thimble
Horizontal
Termination Cap
Termination
Cap
6 in. (152 mm)
Minimum
6 in.
(152 mm)
Minimum
Clean Out T
Wall Thimble
6 in.
(152 mm)
Minimum
Venting Your Stove
CAUTION!
Take appropriate precautions to locate utilities within the wall and avoid contact.
WARNING!
Do not terminate venting in any enclosed or semi-enclosed area
such as: a carport, garage, attic, crawl space, under a sun deck
or porch, narrow walkway or closely fenced area, or any location
that can build up a concentration of fumes such as a stairwell,
covered breezeway, etc.
CAUTION!
Ensure that your stove venting terminates above
your stove. The following may occur:
• Your stove appliance will not draft properly
• Smoke may seep in your house
• Excessive sooting
Install vent at clearances specied by the manufacturer
Use silicone to create an effective vapor barrier at the location where the chimney or
other component penetrates to the exterior of the structure.
4
NOTE: In Canada when using a factory-built chimney it must be safety listed, Type UL103 HT (2100
o
F) CLASS “A” or
conforming to CAN/ULC-S629M, STANDARD FOR 650
o
C FACTORY-BUILT CHIMNEYS.
Mark and cut wall for venting penetration on exterior wall (if needed).
1
