Cyclone Universal & Cyclone Universal FX - User Manual 21
Cyclone’s debug header connects the external power supply from the Power IN jack to the
corresponding target.

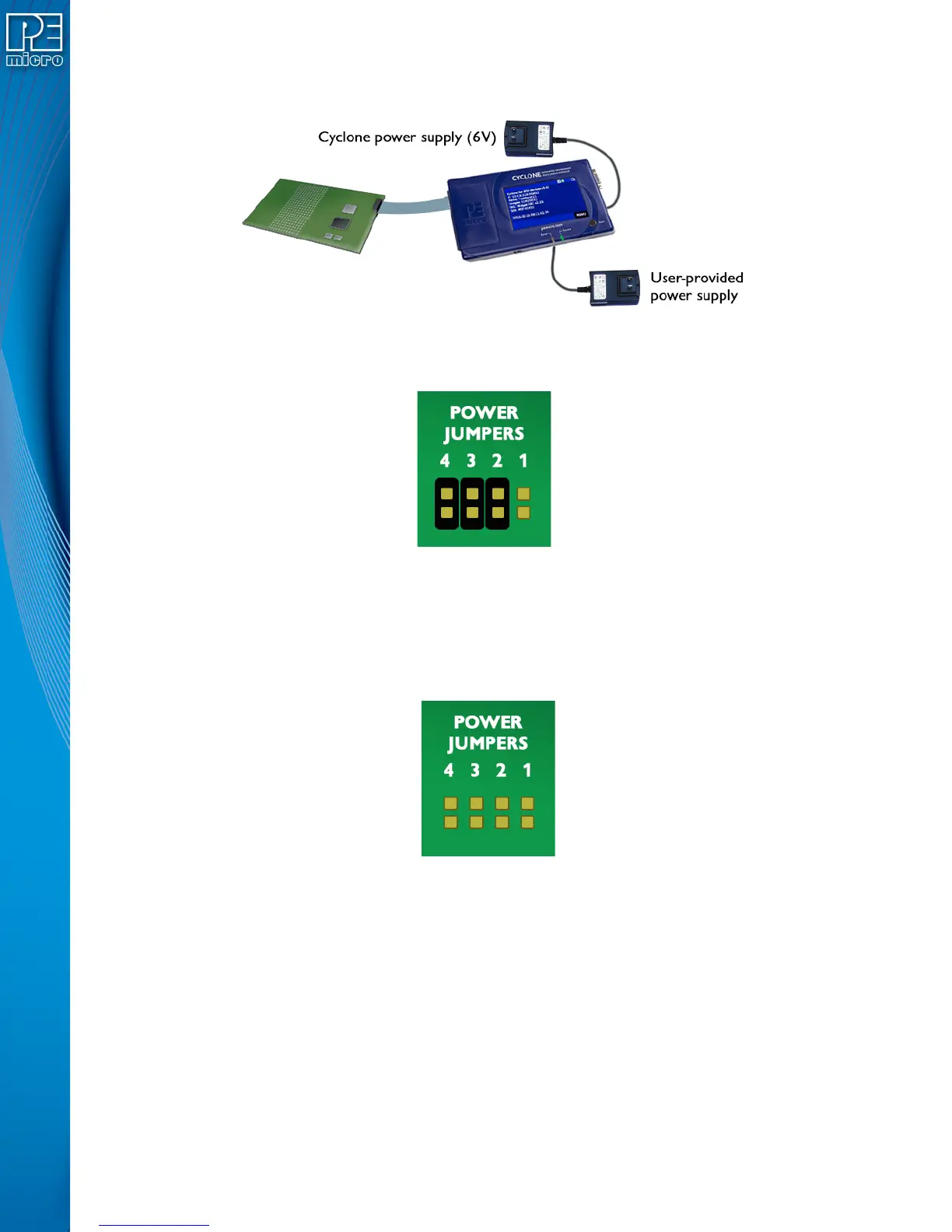

Figure 3-22: Using Power IN Jack And Debug Connector TVCC Pin
Jumpers 4, 3, and 2 are installed, as shown in Figure 3-23.
Figure 3-23: Jumper Settings For Power IN Jack And Debug Connector TVCC Pin
3.28.5 Setting E: Target Powered Independently Of Cyclone
The target device may be powered independently of the Cyclone Universal and Cyclone
Universal FX. No jumpers will be installed in this setup. The user should remove all Power Setting
jumpers on the Cyclone if they elect to provide a separate power source for the target.
Figure 3-24: Target Powered Independently Of Cyclone (No Jumpers Set)
