Penlon Prima SP2 - Page 12

6

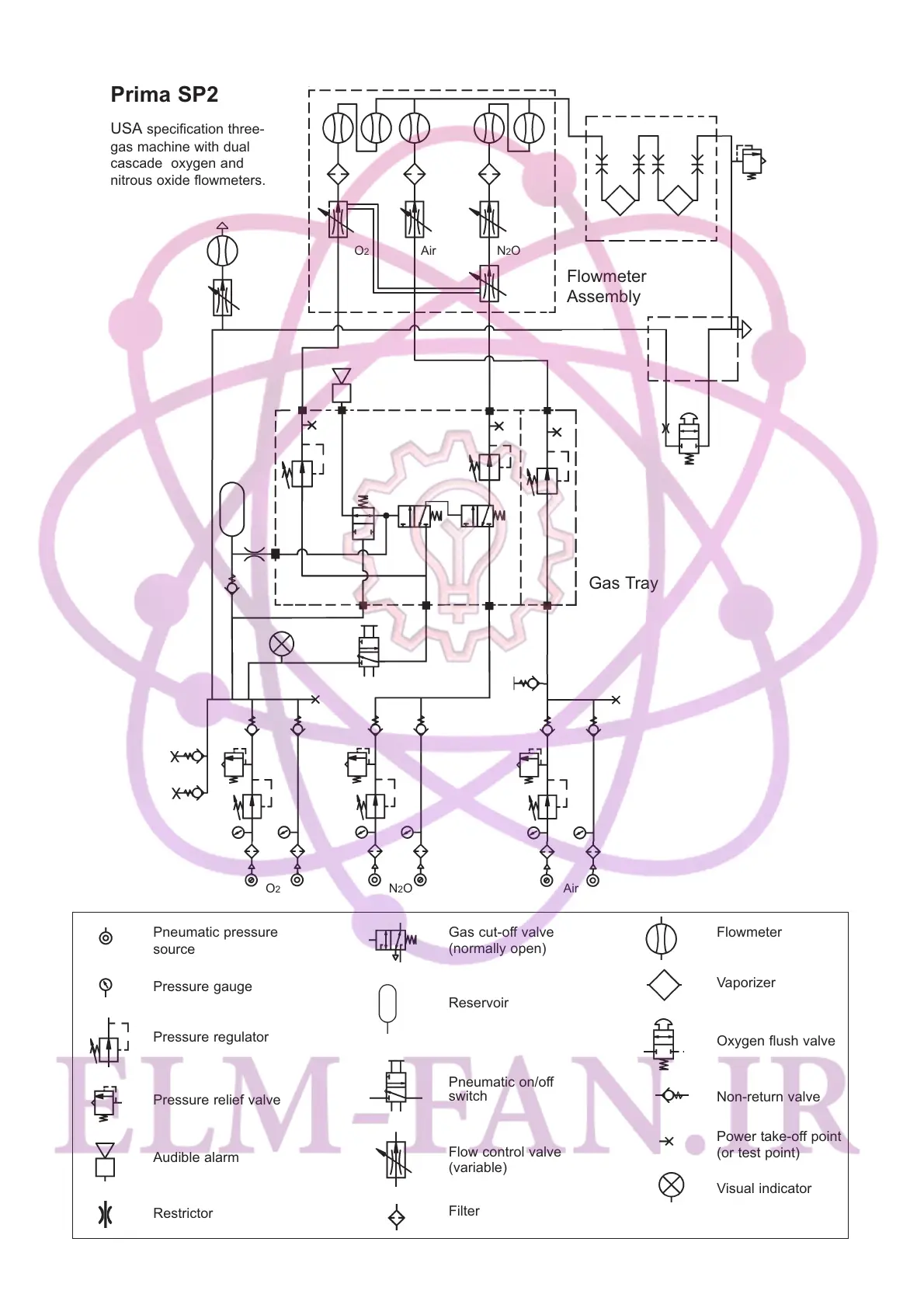

Prima SP2
USA specification three-
gas machine with dual
cascade oxygen and
nitrous oxide flowmeters.
O2 N2O Air
O
2 Air N2O
Gas Tray
Flowmeter
Assembly
Pneumatic pressure
source
Pressure gauge
Pressure regulator
Pressure relief valve
Audible alarm
Restrictor
Gas cut-off valve
(normally open)
Reservoir
Pneumatic on/off
switch
Flow control valve
(variable)
Filter
Flowmeter
Vaporizer
Oxygen flush valve
Non-return valve
Power take-off point
(or test point)
Visual indicator
