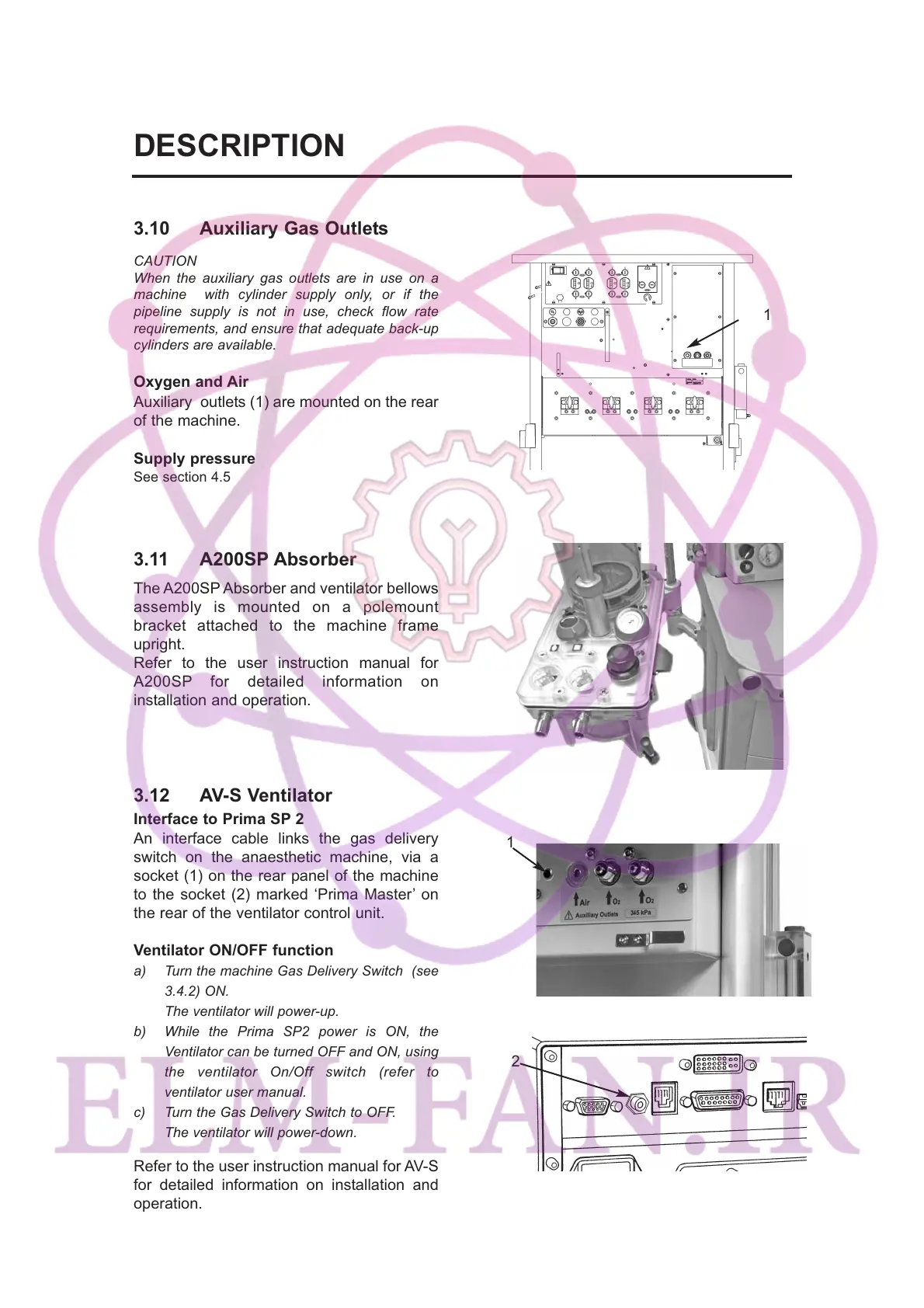

3.10 Auxiliary Gas Outlets
CAUTION
When the auxiliary gas outlets are in use on a
machine with cylinder supply only, or if the
pipeline supply is not in use, check flow rate
requirements, and ensure that adequate back-up
cylinders are available.
Oxygen and Air
Auxiliary outlets (1) are mounted on the rear
of the machine.
Supply pressure
See section 4.5
3.11 A200SP Absorber
The A200SP Absorber and ventilator bellows
assembly is mounted on a polemount
bracket attached to the machine frame
upright.
Refer to the user instruction manual for
A200SP for detailed information on
installation and operation.
3.12 AV-S Ventilator
Interface to Prima SP 2
An interface cable links the gas delivery
switch on the anaesthetic machine, via a
socket (1) on the rear panel of the machine
to the socket (2) marked ‘Prima Master’ on
the rear of the ventilator control unit.
Ventilator ON/OFF function
a) Turn the machine Gas Delivery Switch (see
3.4.2) ON.
The ventilator will power-up.
b) While the Prima SP2 power is ON, the
Ventilator can be turned OFF and ON, using
the ventilator On/Off switch (refer to
ventilator user manual.
c) Turn the Gas Delivery Switch to OFF.
The ventilator will power-down.
Refer to the user instruction manual for AV-S
for detailed information on installation and
operation.
13
DESCRIPTION
