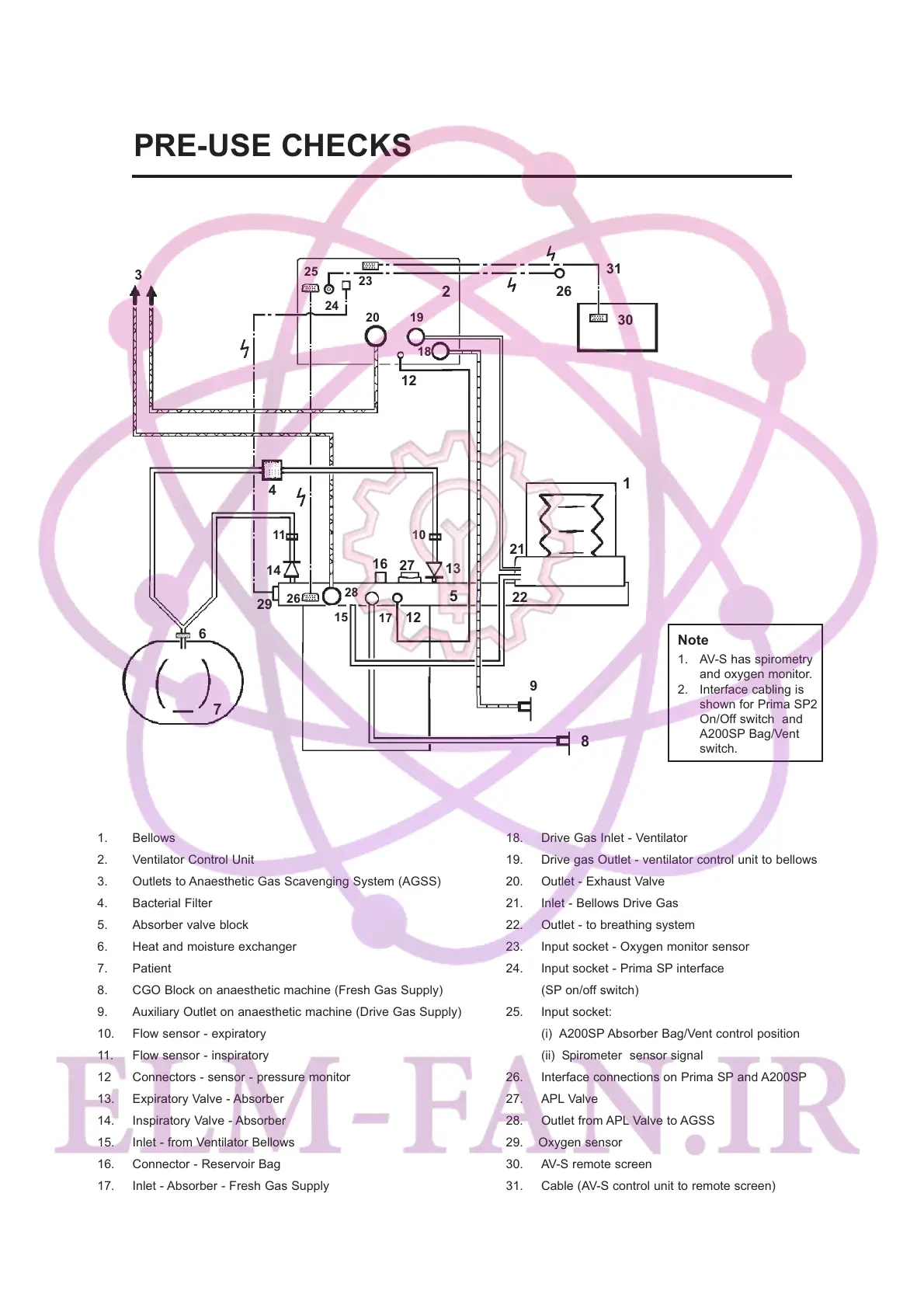

PRE-USE CHECKS
26
Note
1. AV-S has spirometry
and oxygen monitor.
2. Interface cabling is
shown for Prima SP2
On/Off switch and
A200SP Bag/Vent
switch.
1
2
3
6
7
8
12
13
16
14
26
17
15
12
19
18
20
24
25
23
28
27
29
31
30
26
21
22
9
1011
4
5
1. Bellows
2. Ventilator Control Unit
3. Outlets to Anaesthetic Gas Scavenging System (AGSS)
4. Bacterial Filter
5. Absorber valve block
6. Heat and moisture exchanger
7. Patient
8. CGO Block on anaesthetic machine (Fresh Gas Supply)
9. Auxiliary Outlet on anaesthetic machine (Drive Gas Supply)
10. Flow sensor - expiratory
11. Flow sensor - inspiratory
12 Connectors - sensor - pressure monitor
13. Expiratory Valve - Absorber
14. Inspiratory Valve - Absorber
15. Inlet - from Ventilator Bellows
16. Connector - Reservoir Bag
17. Inlet - Absorber - Fresh Gas Supply
18. Drive Gas Inlet - Ventilator
19. Drive gas Outlet - ventilator control unit to bellows
20. Outlet - Exhaust Valve
21. Inlet - Bellows Drive Gas
22. Outlet - to breathing system
23. Input socket - Oxygen monitor sensor
24. Input socket - Prima SP interface
(SP on/off switch)
25. Input socket:
(i) A200SP Absorber Bag/Vent control position
(ii) Spirometer sensor signal
26. Interface connections on Prima SP and A200SP
27. APL Valve
28. Outlet from APL Valve to AGSS
29. Oxygen sensor
30. AV-S remote screen
31. Cable (AV-S control unit to remote screen)
