Pentair 5P2R - 10. Technical Data 5 P2 R; S5 P2 R

300
2“ BSP
outlet
368
338
212
435
128
166
274
361
300
2“ BSP
inlet
178
229
286
23
max. 670

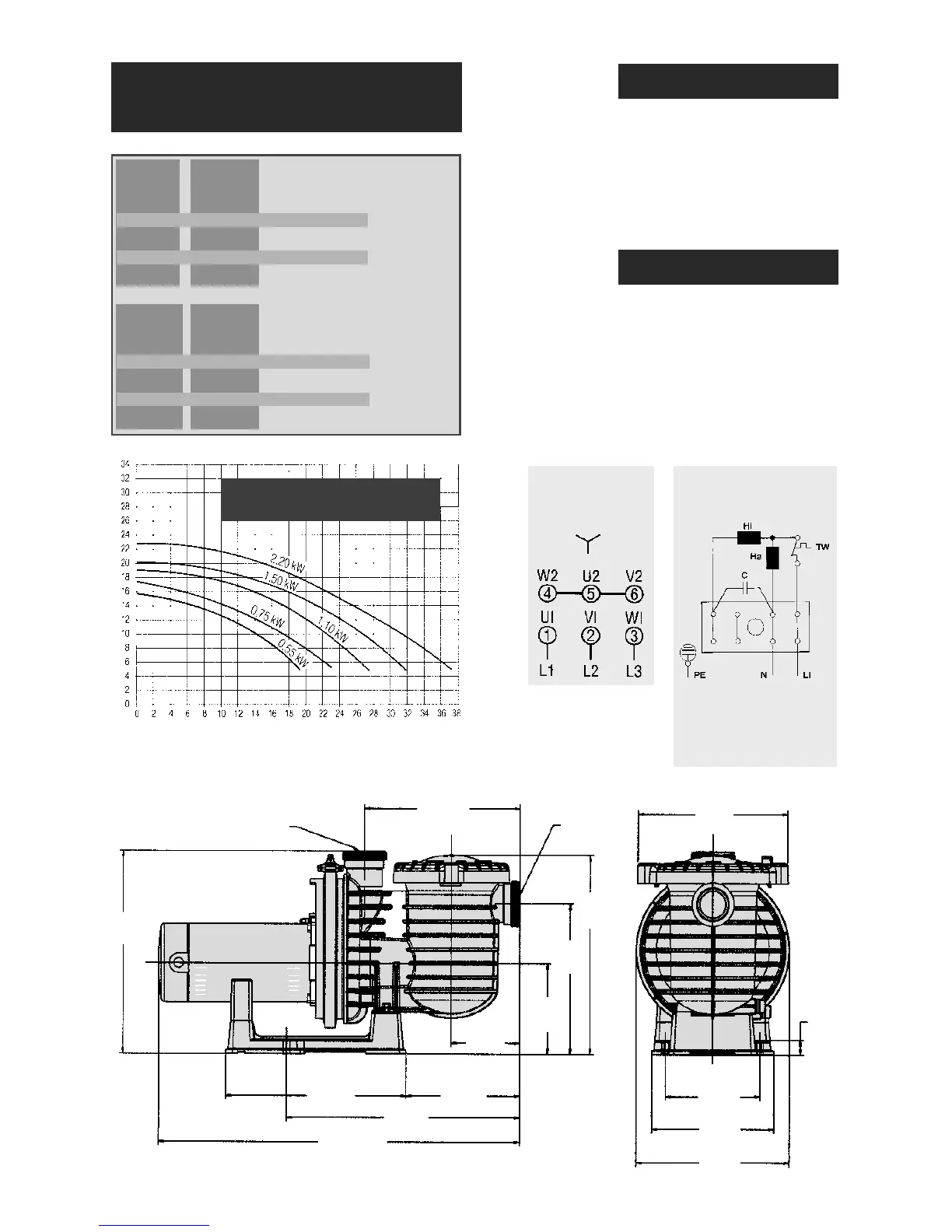

12. Technical data
5P6R / SW5P6R
> 26 <
Capacity cubic meters per hour 
Total Head in meters 
5P6R - SW5P6R
/ 50 Hz
5P6R SW5P6R P1 P2 Motor
5P6RD-1 SW5P6RD-1 960 W 550 W 220-240 V
5P6RE-1 SW5P6RE-1 1310 W 750 W 220-240 V
5P6RF-1 SW5P6RF-1 1650 W 1100 W 220-240 V
5P6RG-1 SW5P6RG-1 1960 W 1500 W 220-240 V
5P6RH-1 SW5P6RH-1 2900 W 2200 W 220-240 V
5P6R SW5P6R P1 P2 Motor
5P6RD-3 SW5P6RD-3 960 W 550 W 380-420 V
5P6RE-3 SW5P6RE-3 1200 W 750 W 380-420 V
5P6RF-3 SW5P6RF-3 1630 W 1100 W 380-420 V
5P6RG-3 SW5P6RG-3 2000 W 1500 W 380-420 V
5P6RH-3 SW5P6RH-3 2470 W 2200 W 380-420 V
5P6R
 Max. ambient temperature: . . . . .50°C
 Max. water temperature: . . . . . . .52°C
 pH-range: . . . . . . . . . . . . . . . . . . . . . .4-9
 Protection type: . . . . . . . . . . . . . . .IPX5
 Insulation class: . . . . . . . . . . . . . . . . . .F
 Revolutions (rpm): . . . . . .approx. 2850
 Max. noise level: . . . . . . . . . .80 dB(A)
SW5P6R
 Max. salt content in water: . . . . . .4%
 Max. ambient temperature: . . . . .50°C
 Max. water temperature: . . . . . . .42°C
 pH-range: . . . . . . . . . . . . . . . . . . . . . .4-9
 Protection type: . . . . . . . . . . . . . . .IPX5
 Insulation class: . . . . . . . . . . . . . . . . . .F
 Revolutions (rpm): . . . . . .approx. 2850
 Max. noise level: . . . . . . . . . .80 dB(A)
Wiring diagram
380-420 V / 50 Hz
3 x 400V
Ha – Main phase
Hi – Auxiliary phase
TW – Thermostatic protection
switch
C – Condenser
Wiring diagram
220-240 V / 50 Hz
See also Page 18,
Point 2.3.2
