10. Hold motor shaft with 7/16” open end wrench
on shaft flats and screw impeller onto shaft. Be
sure you do not touch capacitor terminals with
body or any metal object. Tightening impeller will
automatically locate seal in correct position.
11. Replace impeller screw (if used) by turning
counterclockwise (left-hand thread) into end of
shaft.
12. Remount diffuser on seal plate with two screws.
13. Follow instructions under “Pump Reassembly”.
PUMP REASSEMBLY
1. Clean gasket surfaces on pump body and seal plate;
install new gasket.
2. Slide motor/seal plate assembly into pump body.
Secure with capscrews.
3. Replace base mounting bolts.
4. Replace motor wiring; close draincock.
5. Prime pump according to instructions.
See “Opera tion.”
6. Check for leaks.
10

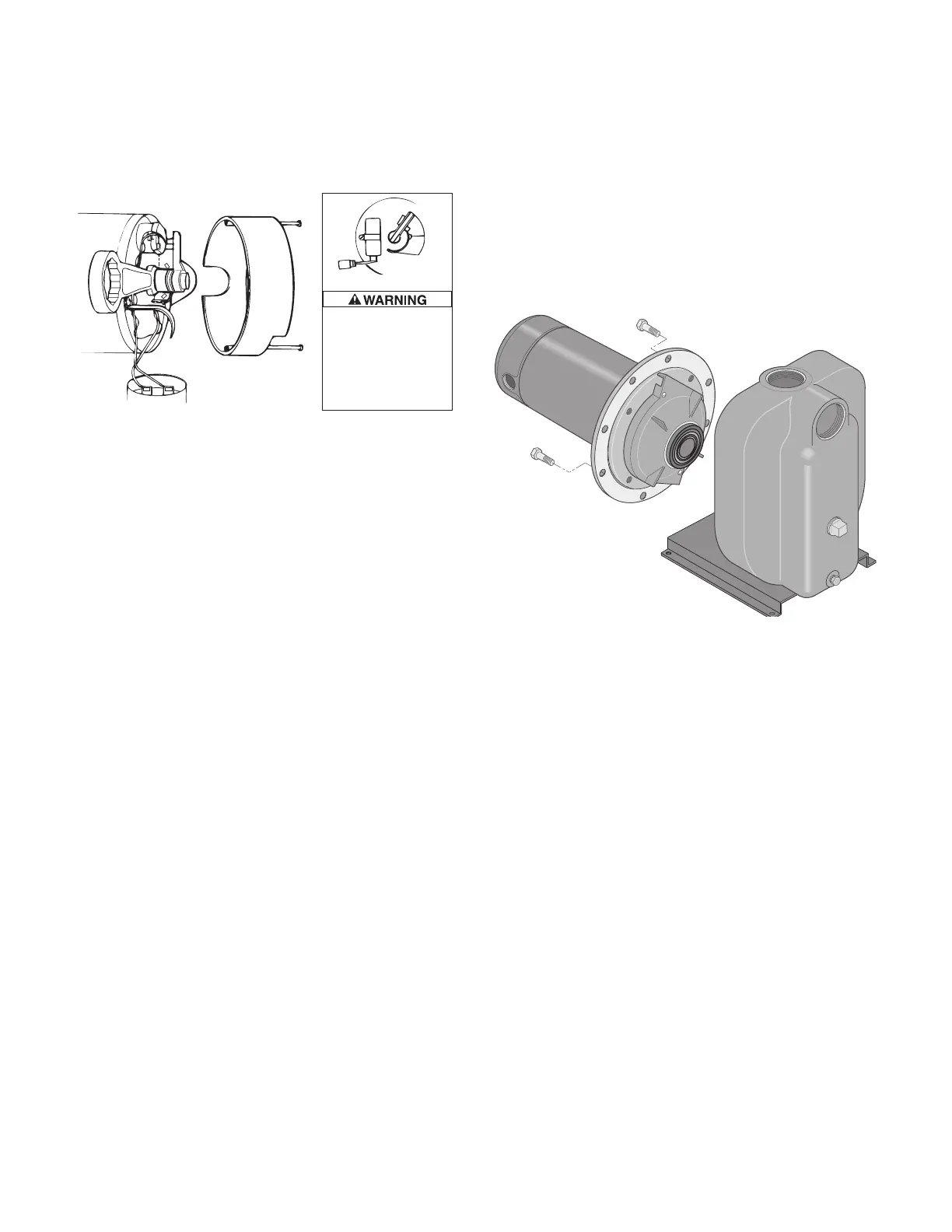

Figure 21 – Hold Shaft
To avoid electrical
shock hazard, use
insulated-handle
screwdriver to short
capacitor terminals
as shown.
Figure 22 – Assemble Pump
