Pentair AERMOTOR SPCA Series User Manual

HORIZONTAL PIPING FROM WELL TO PUMP
1. Never install a suction pipe that is smaller than the
suction port of the pump.
2. To aid priming on well point installations, install
a line check valve as shown in Figure 2. Be sure
check valve flow arrow points toward pump.
DISCHARGE PIPE SIZES
1. If increasing discharge pipe size, install reducer in
pump discharge port. Do not increase pipe size by
stages.
2. When the pump is set away from the points of water
use, the discharge pipe size should be increased to
reduce pressure losses caused by friction.
 •Upto100’run:Samesizeaspumpdischargeport.
 •100’to300’run:Increaseonepipesize.
 •300’to600’run:Increasetwopipesizes.
LAWN SPRINKLING APPLICATION
This pump is designed for lawn sprinkling. It is
de signed to deliver plenty of water at full sprinkler pres-
sure. It can pump from a pond, cistern or well points.
Pump discharge can be divided to supply two (2) or
more sprinkler systems. A suggested multiple dis-
charge to service is shown in Figure 3.
Do not use in a pressure tank or booster pump
application.
Pump/Piping Installation
PUMP INSTALLATION
NOTICE: Use only PTFE pipe thread sealant tape
for making all threaded connections to the pump
itself. Do not use pipe joint compounds on plastic
pumps: they can react with the plastic in the pump
components. Make sure that all pipe joints in the
suction pipe are air tight as well as water tight. If the
suction pipe can suck air, the pump will not be able to
pull water from the well.
1. Bolt pump to solid, level foundation.
2. Support all piping connected to the pump.
4
20
100
80
60
40
1909 0997

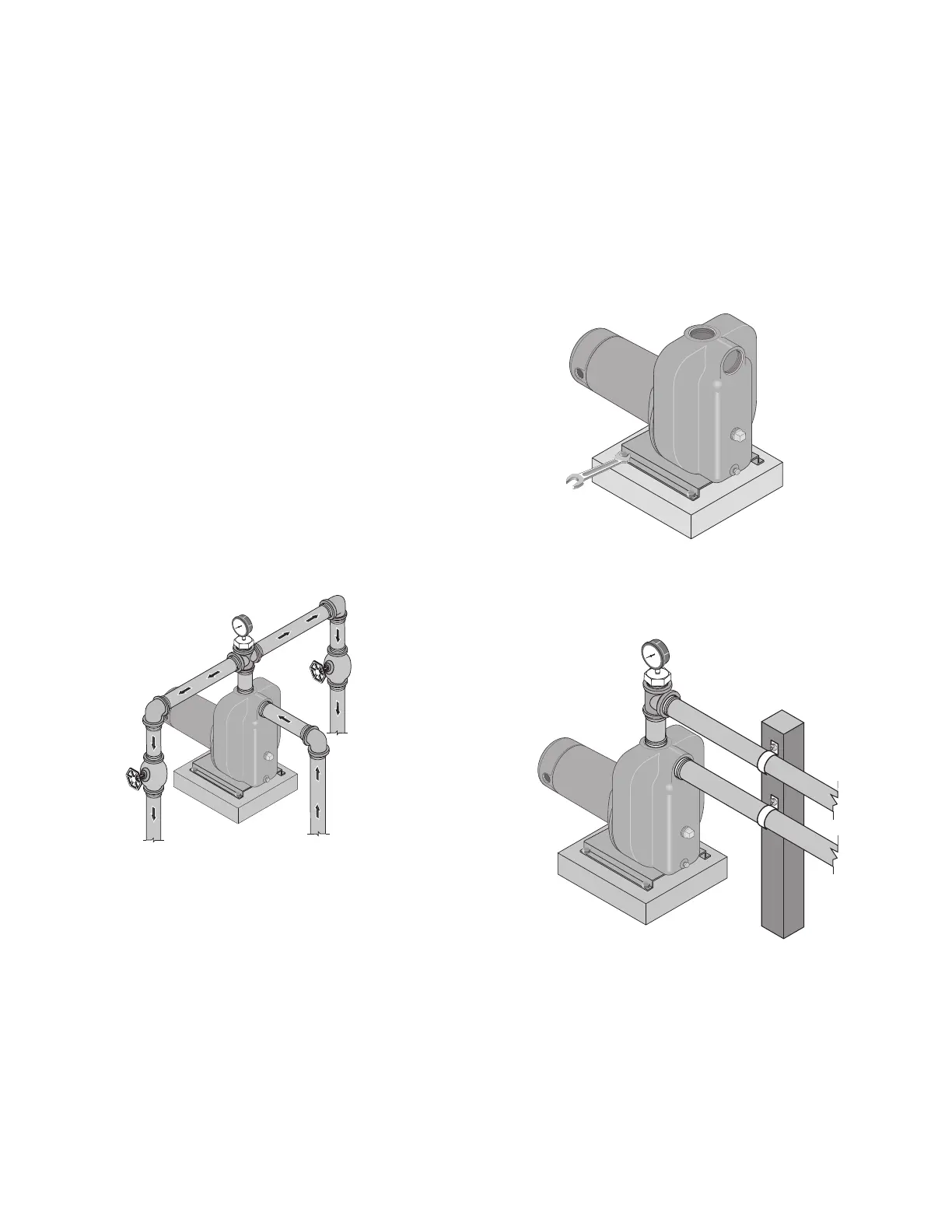

Figure 3 – Multiple Discharge
Figure 4 – Bolt Pump Down
3023 0997
Figure 5 – Independently Support All Piping Attached
to Pump
20
100
80
60
40
3024 0997
