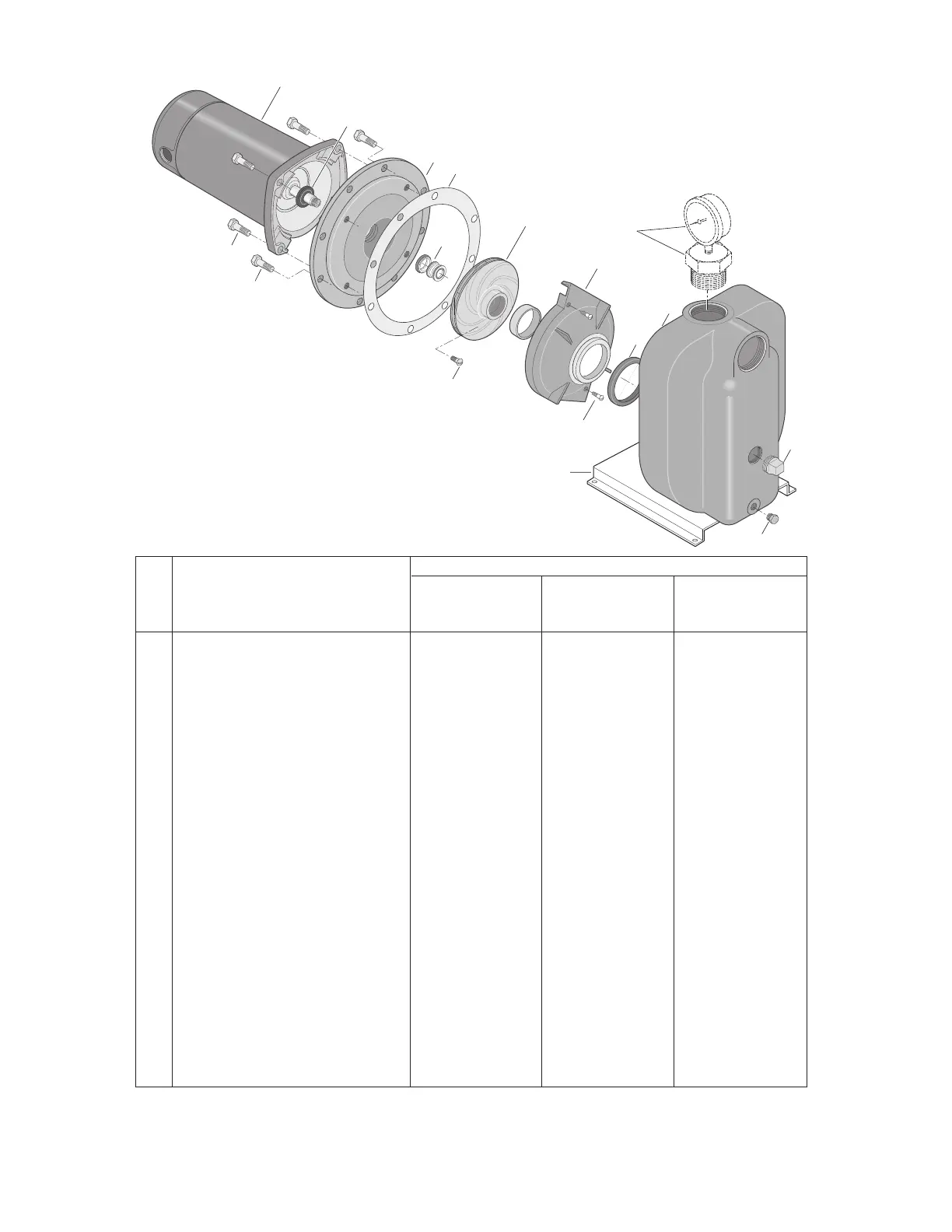

Pentair AERMOTOR SPCA Series User Manual

MODEL NUMBER
SPCA-100 SPCA-150 SPCA-200
Key Part SPCA-3-100 SPCA-3-150 SPCA-3-200
No. Description 1 HP 1-1/2 HP 2 HP
1 Motor, 115/230V, 1 Phase A100ELL A100FLL —
1 Motor, 230V, 1 Phase — — A100GSLL
1 Motor, 230/460V, 3 Phase AP100EL AP100FL AP100GL
2 Water Slinger 17351-0009 17351-0009 17351-0009
3 Seal Plate C3-155 C3-155 C3-117
4 Gasket - Seal Plate C20-86 C20-86 C20-87
5 Shaft Seal U109-6A U109-6A U109-6A
6 Impeller C105-92PKB C105-92PCB C105-214PDA
6A Impeller Screw (1 Phase) — — C30-14SS
6A Impeller Screw (3 Phase) C30-14SS C30-14SS C30-14SS
7 Diffuser C101-276P C101-276P C101-182
7B Screw 1/4-20 x1” Lg.(2) U30-696SS U30-696SS —
7B Machine screw 8-32x7/8” Lg. (2) — — U30-53SS
8 Diffuser Ring C21-10 C21-10 C21-2
9 Pump Body Assembly C176-49B C176-49B C76-50
10 Base U4-5 U4-5 U4-5
11 Pipe Plug 3/4” NPT - Sq. Hd. U78-60ZPS U78-60ZPS U78-60ZPS
12 Plug 1/4” NPT Hex. Hd. U78-941ZPV U78-941ZPV U78-941ZPV
13 Capscrew 3/8-16x3/4” Lg (6) † † —
13 Capscrew 5/16-18x3/4” Lg.(8) — — †
14 3/8-16x1” Capscrew (4) U30-74ZP U30-74ZP U30-74ZP
 • Lockwasher3/8” (4) U43-12ZP U43-12ZP —
 • Lockwasher-3/8” (2) U43-12ZP U43-12ZP U43-12ZP
 • Capscrew3/8-16x5/8” Lg (2) U30-71ZP U30-71ZP U30-71ZP
•Notillustrated.
† Purchase locally.
NOTE: Quantity is one unless otherwise noted ( ).
2419A 0496
1
2
3
14
13
7A
7B
10
12
11
5
6
7
8
(Purchase
locally)
6A
4
9
20
100
80
60
40
12
