IntelliFlo Motor Assembly
The IntelliFlo three-phase six-pole motor operates from 3450 RPM to 1100 RPM. The drive assembly is
continually cooled by an external fan. Dual seals on the motor drive shaft and at the fan shaft assembly seal
the entire motor and bearings from any dirt and moisture entering the motor assembly. For added
protection, a slinger located in front of the main motor shaft seal assists in slinging water away from the shaft
opening in the flange.

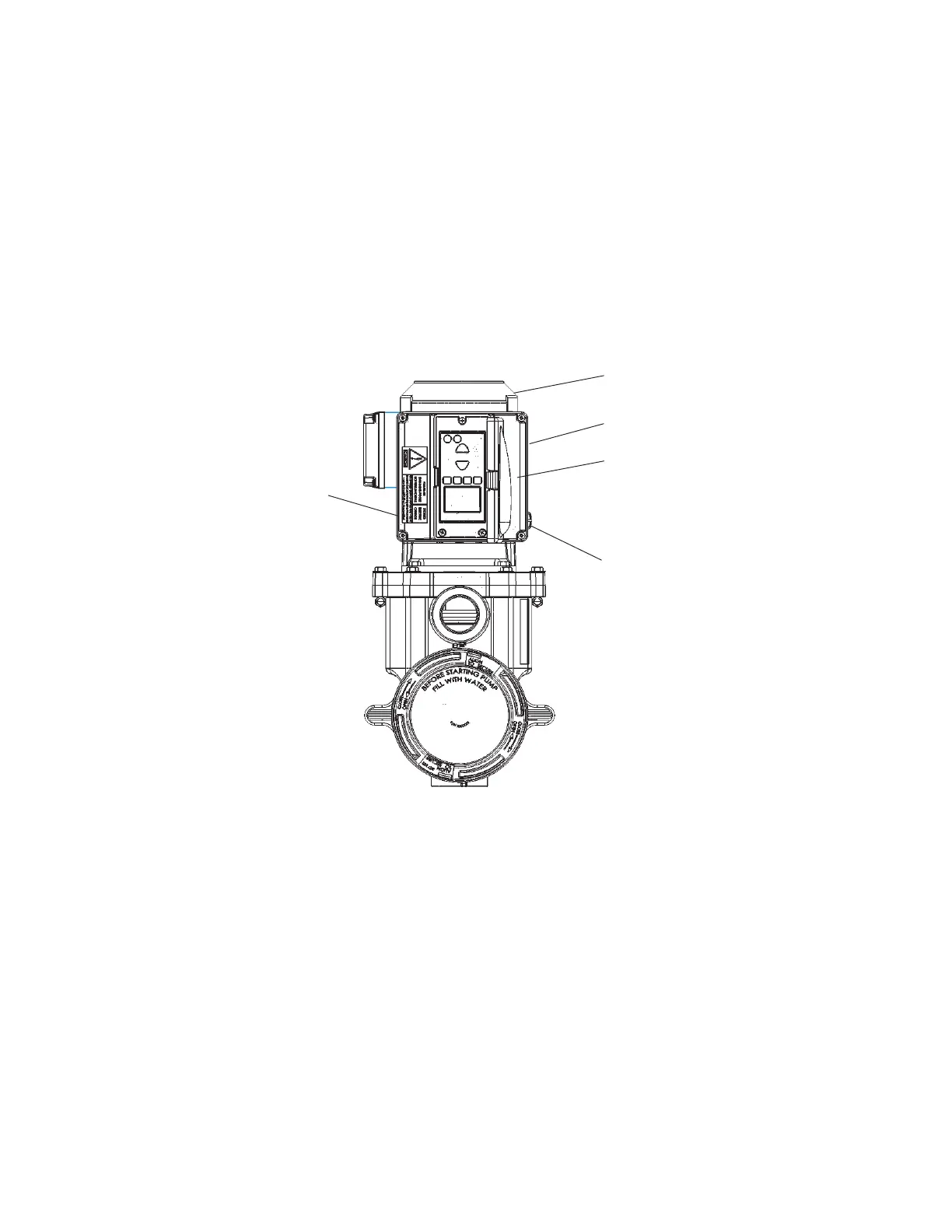

Drive assembly and
electronics enclosure
IntelliFlo Motor Assembly
Motor fan cover
Control panel cover
Communication port for connection
to EasyTouch, IntelliTouch or
SunTouch control system or
IntelliComm communication center
via two-wire RS-485 cable
Motor assembly
