25
IntelliFlo VS+ SVRS Installation and User’s Guide
Connecting IntelliFlo VS to an EasyTouch System
The IntelliFlo VS can be controlled by an EasyTouch system via the RS-485 communication cable
(P/N 350122). In this configuration, EasyTouch starts, stops and controls the speed of the IntelliFlo VS
pump. When the EasyTouch does this, it rewrites the IntelliFlo VS memory, which can take several
seconds. This causes a delay after a command is given on the EasyTouch control panel until the IntelliFlo
VS physically responds.
The IntelliFlo VS control panel is disabled when communicating with the EasyTouch system. Note that
EasyTouch will not start communicating with the IntelliFlo VS until the pump is assigned to a circuit. The
IntelliFlo VS default pump address is one which is the only address that works with EasyTouch. See page
10 for details about how to check the pump address and change if necessary. For more information, refer
to the EasyTouch User's Guide (P/N 520584).
To connect the IntelliFlo VS communication cable to EasyTouch load center:
1. CAUTION - Switch the main power off to the EasyTouch load center.
2. Unlatch the two enclosure door spring latches, and open the door.
3. Remove the two retaining screws securing the high voltage cover panel, and remove it from the
enclosure.
4. Loosen the two access screws securing the control panel.

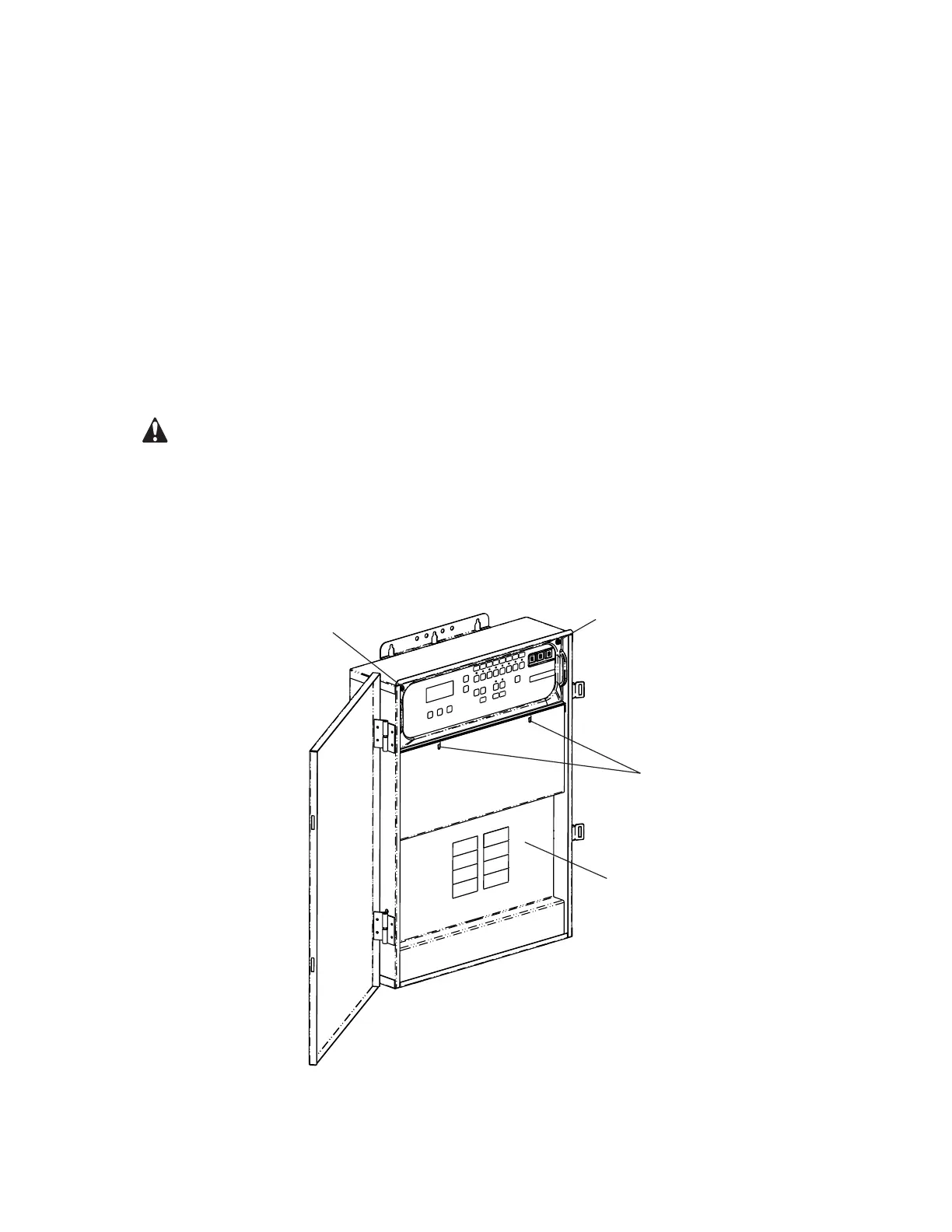

Retaining screw
EasyTouch Load Center (front view)
Control panel
access screw
Control panel
access screw
High voltage
cover panel
To Next Page
