IntelliFlo VS+ SVRS Installation and User’s Guide
IntelliFlo Drive Assembly and Control Panel
The IntelliFlo drive assembly consists of an operator control panel and the system electronics that drive the
motor. The drive microprocessor controls the motor by changing the frequency of the current it receives
together with changing the voltage to control the rotational speed.
IntelliFlo VS Motor Features
• Permanent Magnet Synchronous Motor (PMSM)
• High efficiency
• Superior speed control
• Operates at lower temperatures due to high efficiency
• Same technology as deployed in hybrid electric vehicles
• Designed to withstand outdoor environment
• Totally enclosed fan cooled
• Three-phase motor
• 56 Square Flange
• Six-Pole
• Low noise

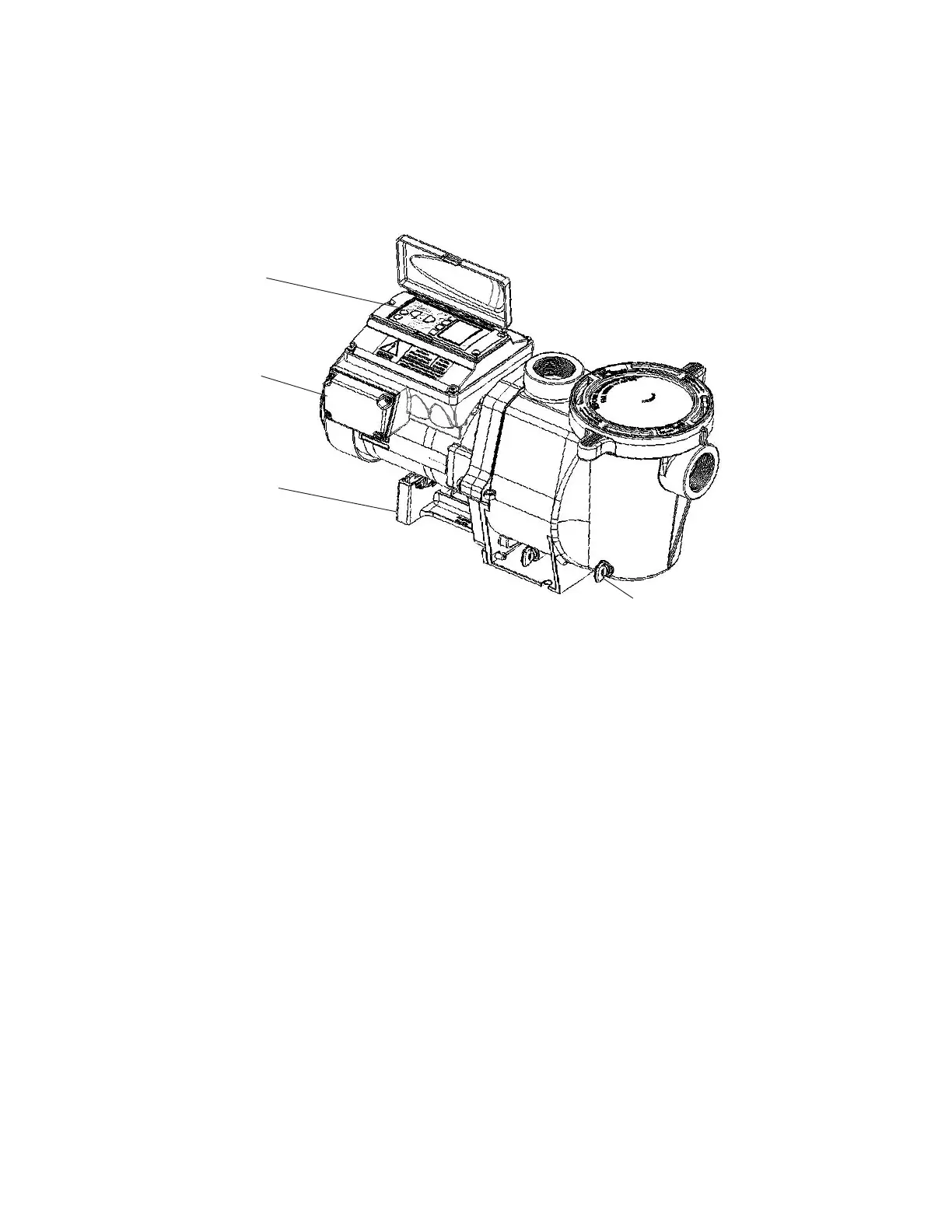

Motor stand
Operator Control Panel,
buttons and LED
(see page 5)
IntelliFlo Drive Assembly
AC power connection
compartment
(see page 32)
Vacuum gauge
installation locations
(see page 35)
