IntelliFlo VS+ SVRS Installation and User’s Guide

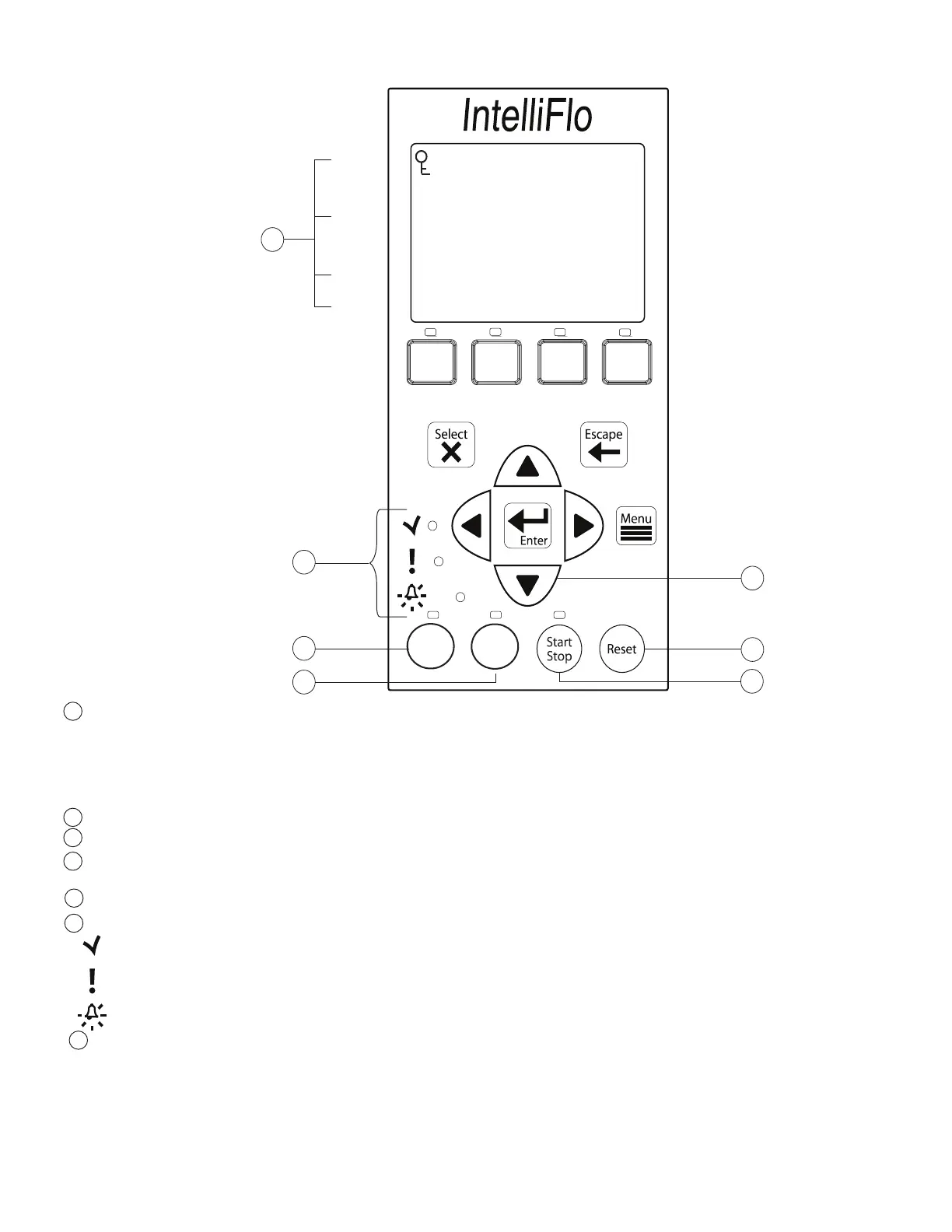

Controls and LEDs (Continued)
Arrow buttons:
• Up arrow: Move one level up in the menu tree or increase a digit when editing a setting.
• Down arrow: Move one level down in the menu tree or decrease a digit when editing a setting.
• Left arrow: Move cursor left one digit when editing a setting.
• Right arrow: Move cursor right one digit when editing a setting.
Quick Clean: Duration and speed (RPM) can be preset to save energy. The LED is on when active.
Time Out: When active (LED on), at the end of a “Time Out” preset time, the pump will run a schedule.
Start/Stop button: Start or Stop the pump. When the LED is on, the pump is currently running or in a
mode to start automatically.
Reset button: Reset alarm or alert.
LEDs
On: This green, power LED is on when IntelliFlo VS is powered on.
Warning: LED is on if a warning condition is present.
Alarm: The green LED is on if an alarm condition occurs. See “Alerts and Warning” on page 39.
Control Panel LCD:
• Line 1 - Key icon indicates password protect mode is active. If password protect is not enabled, no key icon
is displayed. SVRS indicates pump is in SVRS protect mode. If SVRS is not displayed, SVRS is
not active. System time is displayed on the right side of top line.
• Line 2 - Displays the current pump speed (RPM).
• Line 3 - Count down time and Watts
• Line 4 - Current pump status.
FILTER 12:15
15.W
15.W
POWER
RUNNING
10
11
15
14
9
13
12
Line 1
Line 2
Line 3
Line 4
®
9
10
11
12
13
15
Speed
1
Speed
2
Speed
3
Speed
4
Quick
Clean
Time
Out
15.W
14
1100 RPM
T 0.00
Running Speed 1
SVRS
150 WATTS
