IntelliFlo VS+ SVRS Installation and User’s Guide

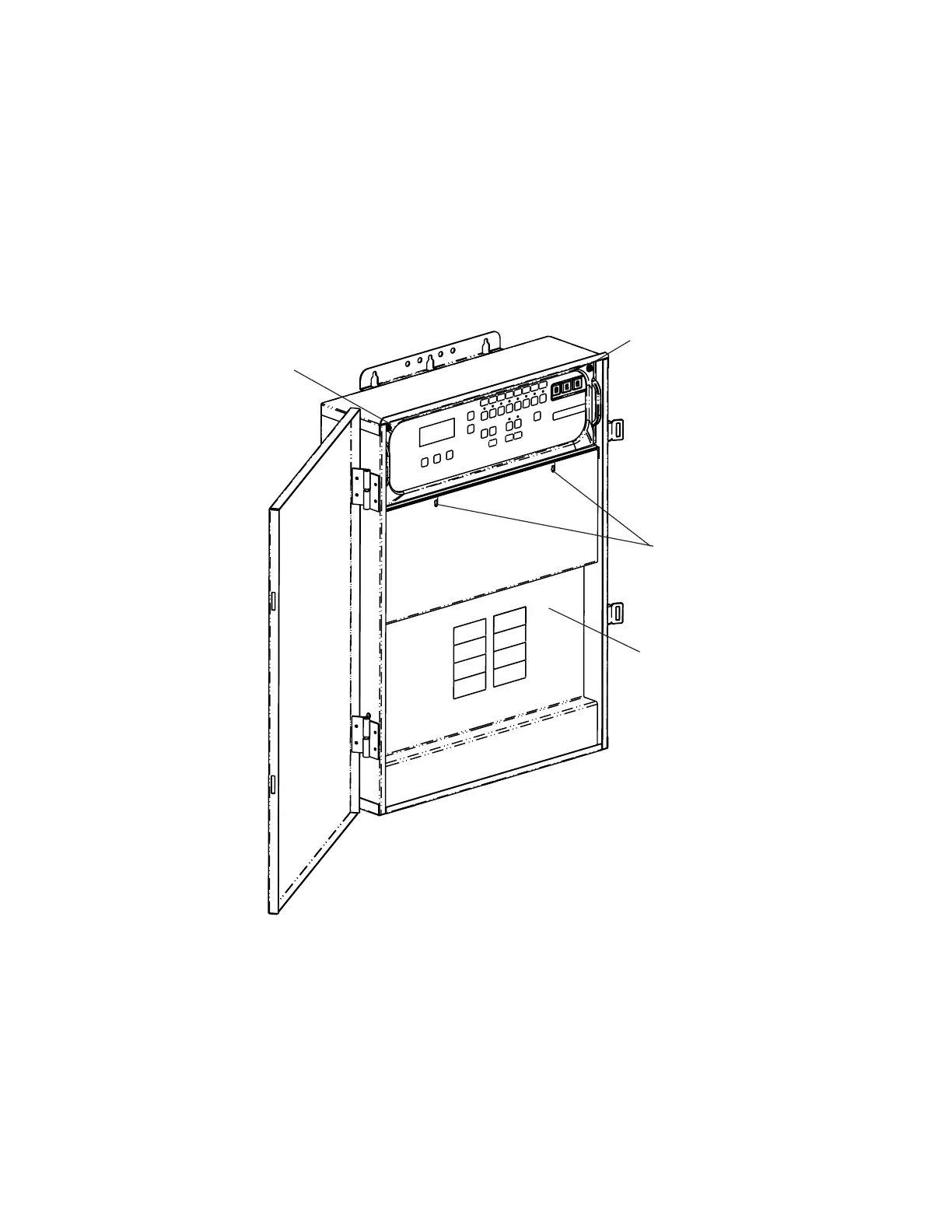

EasyTouch Load Center (front view)
Control panel
access screw
Control panel
access screw
High voltage
cover panel
Retaining screw
10. Close the control panel into its original position and secure it with the two access screws.
11. Install the high voltage cover panel and secure it with the two retaining screws.
12. Close the EasyTouch load center front door. Fasten the two spring latches.
13. Switch the power on to the EasyTouch load center.
