INTELLIPH
®
ACID DISPENSER Installation and User’s Guide
8
IntellipH
®
Controller Installation
The IntellipH
®
Controller is installed “in series” with the IntelliChlor
®
SCG. The
IntelliChlor
®
SCG cell cord plugs into the IntellipH Controller and the IntellipH
Controller plugs into the IntelliChlor
Power Center, EasyTouch
®
or IntelliTouch
®
Control
Systems Load Center power connector.
To install the IntellipH Controller:
1. Choose a location on a wall or vertical surface near the IntelliChlor SCG
power center (P/N 520556) and/or the EasyTouch and IntelliTouch Control
System Load Center. Secure the IntellipH Controller to the surface with the
three screws.
2. WARNING! SWITCH OFF or REMOVE POWER to the IntelliChlor SCG.
3. Remove the IntelliChlor SCG cell cord from the power center, EasyTouch
or IntelliTouch Control System Load Center. Insert the IntelliChlor SCG cell
cord plug into the bottom of the IntellipH Controller.
4. Plug the IntellipH Controller cord into the IntelliChlor SCG Power Center,
IntelliTouch or EasyTouch Control System load center where the IntelliChlor
SCG cell originally was plugged in.

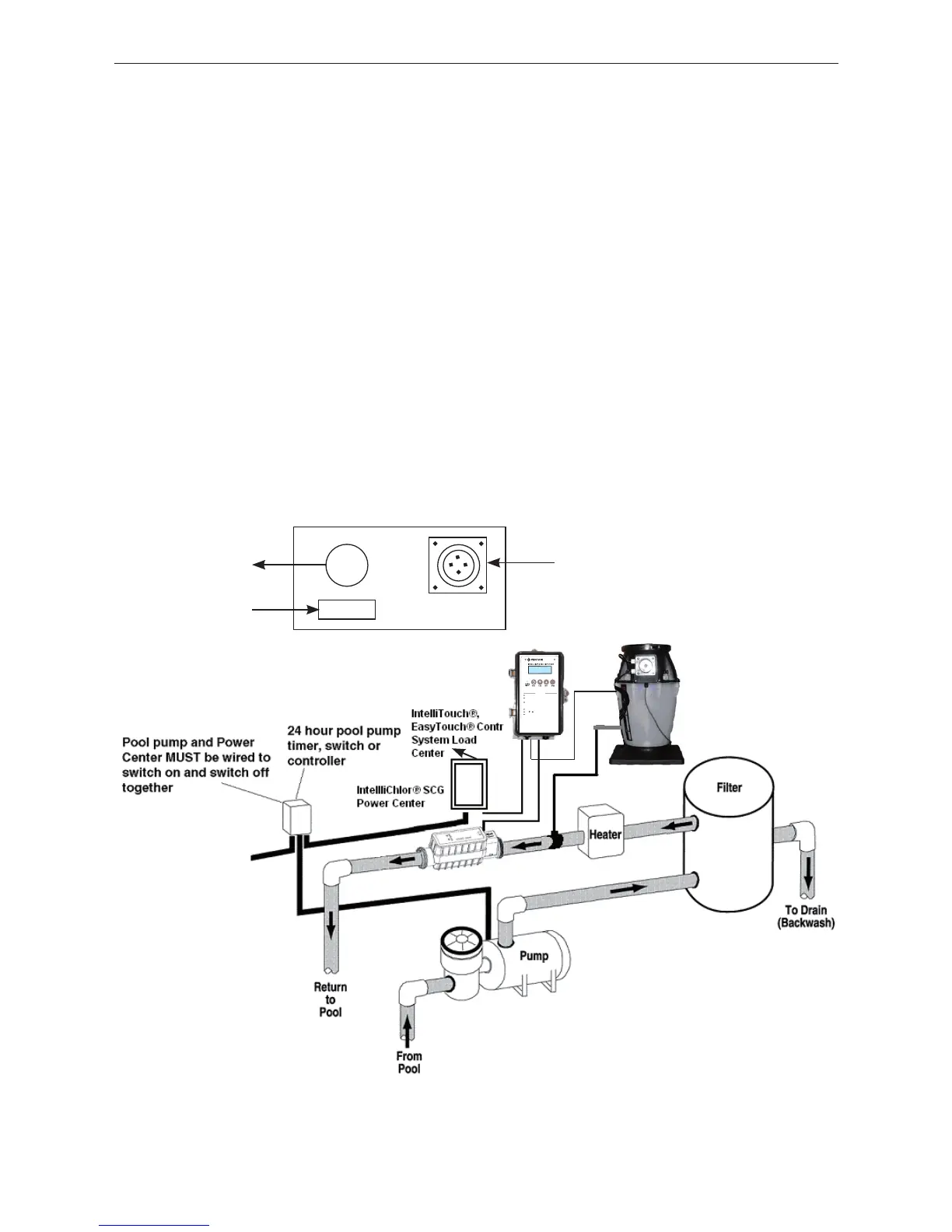

IntellipH
®
Controller Installation Diagram
IntellipH
®
Controller
Enclosure (bottom view)
Attach cable from
IntelliChlor
®
SCG
IntelliTouch
®
,
EasyTouch
®
Load
Center or
IntellipH
®
Power Center
Attach cable
from IntellipH
®
Canister
IntellipH
®
Canister
ylkeewHpkcehC .
T otnottubEROMsserp,Hplooprewolo
TNUOMAESNEPSIDesaercni .
T otnottubSSELsserp,Hploopesiaro
TNUOMAESNEPSIDesaerced .
UNEM
AREPO TION
esU ro .snoitceleshguorhtllorcsotnottub
.eciohctcelesotRETNEsserP
.snoitcelesyalpsidotUNEMsserP
0.43"
Note: The latest EasyTouch
®
, IntelliTouch
®
Load Center includes a built-in transformer
for the IntelliChlor
®
SCG, and no longer
requires an IntelliChlor
®
Power Center.
