INTELLIPH
®
ACID DISPENSER Installation and User’s Guide
10
1. Pull the lock lever tab 180° from left to right to unlock the cover latch. See Figure 1.
2. Push up on the raised edge of the front cover and slide cover off. See Figure 2.
3. Release the fittings from the slots to remove the tube. See Figure 3.
4. Disconnect the suction and discharge connections from pump head.
5. Remove the roller assembly.
6. Use non-citrus all-purpose cleaner to clean residue from pump head housing,
roller, and cover.
7. Check cover for cracks. Replace if cracked (P/N 522386).
8. Ensure rollers spin freely.
9. Note: if the rollers are seized or visibly worn, replace roller assembly.
10. Re-install roller assembly.

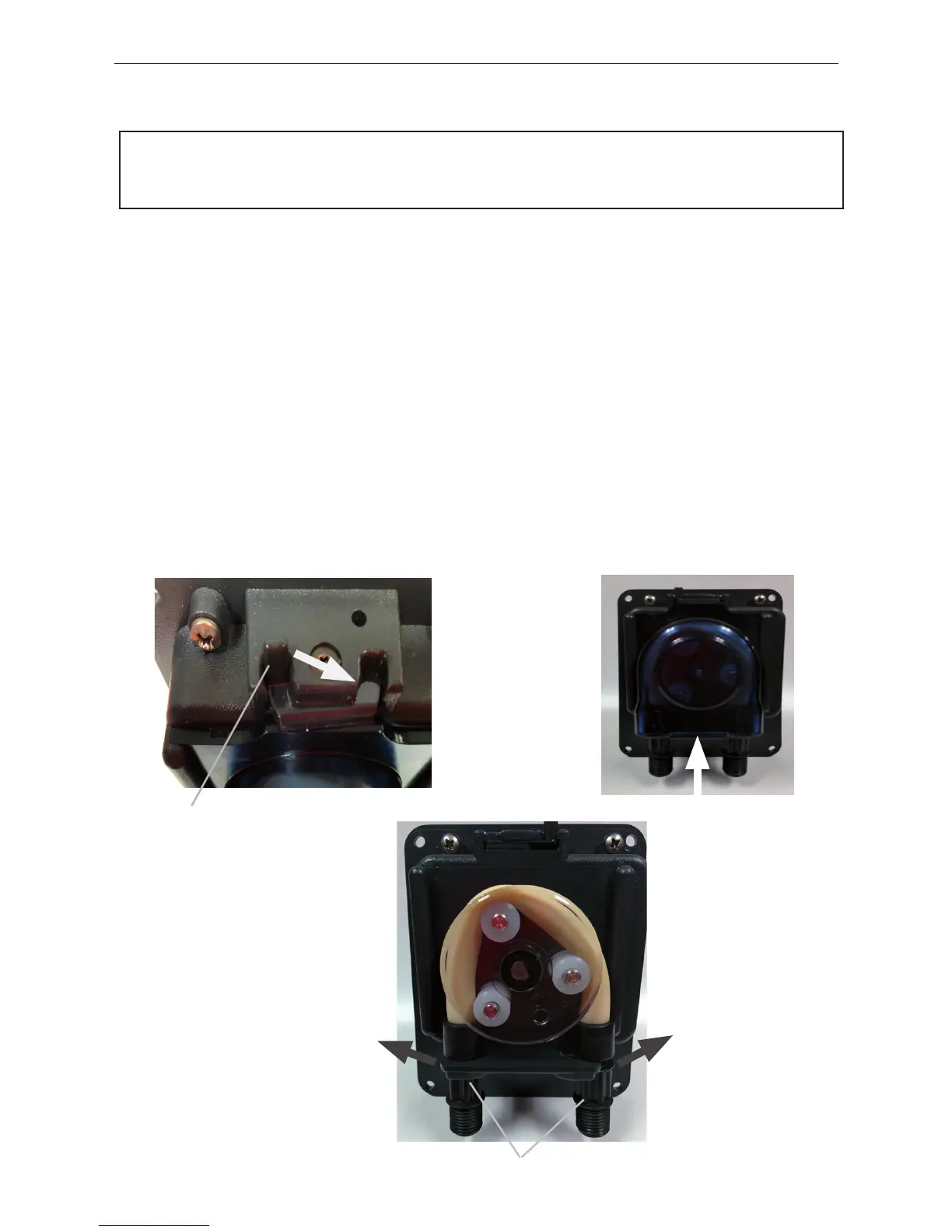

Figure 1.
Figure 2.
Pull lock lever
tab from left
to right side to
unlock
Push up on
raised edge
of cover to
slide cover
off.
Slots
Figure 3.
Discharge
Suction
Slide tube
out of slot
Slide tube
out of slot
Insert tube
into slot
Before starting the tube replacement procedure, read all safety precautions on page i and ii.
Pump Head Tube Replacement Instruction (for units built after 8/2014)
To remove the tube from the pump:
IMPORTANT! Replace the IntellipH pump head tube (P/N 522480) once a season
(yearly). For units built before 8/2014, replace the whole pump head (P/N 521514)
every season.
