Pump Head Tube Replacement Instruction (Continued)
Install the New Tube

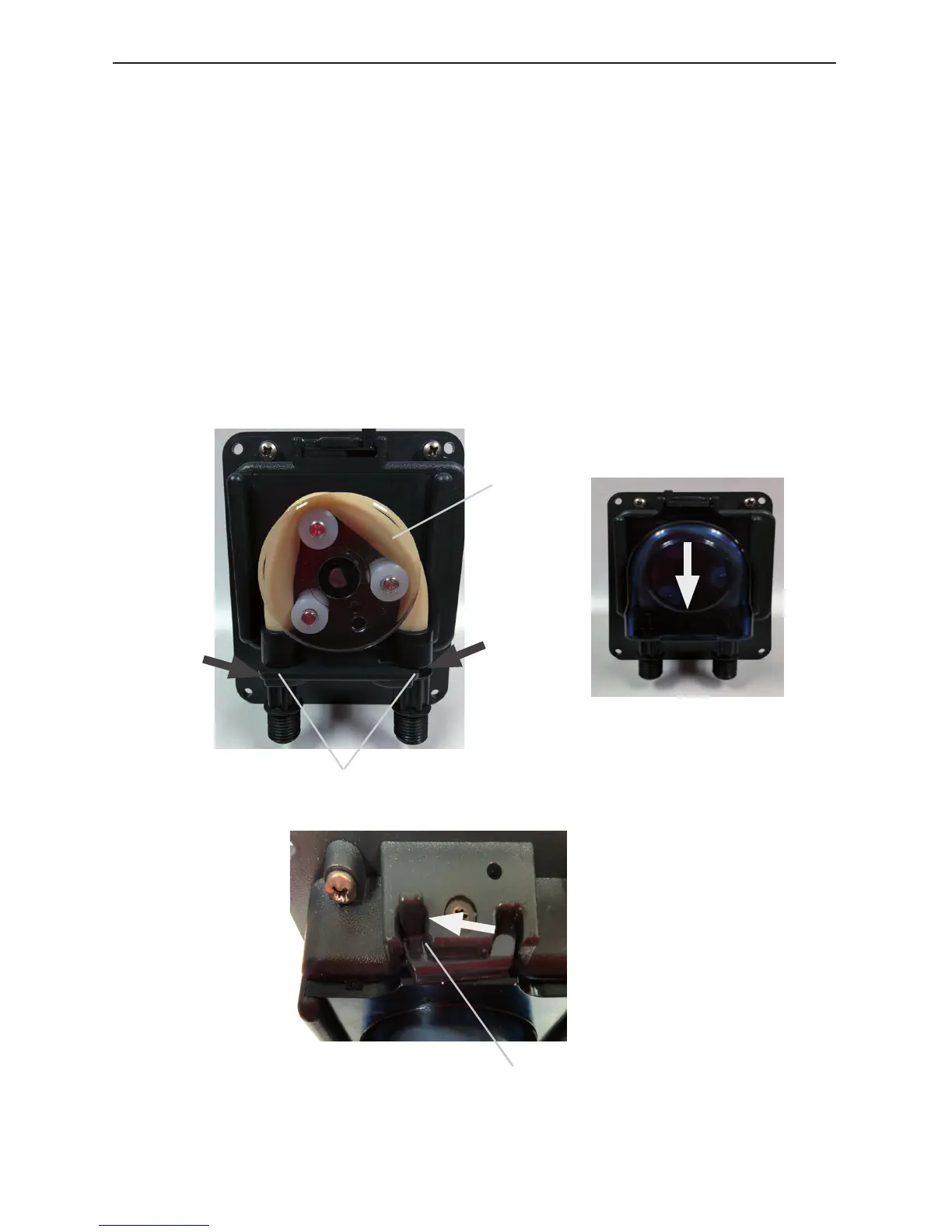

1. To install new tube, insert one fitting into slot, pull tube around the center of
the roller assembly and insert second fitting into the other slot. See Figure 4.
2. Align tube housing cover with track and slide over tube to seat the cover in
place. See Figure 5.
3. To lock cover in place, push lock lever down on the cover while turning the
vertical tab180° from right to left. See Figure 6.
4. Reconnect the suction and discharge lines.
5. Prime pump.
6. Rinse the area with water.
Slots
Figure 4.
Discharge
Suction
Figure 6.
Push lock lever
tab from right to
left side to lock in
place
Figure 5.
Push down on top of
cover to seat in place
Tube
Insert tube
into slot
Insert tube
into slot
Before starting the tube replacement procedure, read all safety precautions on page i and ii.
Pump Head Tube Replacement Instruction (for units built after 8/2014)
