Pentair MASTERTEMP 125 Installation And User Manual

Rev. B 8/14 MASTERTEMP
®
125 Pool and Spa Heater Installation and User’s Guide
49
MasterTemp
®

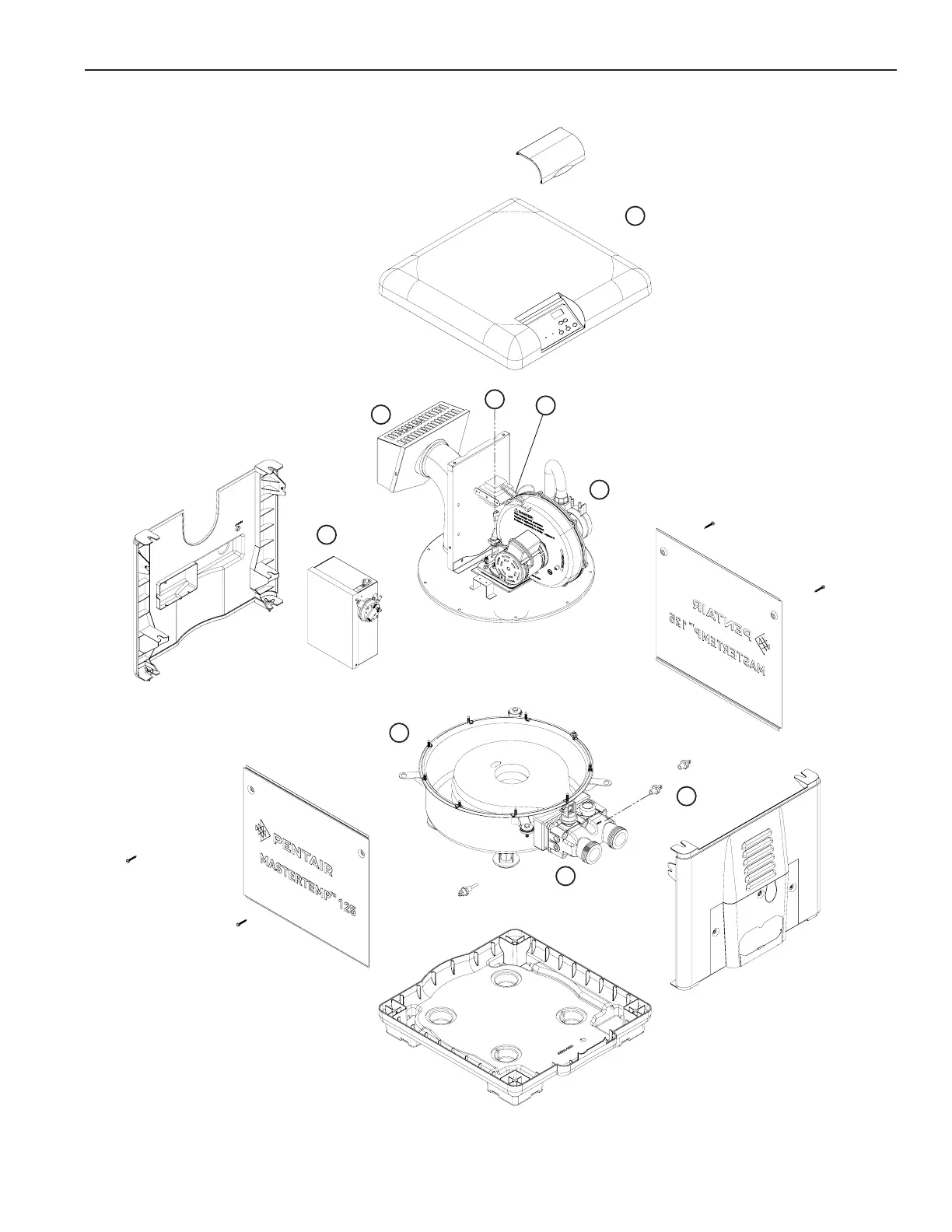

125 HEATER REPLACEMENT PARTS
Repair Parts are available from your Pentair dealer.
If your dealer cannot supply you, call Customer Support at 1-800-831-7133.
For complete
Electrical System
parts breakdown
(Key Nos. 1 through 4),
See Page 53
For complete
Burner System
parts breakdown
(Key Nos. 5 through 7),
See Page 51
For complete
Water System
parts breakdown
(Key Nos. 8 through 9),
see Page 52
1
2
3
5
6
4
8
9
7
Section 6. Maintenance/Replacement Parts

Pentair MASTERTEMP 125 Specifications

General

BTU Output	125, 000 BTU/hr
Fuel Type	Natural Gas or Propane
Ignition System	Electronic
Minimum Flow Rate	20 GPM
Maximum Working Pressure	50 PSI
Efficiency	82%
Water Connections	1.5 inch
Certifications	ANSI Z21.56
Voltage	120V
