SPACOMMAND
®
Spa-Side Remote Installation and User’s Guide
8
Step 2: Mount the SpaCommand
®
Spa-Side Remote
To mount the SpaCommand spa-side remote (surface mount - without mud-box):
1. Feed the remote wire into the conduit opening. Leave about eight inches of
wire slack out of the conduit for installation. Pull the wire through the conduit
to the load center location. If needed, use a “Fish Tape” or similar method to
pull the wire through long conduit runs with multiple bends.
2. Position bracket and drill two screw holes: Position the wire connector flush
with the top of the conduit and the bracket oval opening. Mark the two bracket
screw holes in the spa wall or deck surface. Drill two 3/16 inch holes. Insert
the two plastic wall anchors (provided in kit).
3. Mount the bracket: Insert the remote wire connector through the bracket
opening. Use the vertical screw hole slots to position the bracket so that the
top edge of the remote is level with the spa wall coping (see diagram below).
Align the bracket screw holes with the two plastic anchors and secure the
bracket in place with the two screws.
4. Connect the remote: Place the O-RING over the round socket on the rear of
the remote. Insert the connector into the socket. The connector is keyed for the
correct pin alignment. Be sure the connector fits flush against the back of the
remote front panel. Secure the connector to the rear of the remote with the two
screws. Be sure that the wire in the conduit is not pinched.
5. Place the remote onto the bracket. Press down evenly to snap in place.
Step 3: Connecting the Spa-Side Remote
See “Wiring the SpaCommand spa-side remote to the EasyTouch
®
Automation load center,” page
15. See “Wiring the SpaCommand spa-side remote to the IntelliTouch
®
Automation load center,”
page 15.

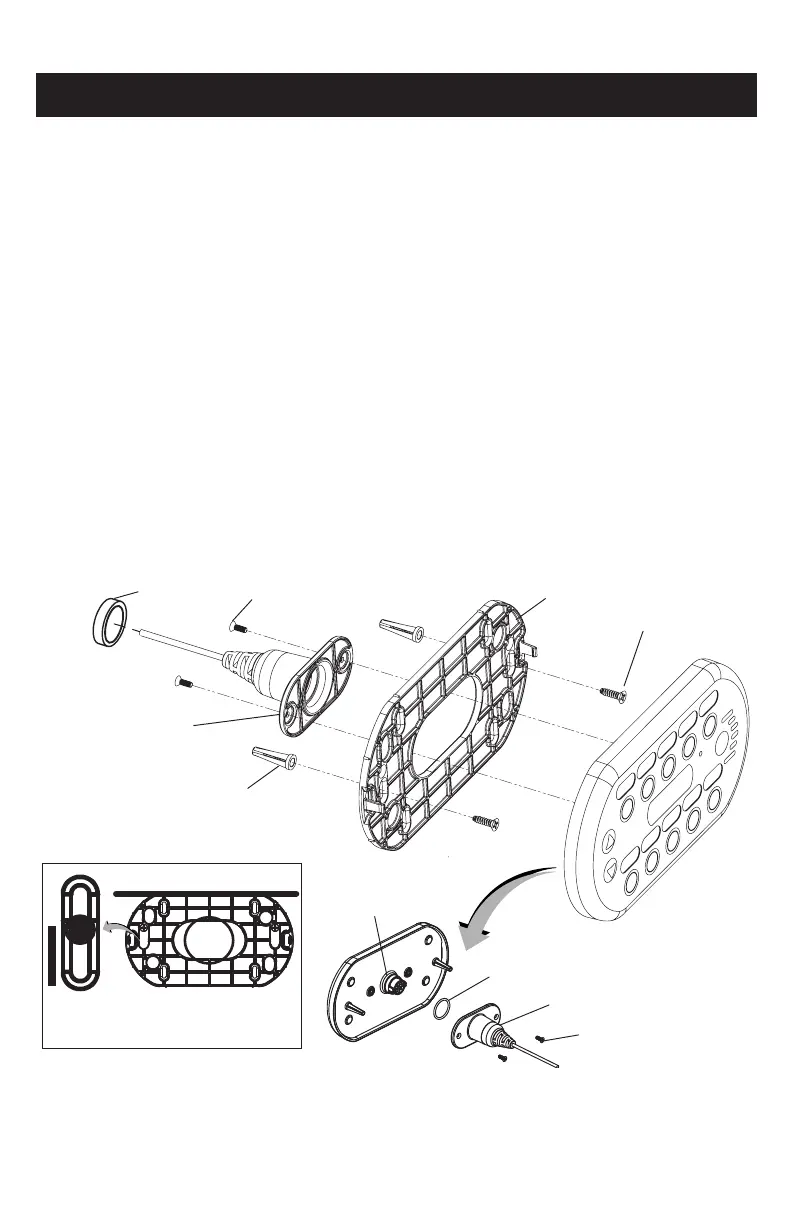

SURFACE MOUNT INSTALLATION
Conduit
Cable
connector
Bracket
Remote (rear view)
O-RING
Screw (x2)
Connector (keyed)
Screw (x2)
Remote
(front panel)
Screw (x2)
Plastic anchor (x 2)
Socket
Spa wall coping
Use slots for vertical
bracket positioning
▼
▼
