SPACOMMAND
®
Spa-Side Remote Installation and User’s Guide
7
SURFACE MOUNT INSTALLATION (without MUD-BOX)
Step 1: Install Conduit
Prepare the mounting location near the spa by installing a one inch conduit where the
remote control is to be located (see Figure 2). The conduit must protrude from the deck or
spa wall. Be sure the conduit is perpendicular to the surface (90°). Conduit may be
reduced down to ¾ inch or ½ inch after the first three inches cast into the spa area.
Run the conduit, using sweep elbows for turns, from the spa to the low voltage raceway
of EasyTouch
®
to IntelliTouch
®
Control System load center. When the deck or spa wall
have been finished, carefully trim the plumbing back to be flush to the deck or spa-wall.
Note: The spa-side remote should not be mounted below the spa water level.

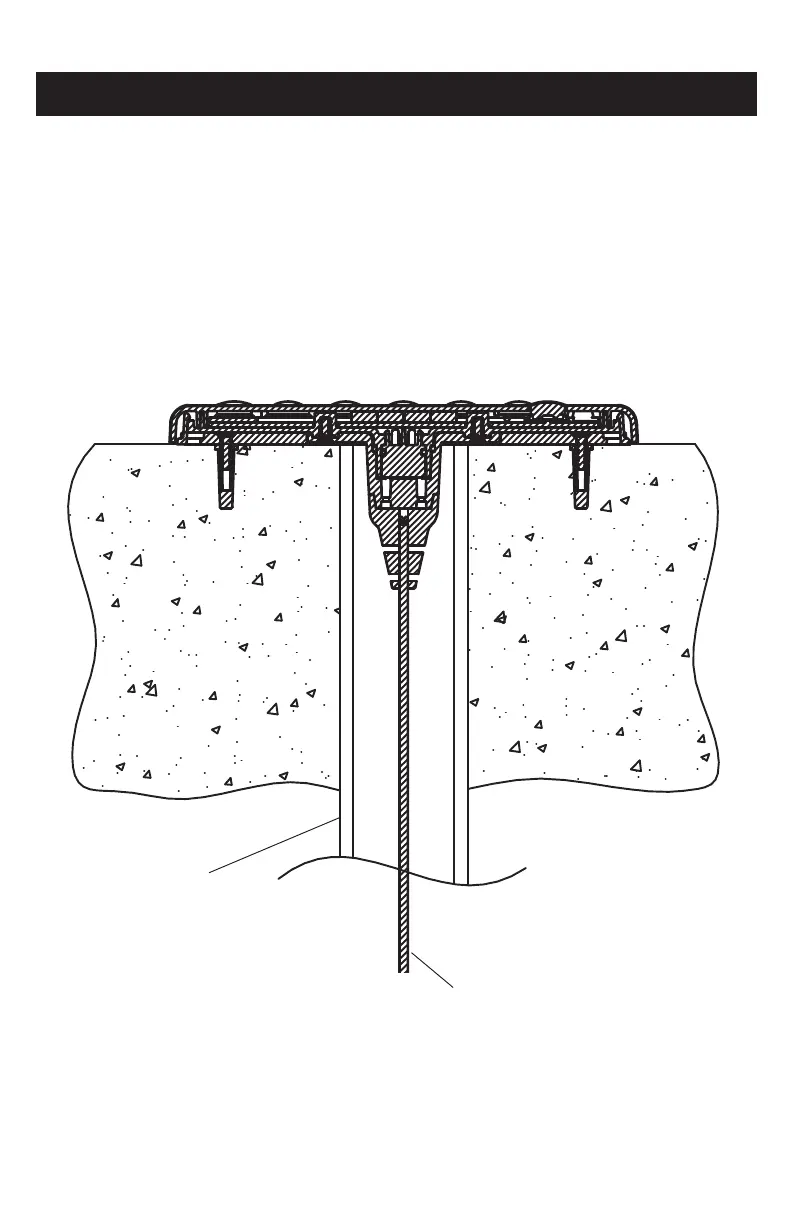

Figure 2
Conduit
Cable (150 ft.)
to load center
