SPACOMMAND

Spa-Side Remote Installation and User’s Guide

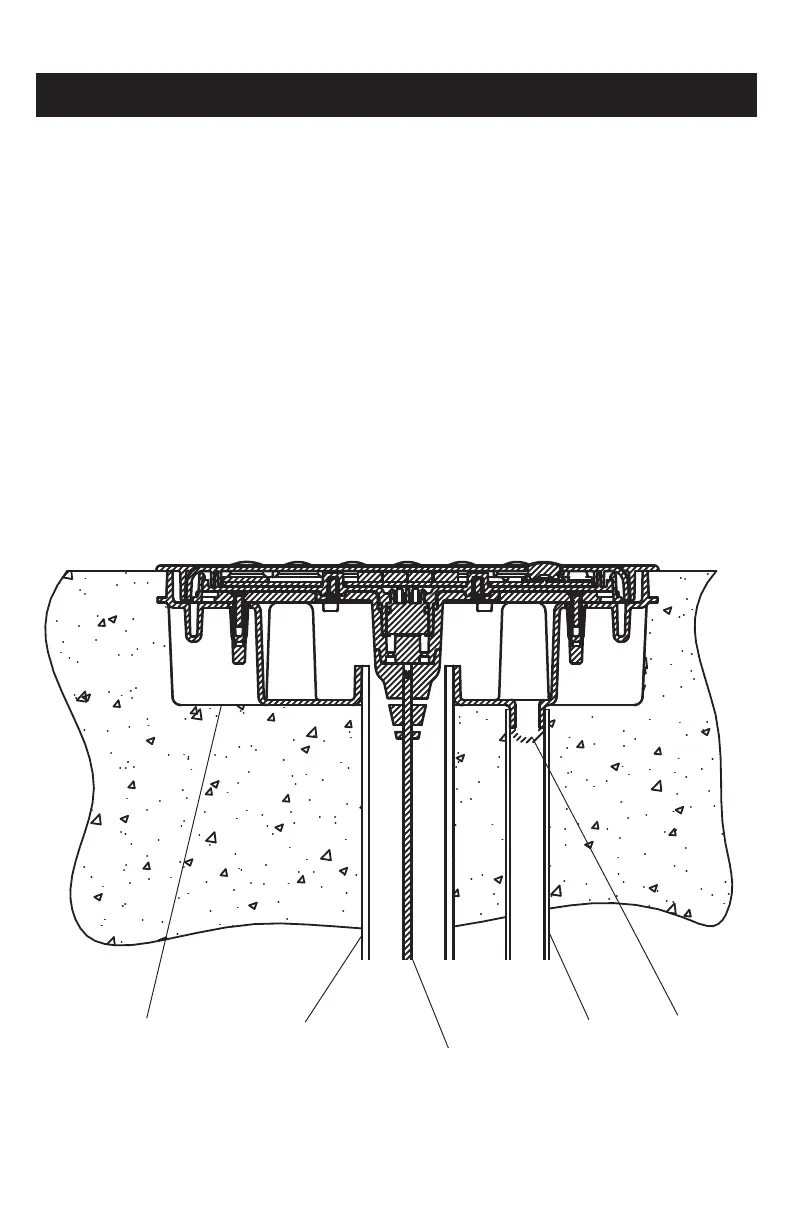

Figure 1

Nipple½-inch.

Drain tube

Conduit

Mud-box

Spa-side remote (recess mount)

Cable

(150 ft. or 250 ft.)

to load center

Step 1: Install Conduit

Prepare the mounting location near the spa: Install a one (1) inch conduit where the

remote control is to be located (see Figure 1). Conduit may be reduced down to ¾-

inch or ½-inch after the first three (3) inches cast into the spa area. Be sure the conduit

is perpendicular to the surface (90° angle). Run the conduit, using sweep elbows for

turns from the spa to the low voltage raceway of EasyTouch

to IntelliTouch

Control

System load center.

Step 2: Install Mud-Box

Mount the mud-box over the conduit. Trim the conduit so that it just protrudes into the

mud-box. The fit will be loose. Orient the mud-box so that the spa-side remote is

square with the deck or spa wall (see Figure 1). Secure the mud-box and plumbing

together using neutral cure caulking or RTV. Insert the mud-box cover (secure with two

screws) until the deck or spa wall are finished, discard cover when completed (keep

the screws for bracket installation).

Note: If needed, a nipple is provided in the mud-box for drainage. Cut the end of the

nipple and attach a piece of ½-inch tubing. Run the tubing to the appropriate drainage

location away from the spa-side remote before finishing the deck or spa wall.

RECESS MOUNT INSTALLATION (with MUD-BOX)

Pentair SPACOMMAND CP3800 Series User Manual
