INTELLIFLO3™ VSF and INTELLIPRO3™ VSF Variable Speed and Flow Pump User's Guide
ProgramSetup
The pump allows you to create and customize up to 8 unique programs.
The pump also features a default Quick Clean program that can be
customized, but not renamed or deleted.
1- ScheduleEnabled/DisabledToggle: Tap to enable or disable a
Schedule Program.
If disabled, the schedule program is inactive and will not run until
it is re-enabled.
This toggle will only appear if a program is Schedule Mode.
2− ProgramNickname: Displays the name a specic program will
display on the Pump Dashboard.
Tap the entry eld to edit the program name.
3− ProgramMode:Displays the current Program Mode.
Tap a mode tab to select a mode.
• MANUAL: A manual program must be manually started and
stopped from the Pump Dashboard. The program will not
repeat and will run until it is manually stopped.
• TIMER: A timer program must be manually started from the
Pump Dashboard but will automatically stop at the end of its
set duration. The program will not repeat and will only run
for its set duration.
• SCHEDULE: A schedule program will automatically start
and stop based on its day, start time and end time settings.
The program will repeat at the same time each day on each
day selected.
4− SetSchedule/Timer:
• MANUAL MODE: This option will not display for manual
mode programs.
• TIMER MODE: Set the run duration for timer mode
programs.
• SCHEDULE MODE: Select which days of the week you
want the pump to run and set the duration of these daily
runs.
5− PumpSpeed/Flow:Displays the Speed (percentage of
maximum speed) or the Flow (GPM) set for the program.
Tap the Speed or Flow tab to determine which of these
measurements is displayed.
Use either the +/- buttons to edit the speed/ow setting in minor
increments or the slider to edit in larger increments.
The Activated/Deactivated toggle shows the state of the pump.
If ACTIVATED, the pump is currently active and able to run a
program.
6− RelayToggles: Tap a relay toggle to determine whether a wired
device is active during the program run time.
If a device relay is Activated, the device will run along with pump
the entirety of manual, timer or schedule program.
These toggles only display if the Relay Control Board (P/N
356365z -- sold separately) has been installed.
7− Save: Tap to save edits made to program settings.
TheSAVEbuttonmustbepressedinordertosaveeditsto
settings;otherwisetheywillbelost.
8− RemoveProgram: Tap to permanently delete a program from
the Pump Dashboard.

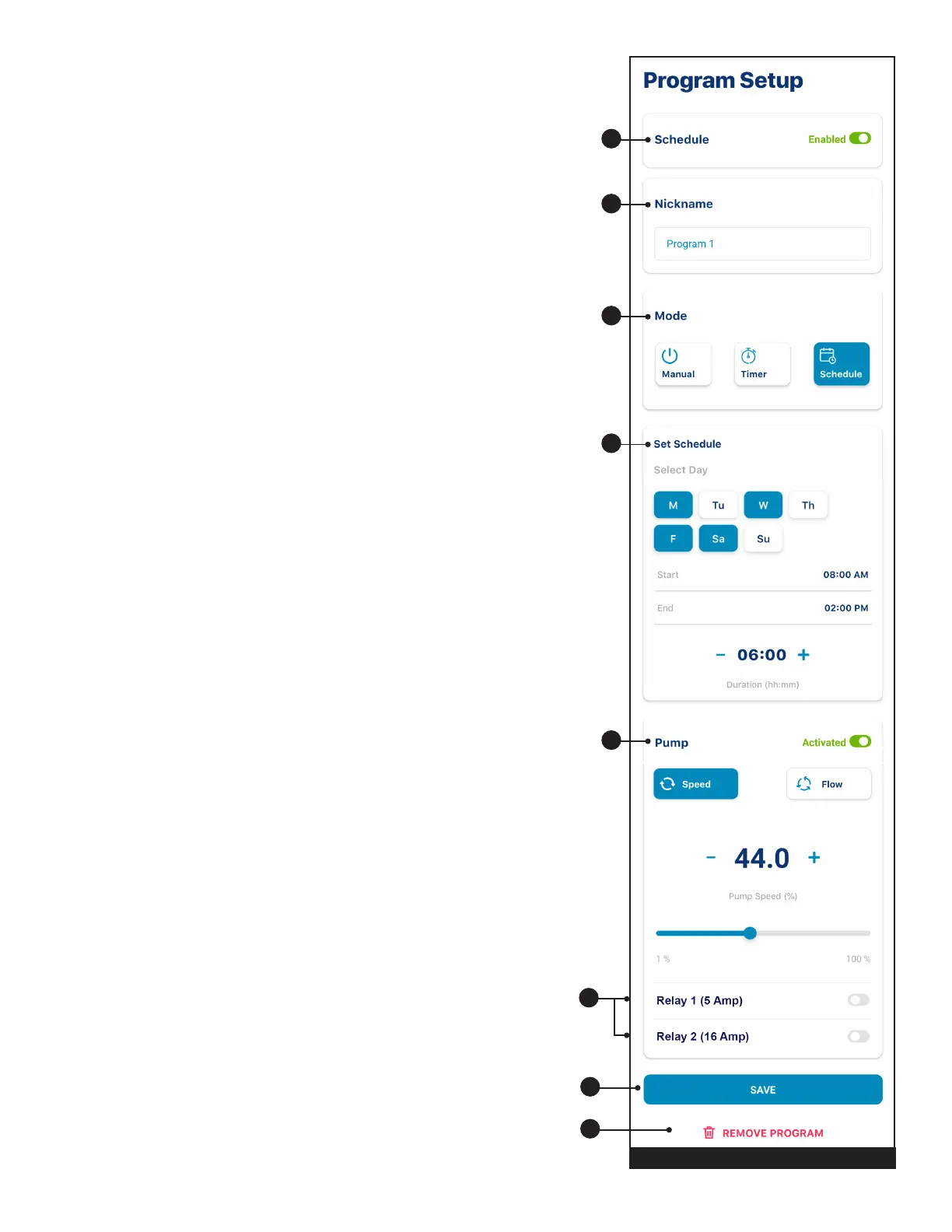

FIGURE 7
1
2
3
4
5
6
7
8
