Pentair WHISPERFLOXF VS User Manual

WHISPERFLOXF
®
VS and MAX-E-PROXF
®
VS Commercial Variable Speed Pump Installation and User’s Guide
14
Operating the Pump in Flow Mode
When connected to an inline 4-20mA owmeter, this
pump is capable of maintaining a constant ow based on
the needs of your pool system.
Connecting a owmeter and operating the pump in ow
mode will require the purchase of:
• Digital Input Wiring Kit (P/N 353129Z - Almond)
or RS-485 Automation Wiring Kit (P/N 356324Z -
Black).
Flow mode operation is not possible if controlling the pump
via RS-485.
• A 4-20mA Flowmeter (Pentair recommends P/N
97014-4203KIT)
Flow Mode Setup and Conguration
Before beginning ow mode setup and conguration,
ensure the pool lter has been backwashed and all
pump and skimmer baskets are free of debris.
1. Press Start/Stop to stop the pump.
2. Following the installation instructions given in
the owmeter’s installation guide, install an inline
4-20mA owmeter into the plumbing.
3. Using the Digital Input Wiring Kit, wire the owmeter

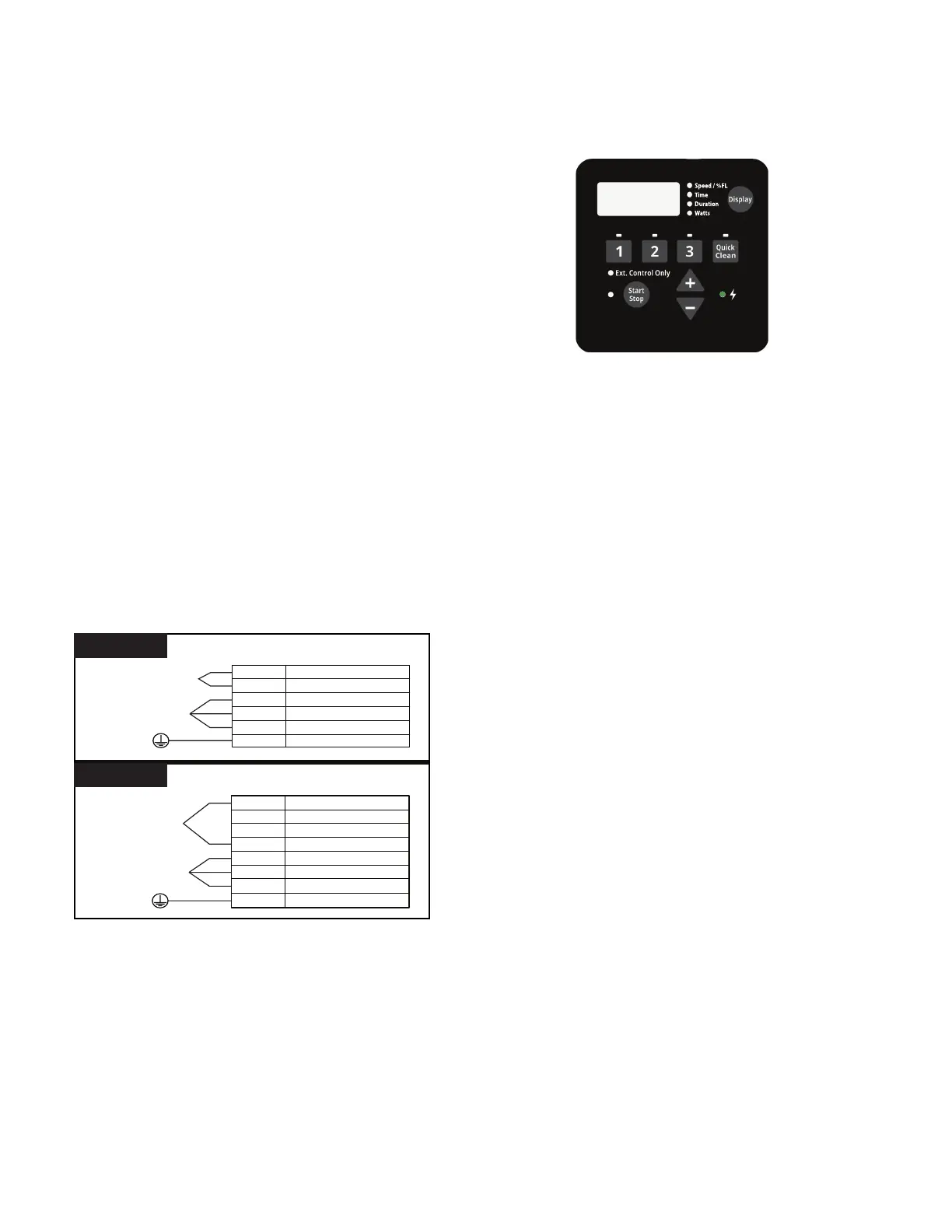

to the pump’s digital input port. See Figure 18A.
Note: Flow mode is not compatible with external
control via RS-485. However, a owmeter can still
be connected. See Figure 18B.
RED
GREEN SPEED 1 DIGITAL INPUT
YELLOW SPEED 2 DIGITAL INPUT
ORANGE
SPEED 3 DIGITAL INPUT
BROWN QUICK CLEAN DIGITAL INPUT
BLACK GROUND
+24V OUTPUT FOR D.I. TRIGGER
FLOWMETER
DIGITAL INPUTS
WHITE SPEED 1 DIGITAL INPUT
BLUE SPEED 2 DIGITAL INPUT
ORANGE
SPEED 3 DIGITAL INPUT
BROWN QUICK CLEAN DIGITAL INPUT
BLACK GROUND
YELLOWNOT USED
GREEN NOT USED
RED
+24V OUTPUT FOR D.I. TRIGGER
FLOWMETER
DIGITAL INPUTS
Digital Input Wiring Kit
(P/N 353129Z - Almond)
RS-485 Automation Kit
(P/N 356324Z - Black)
Figure 18A
Figure 18B
4. Press and hold Display for 3 seconds.
5. Press Display three (3) times to access the Speed
or Flow mode selection screen. “Spd” will display.
Flow Mode Setup and Conguration (cont.)
6. Use “+” and “-” to scroll to “Flo”. See Figure 19.
Note: This option will not be available unless a
4-20mA owmeter is connected to the pump.
7. Press Display. The Flow Mode High Speed
screen.
8. Use “+” and “-” to set a high speed for ow mode
between 2000 and 3450 RPM.
9. Press Display. “Press Start” will scroll across the
screen.
10. Press Start/Stop. The pump will ramp up to the
programmed maximum speed, then “Cong Flo
Sensor” will scroll across the screen.
11. At the owmeter, congure the owmeter:
K Factor: Refer to owmeter manual
Averaging: 10-30 (20 is recommended)
Sensitivity: Refer to owmeter manual
4-Set: 0 GPM
20-Set: GPM displayed while pump motor is at
maximum speed set in step 8.
Note: Flowmeter conguration will timeout at the
drive after 10 minutes. If this occurs, repeat steps
4 through 10.
Note: The owmeter 20-Set will need to be
recongured each time the system’s lter is
cleaned.
- Continue to next page -
FLo
Figure 19
