VS Commercial Variable Speed Pump Installation and User’s Guide
23
Item Description
WhisperFloXF
Part #
Max-E-ProXF
Part #
1 Drive Kit 358085 358086
2
Top Cover Kit w/ Screws and
Gasket
358093 358094
3 Motor w/ Fan Shroud 358089 358090
4 Fan Shroud w/ Screws 358095 358096
5 Field Wiring Cover w/ Screws 358091 358092
6 Strainer Pot Assembly 400000 401000
7 Union Kit 410020
8 Motor Base 400004Z 401004Z
9 Acorn Nut (Qty. 10) 071413
10 Lock Washer (Qty. 10) U43-12SS
11 Flat Washer (Qty. 6) 072184
12 Seal Plate 400002 401002
13 Shaft Seal 17351-0101S
14 Seal Plate O-ring 351446
15 Impeller Assembly 400023Z
16 Impeller Screw Washer 072172
17
Impeller Screw, Plastic-Head
(pumps mfg. before 10/7/19)
37337-6080
Impeller Screw, Metal-Head
(pumps mfg. after 10/7/19)
356073
(-) Not Shown
(*) Hardware and O-ring Kit includes item no. 9-11 and 14.
Item Description
WhisperFloXF
Part #
Max-E-ProXF
Part #
18 Diffuser 400011
19 Diffuser Screws 353323
20 Diffuser O-ring 350336
21 Strainer Pot Lid 400006 401006
22 Strainer Basket 400007Z
23 Lid O-ring 35505-1440
24 Union C-clip (Qty. 2) 410001
25 Union Nut (Qty. 2) 411000
26 Union Adapter w/o Tap (Qty. 2) 410002
27 Diamond Seal Kit (Qty. 2) 410016Z
28 Drain Plug O-ring (Qty. 2) 192115
29 Drain Plug (Qty. 2) 071131 357161
-
RS-485 Automation Wiring Kit,
Black, 25 ft.
356324Z
-
Digital Input Wiring Kit,
Almond, 25 ft.
353129Z
- 3-inch Flowmeter Kit 97014-4203KIT
-
Seal Plate Hardware and O-ring
Kit*
400030Z
- Riser Plate, XF to Challenger 400012

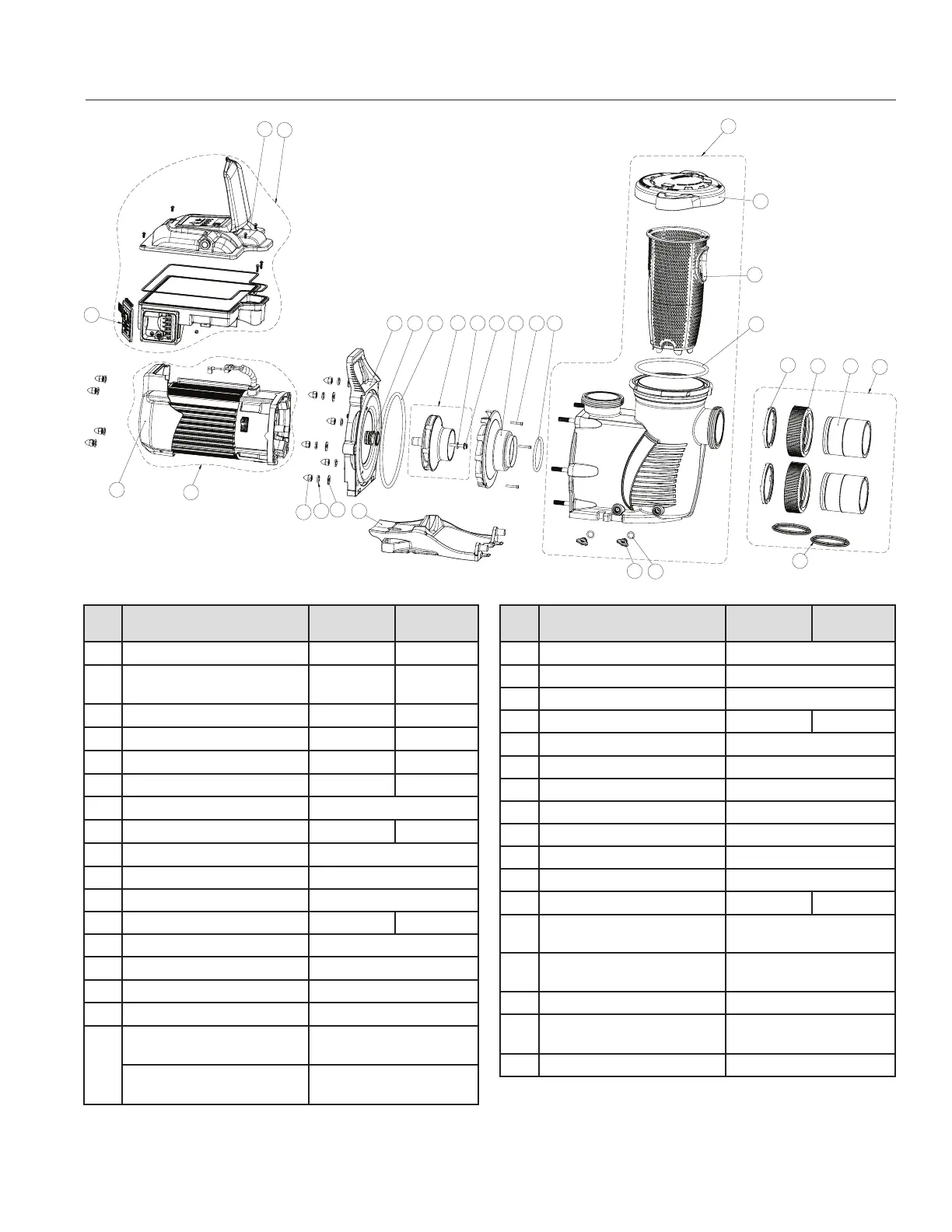

REPLACEMENT PARTS
5
2
1
4
10
11
28
23
22
21
6
27
24
25 26
7
3
1817
15
1413
12
29
8
9
19 20
16
