6. Web UI function
G7H+ has Web UI functionality. By getting access to its internal hotspot, you can easily manage it on the
Web UI. As long as you have a smart phone, PC or handheld with WIFI functionality, you can easily connect
to the G7H+ to view status, download data and configure the receiver.
G7H+ is default to open WIFI automatically when it’s powered on. Use smart phone/PC/handheld to
search the receiver hotspot, whose name is its serial number, and connect it. (Receiver WIFI only supports
getting access to Web UI to check status and set up mode, not for Internet connection.)
The WIFI hotspot name is the serial number of the receiver.
G7H+

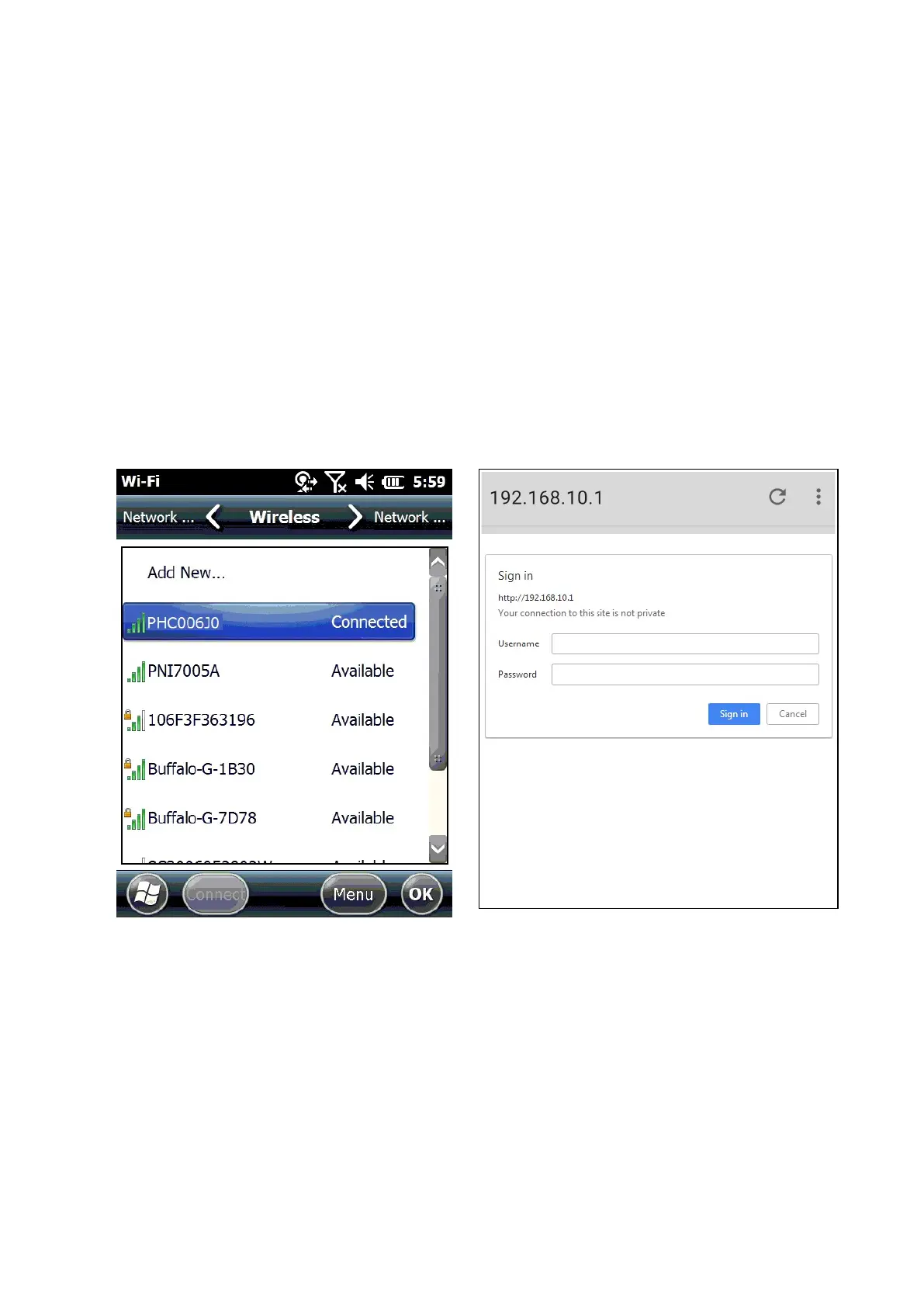

Figure 6-1 WiFi connection
After the connection, enter the IP address in browser: 192.168.10.1.
A window will pop up when the user log in, which need to fill in the user name and password. Then you
can login the WebUI.
User name: admin Password: password
