Charger
The charger provided with AC adaptor and AC cord.
The specification of AC Adapter is shown below;
Input: 100-240VAC ~50/60Hz 1.7A
Output: 19.0VDC @ 3.16A
Charging Operation
The charger can charge two batteries simultaneously.
(1) Plug the AC cord to AC Adapter.
(2) Plug in AC Adapter to Battery Charger.
(3) Plug the AC on battery charger into the wall socket and power LED turns ON.
(4) Place your battery in charger bay correctly.
(5) Wait until LED indicator turns GREEN for a full charge.

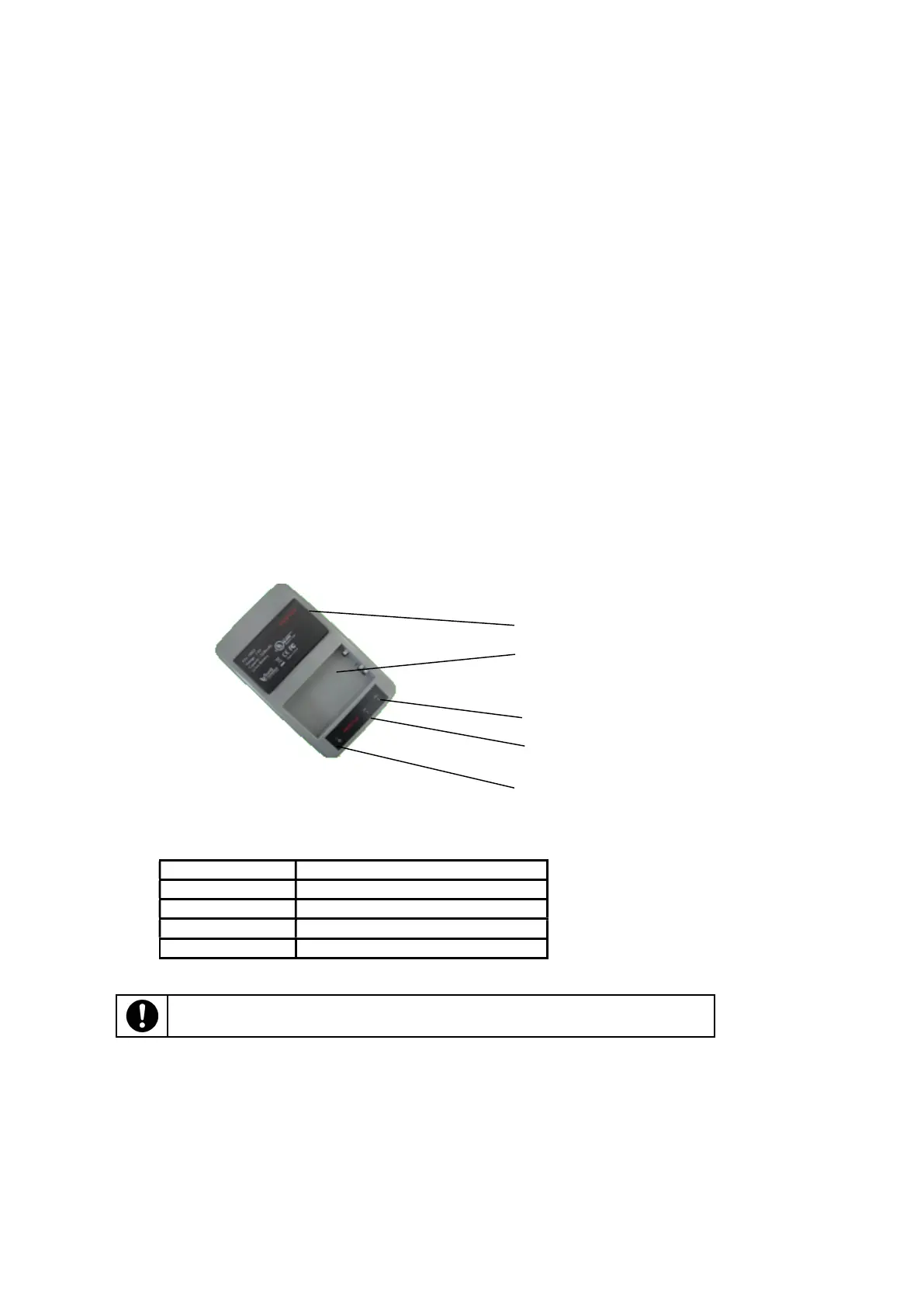

Figure 7- 2 Battery Charging Description
LED
Description
NONE
Battery
is
not
seated
correctly
GREEN
Battery
is
fully
charged
RED
Battery
is
being
re
-
charged
Flashing
RED
Charge
error
or
bad
battery
A
fully
discharged
battery
will
take
approximately
2
.5
hours
to
fully
charge
and
may not light the LED status indicator when first mounted.
Battery Bay 1
Battery Bay 2
LED
Status
Indicator
Power for Battery Charger
・Battery Bay 1
・Battery Bay 2
