( For MAX BR1 Classic CB IEC 62368-1 )
Mounting the Unit
Wall Mount

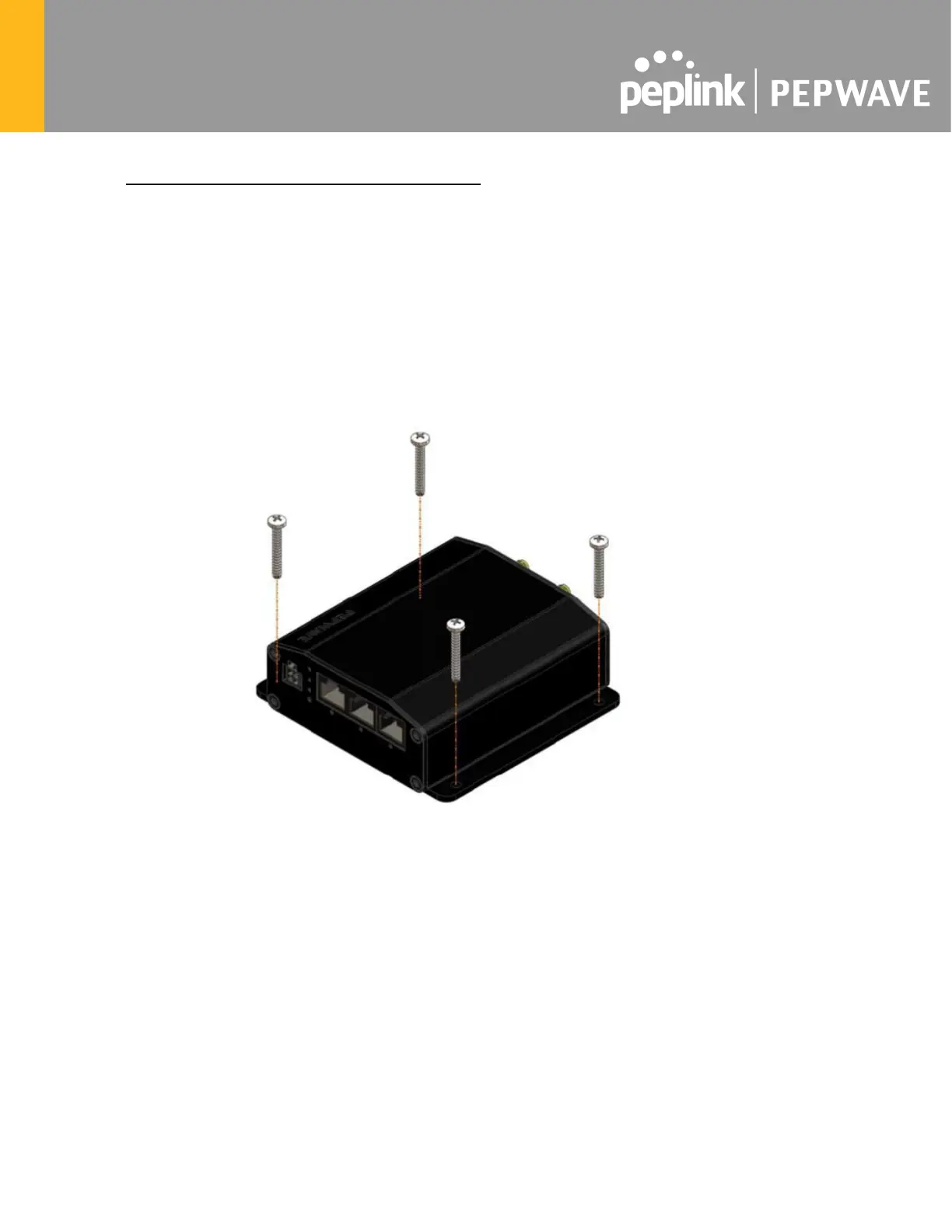

The Pepwave MAX BR1 Classic can be wall mounted using screws. After adding the screw on
the wall, slide the MAX in the screw hole socket as indicated below. Recommended screw
specification: M3.5 x 20mm, head diameter 6mm, head thickness 2.4mm.
The Pepwave MAX BR1 Classic requires four screws for wall mounting.
Output of the external power source shall complied with ES1 and ES2 requirements, output rating 10-30
Vdc, minimum 12W ( DC Jack or POE injector ), with minimum ambient temperature 65 ℃, altitude =
5000m , and evaluated in accordance to UL/EN/IEC 60950-1 and / or UL/EN/IEC 62368-1
Ensure to connect the power cord of power adapter to a socket-outlet with earthing
