6500 Series Purge and Pressurization System
I/O Manual
64

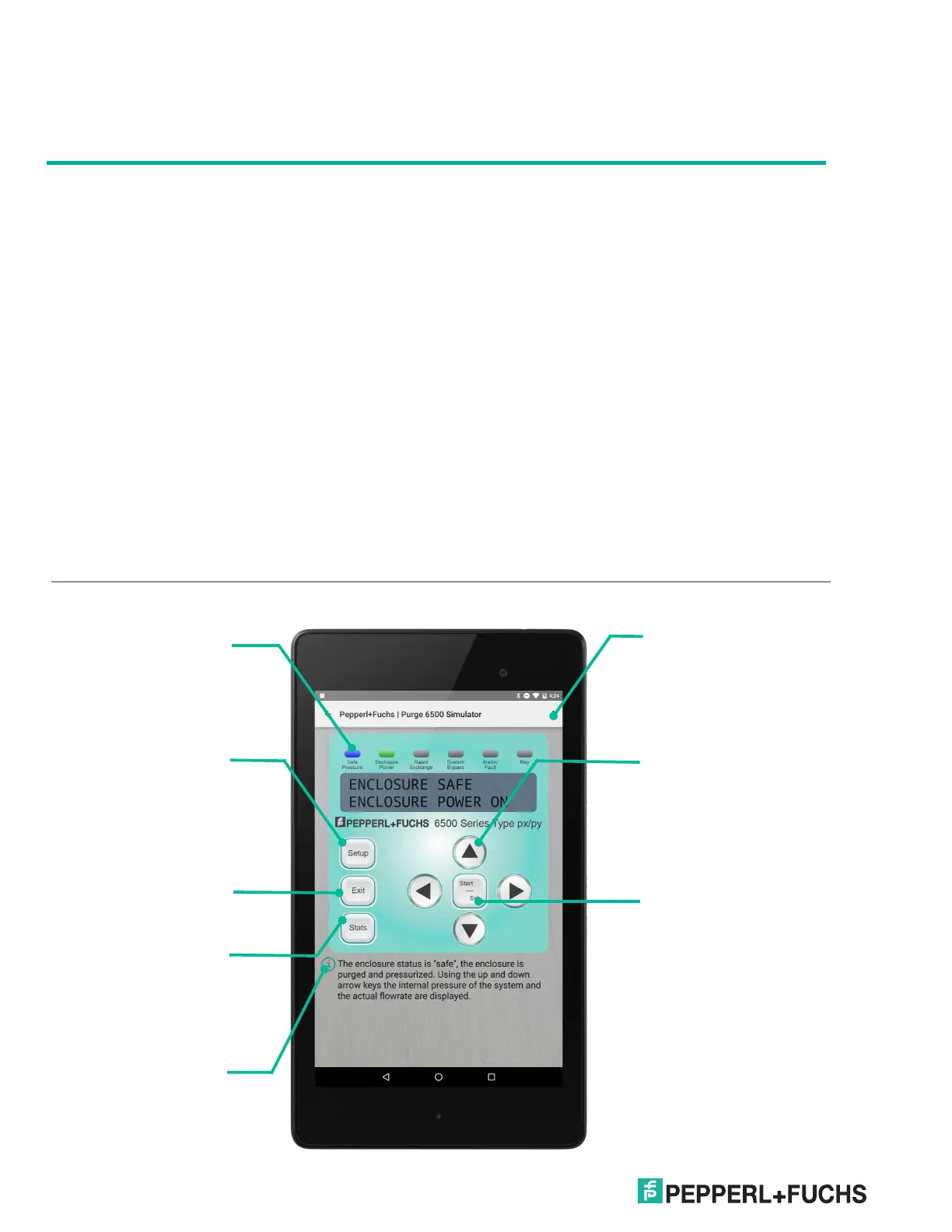

Using the Simulator
Once the desire purge model is selected, users will have access to the full programming menu along with help text that
describes each menu option. Here users can access and familiarize themselves with all of the systems purge settings
and start up options as if they were using a live purge system control unit such as:
Purge Settings
Example: Enclosure Volume, Hazardous Environment, Pressure Settings, Timer Settings, Vent Flow Control,
Valve Control. Etc.
Input Settings
Example: Setting up Pressure as an Input, Temperature as an Input
Output Functions
Example: Setting up alarms for over pressure, lost pressure, and temperature.
Bypass Controls
The Training Mode also allows users to Simulate Actions which will prompt the App to automatically simulate the
programming steps required to access certain menu options including:
User Interface Simulation
Initial Setup
Changing Purge Units
Set Enclosure Volume
Bypass
Display Revision Number
Safe Pressure
Enclosure Power
Rapid Exchange
System Bypass
Alarm / Fault
Key
LED Status Nonfiction
Setup
Purge Settings
Units
Input Settings
Output Settings
Passwords
Language
Bypass Control
Bluetooth Settings
Factory Restore
Bootloader Mode
Exit
Return to main screen / exit parameter
Stats
Statistics
Current Alarm (s)
Last Alarm
Current Fault
Last Fault
Clear Statistics
Clear Fault
P+F 6500 Rev.
Settings
Information
Detailed information relating to the active
parameter / screen selected within the
program menu.
Arrow Keys
Cycle through menu options
Enter password
Cycle through enclosure statistics on
main operating screen
Start / Set
Enter / Set selected programming option
6500 Series
Access Simulate Actions
Feature
