HART Multiplexer System KFD*-HM*-16
Mounting and Installation
4.4.1 Supplying the Multiplexer Master with Power without Power Rail
You can use the terminals to supply the multiplexer master with 24 VDC.
Connecting the Multiplexer Master Power Supply
Connect the power supply to terminals 17 and 18.
Observe the tightening torque for the terminal screws. The tightening torque is
0.5 Nm to 0.6 Nm.
Figure 4.5
Danger!
Danger to life from electric shock
Absent or insufficient insulation can result in electric shock.
Only connect supplies that provide protection against electric shock (e. g. SELV or PELV).

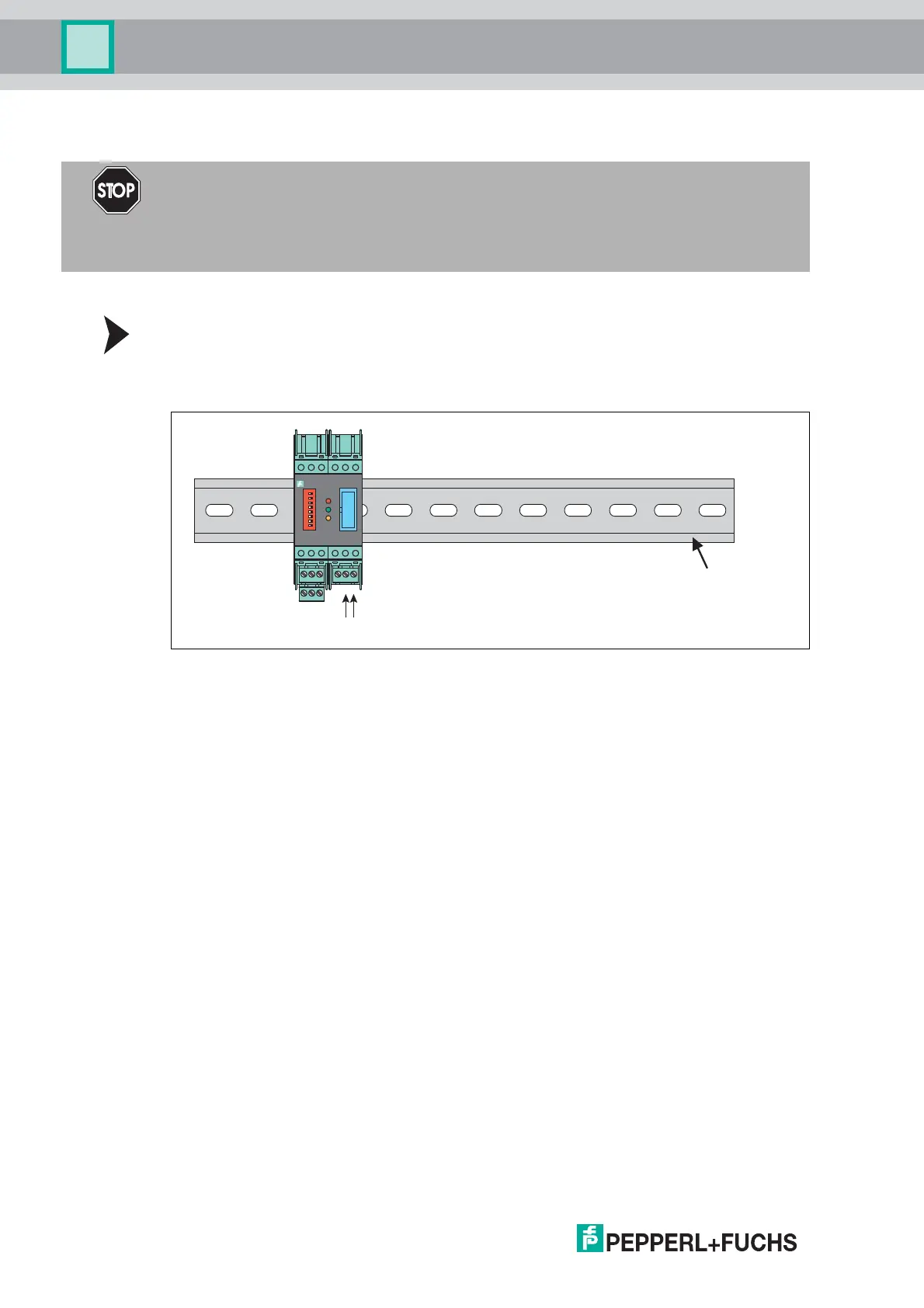

DIN mounting rail
1
2
3
4
5
6
7
8
19
1713 1816
20
14
21
15
KFD0-HMM-16
24 V DC
To Next Page
