HART Multiplexer System KFD*-HM*-16
Appendix

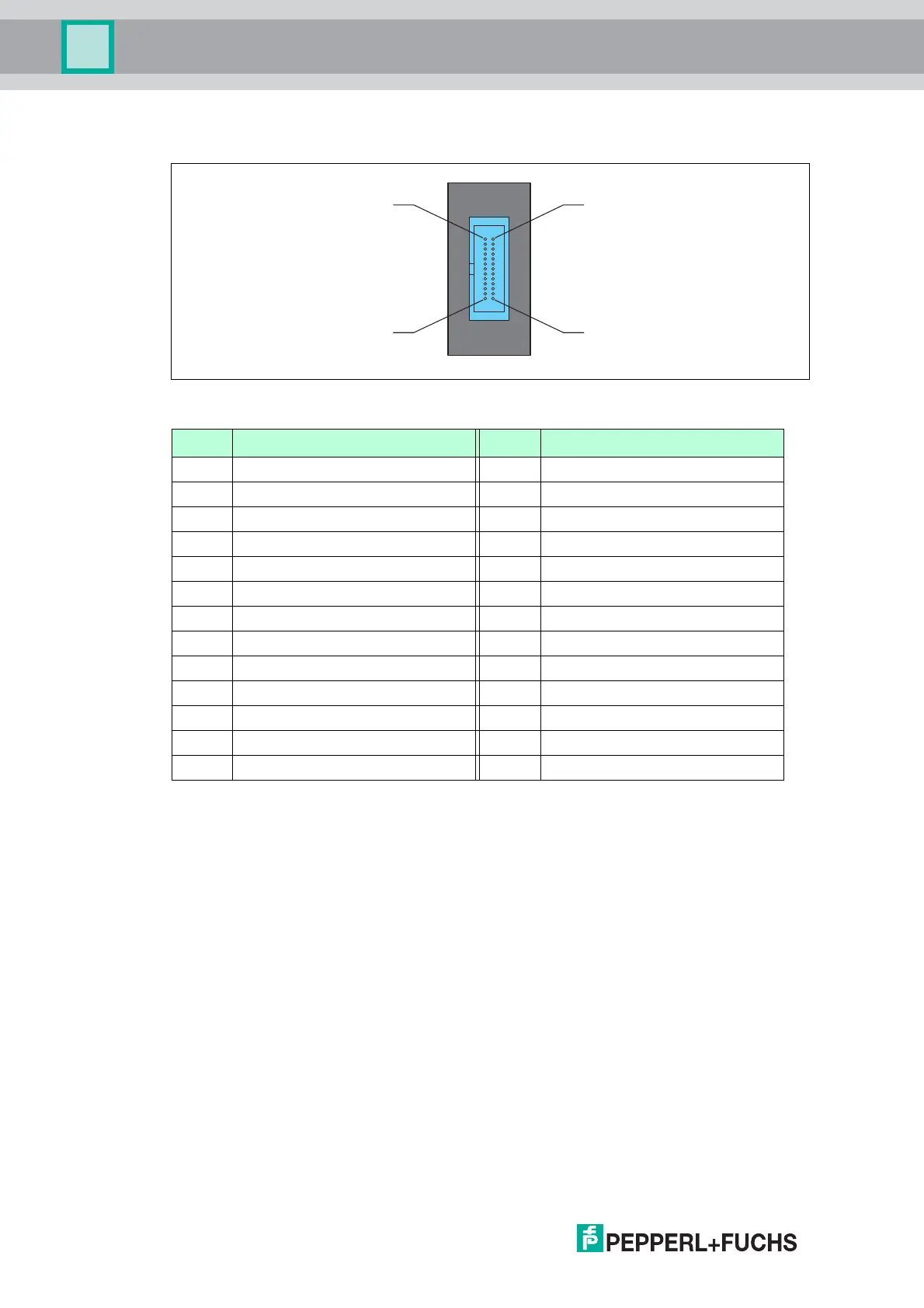

9.2 Assignment of the 26-Pin IDC Socket with Analog HART Signals
Figure 9.1
Pin Signal Pin Signal
1 Analog ground 14 Analog ground
2 Analog ground 15 Analog ground
3 Analog ground 16 HART channel 9
4 Analog ground 17 HART channel 10
5 Analog ground 18 HART channel 11
6 HART channel 1 19 HART channel 12
7 HART channel 2 20 HART channel 13
8 HART channel 3 21 HART channel 14
9 HART channel 4 22 HART channel 15
10 HART channel 5 23 HART channel 16
11 HART channel 6 24 Analog ground
12 HART channel 7 25 Analog ground
13 HART channel 8 26 Analog ground
Table 9.4
2
26
1
25
