VisuNet FLX Panel
Mechanical Installation
2021-04
29
Installing the Panel using the drilling pattern
For this installation no additional sales item is required.
Not included in Panel Mount delivery but required:
21.5" and 19": 14x M5 nuts
15.6": 10x M5 nuts
1.
Use the required VisuNet FLX as a template (or the dimensions shown in Figures below) and
mark the locations of the holes on the mounting surface.
2.
Securely attach the VisuNet FLX panel to the wall. Ensure that the attaching hardware is in the
small section of the keyholes.
3.
Fasten the nuts with a torque of 4 Nm each in a criss-cross pattern.

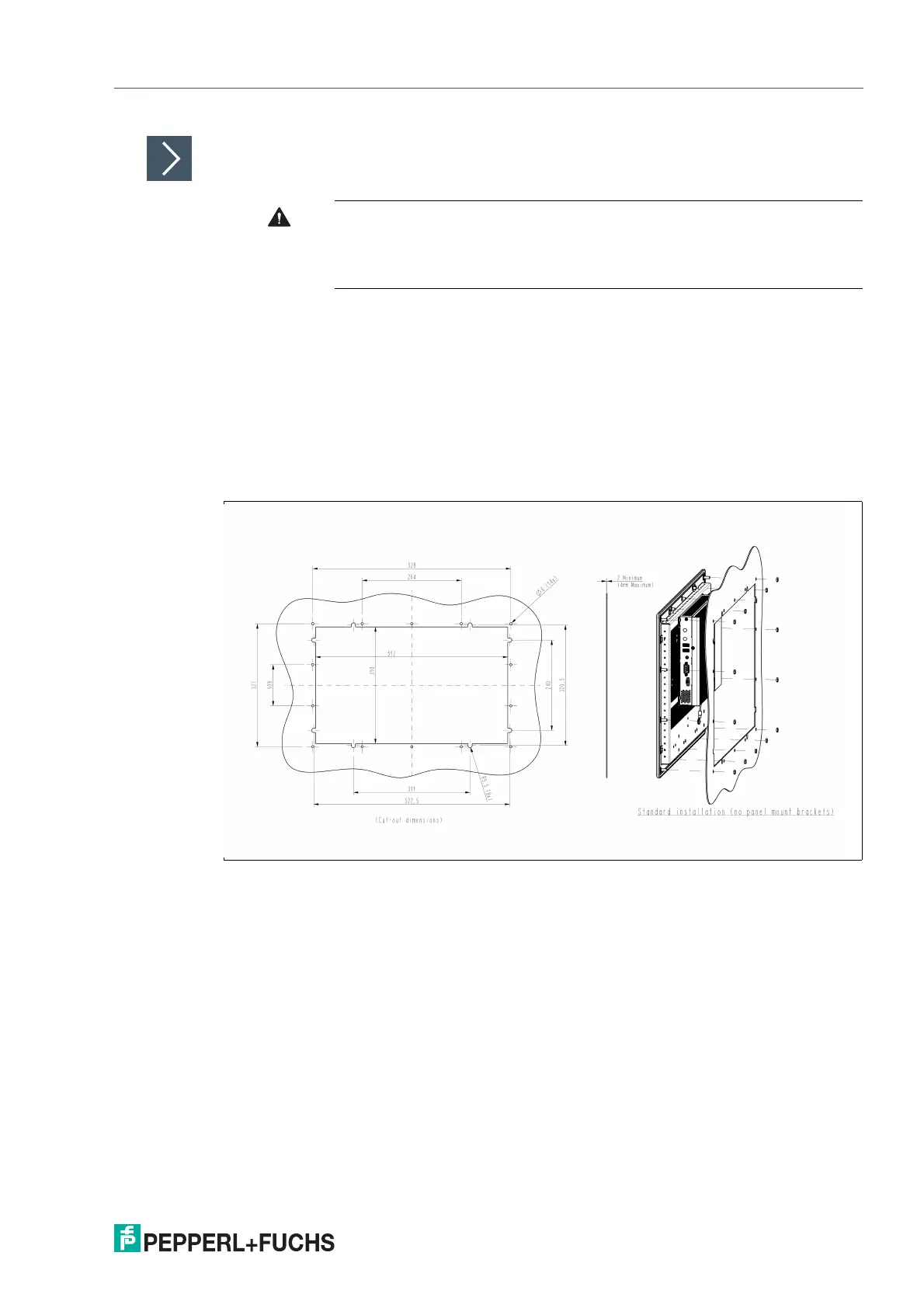

Figure 4.6 21.5" FLX Panel Mount
Warning!
Wall panel thickness!
For the following installation a wall panel thickness of minimum 2 mm and max-
imum 4 mm is required for correct mounting.
