VisuNet FLX Panel
Maintenance
2021-04
41

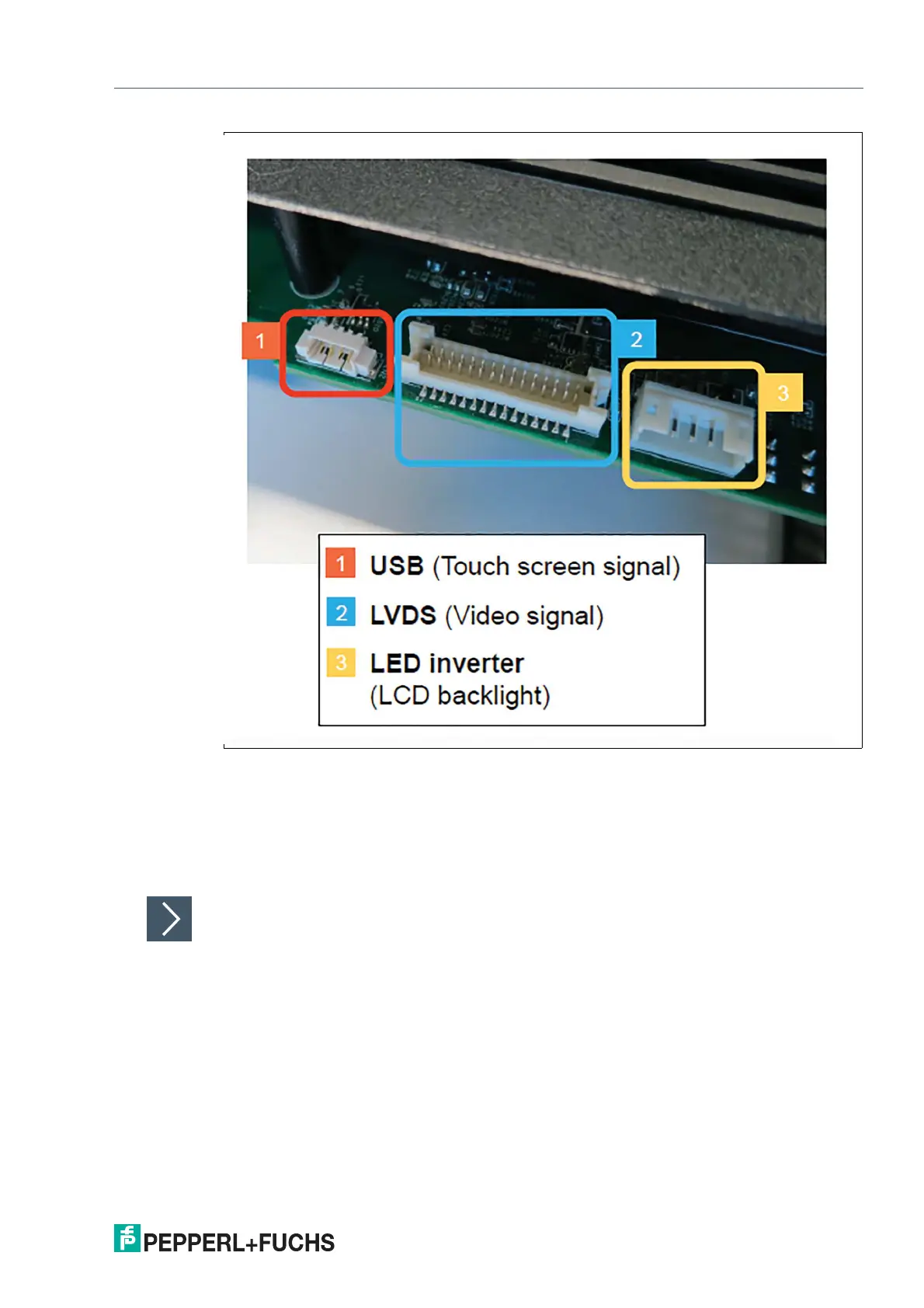

Figure 7.8
14.
Close the cover of the computing unit
15.
If required mount your VisuNet FLX panel.
7.2 Dismounting the Display Unit
If repairs are required, the DPU can be dismounted from the BPC3200-* /
DMU and be replaced.
1.
Uninstall the Panel from the enclosure. When the Panel-Mount Kit is used, remove the four
brackets while holding on to the panel so it might not flip over. Remove the panel. Place the unit
on a soft, raised surface so that the front will not be damaged.
2.
Follow steps 2 to 5 of chapter Exchanging the BPC3200-* or DMU3200-*.
3.
Leave the side/back cover of your computing unit open.
4.
Exchange the display unit.
5.
Follow steps 9 to 13 of the chapter Exchanging the BPC3200-* or DMU3200-*.
