VisuNet FLX Panel
Maintenance
2021-04
37
7.1 Exchanging the BPC3200-* or DMU3200-*
Procedure
If repairs or updates are required, the computing unit can be dismounted from the DPU and be
replaced.
1.
Remove the panel if required. Place the unit on a soft, raised surface so that the front will not be
damaged.
2.
Remove the two PB conductors (1 and 2) from the PB stud on the back of the DPU.

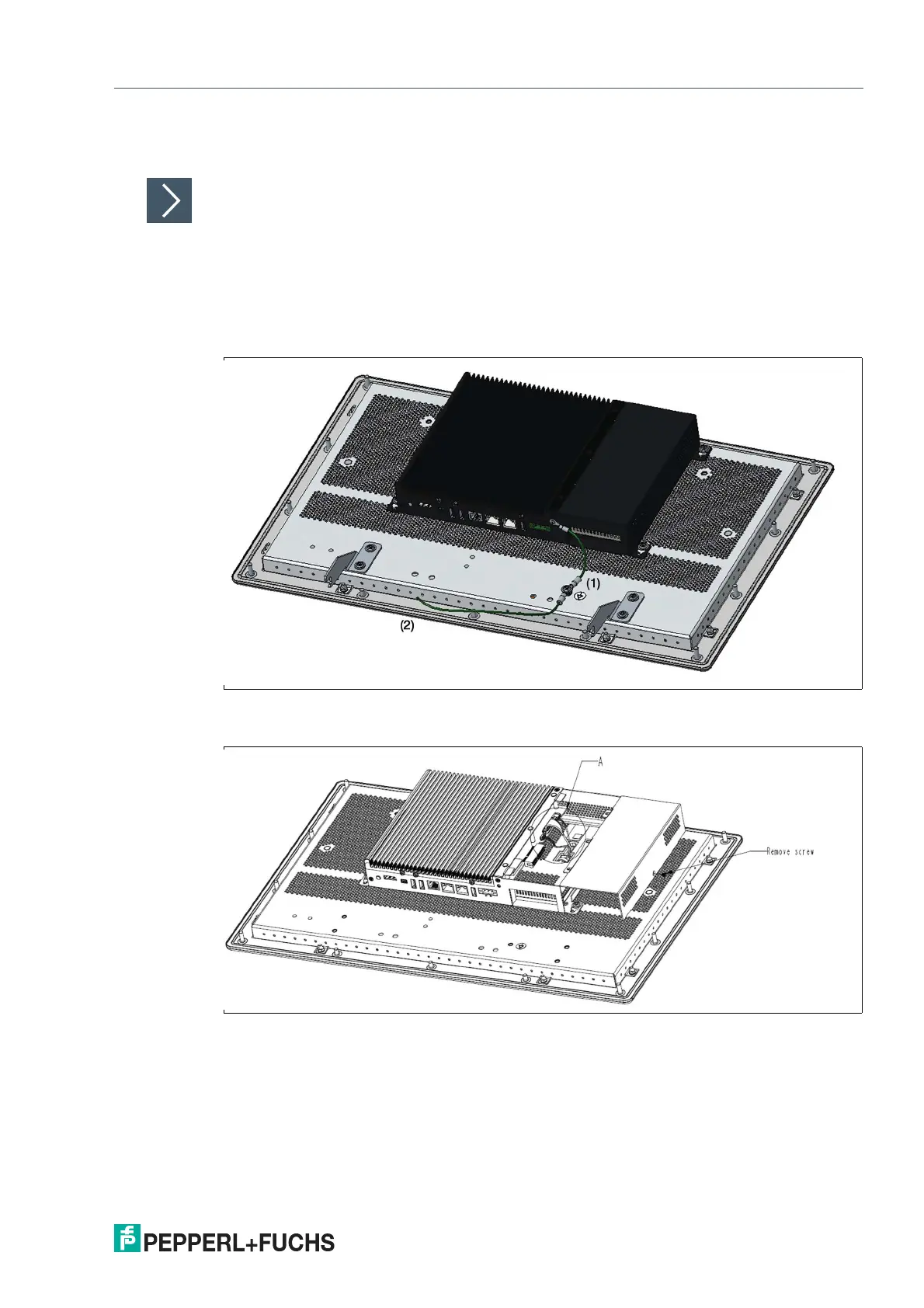

Figure 7.1
3.
Open the side cover of the BPC3200-* in case of a DMU3200-* remove the cover plate.
Figure 7.2 Remove the screws and open the side cover.
