VisuNet FLX Panel
Maintenance
4.
Remove the pins (USB-Touchscreen signal, LVDS-video signal and Inverter LCD backlight)
from the sockets of the DPU. Make sure to pull all the side tabs of the connectors evenly and
smooth.

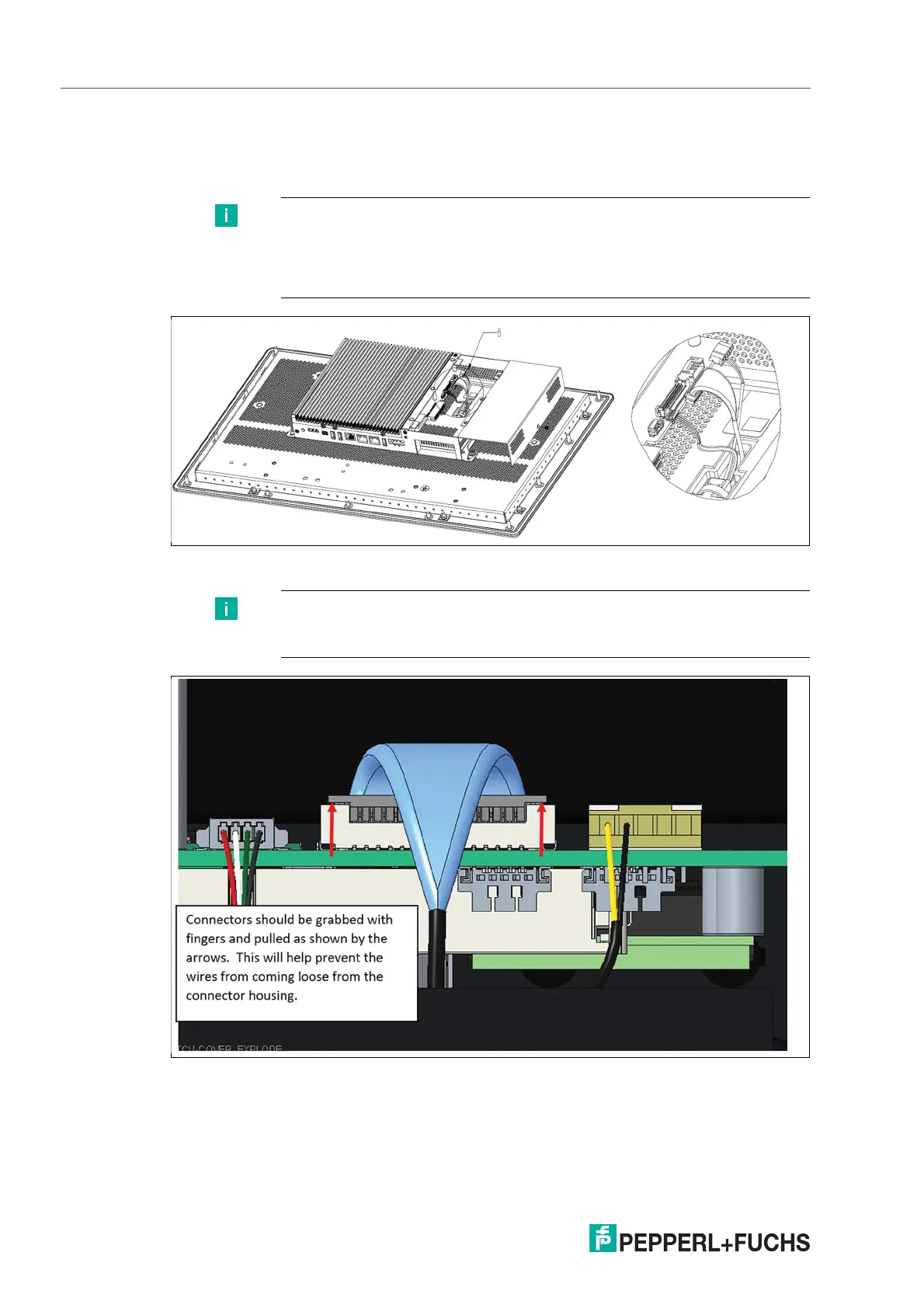

Figure 7.3 Opening the BPC cover (A: USB-Touchscreen signal, LVDS-video signal and Inverter
LCD backlight pins)
Figure 7.4 Remove connectors [1]
Note
Make sure to pull the side tabs of the connectors. Pulling on the wires can
cause the pins to be removed from the connectors, especially with small wires
and contacts that are found on the LVDS cable. (See graphics "Remove
connectors [1]" and Remove connectors [2])
Note
Pull all cables evenly. Use slightly more force on the LVDS connector (not the
cable!).
