VisuNet FLX Panel

Maintenance

2021-04

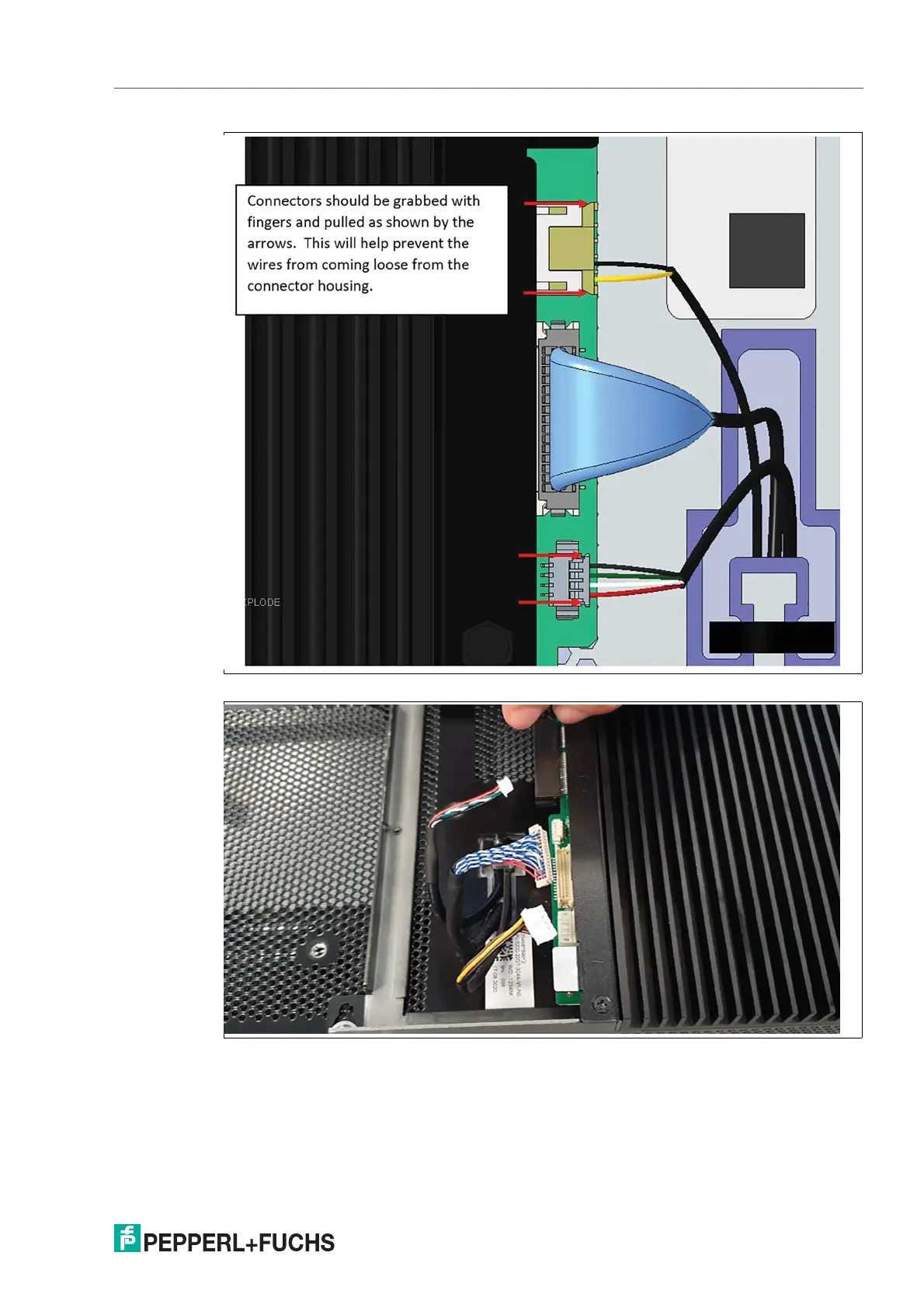

Figure 7.5 Remove connectors [2]

Figure 7.6

Remove the four screws that connect the computing unit to the DPU and remove the old

computer unit from the DPU.

Now the steps continue with your new device. If you are exchanging a BPC3200-*, open the

side cover first. Remove all four screws from the back of the computing unit and take it off the

computing unit (2).
