2021-04
28
VisuNet FLX Panel
Mechanical Installation

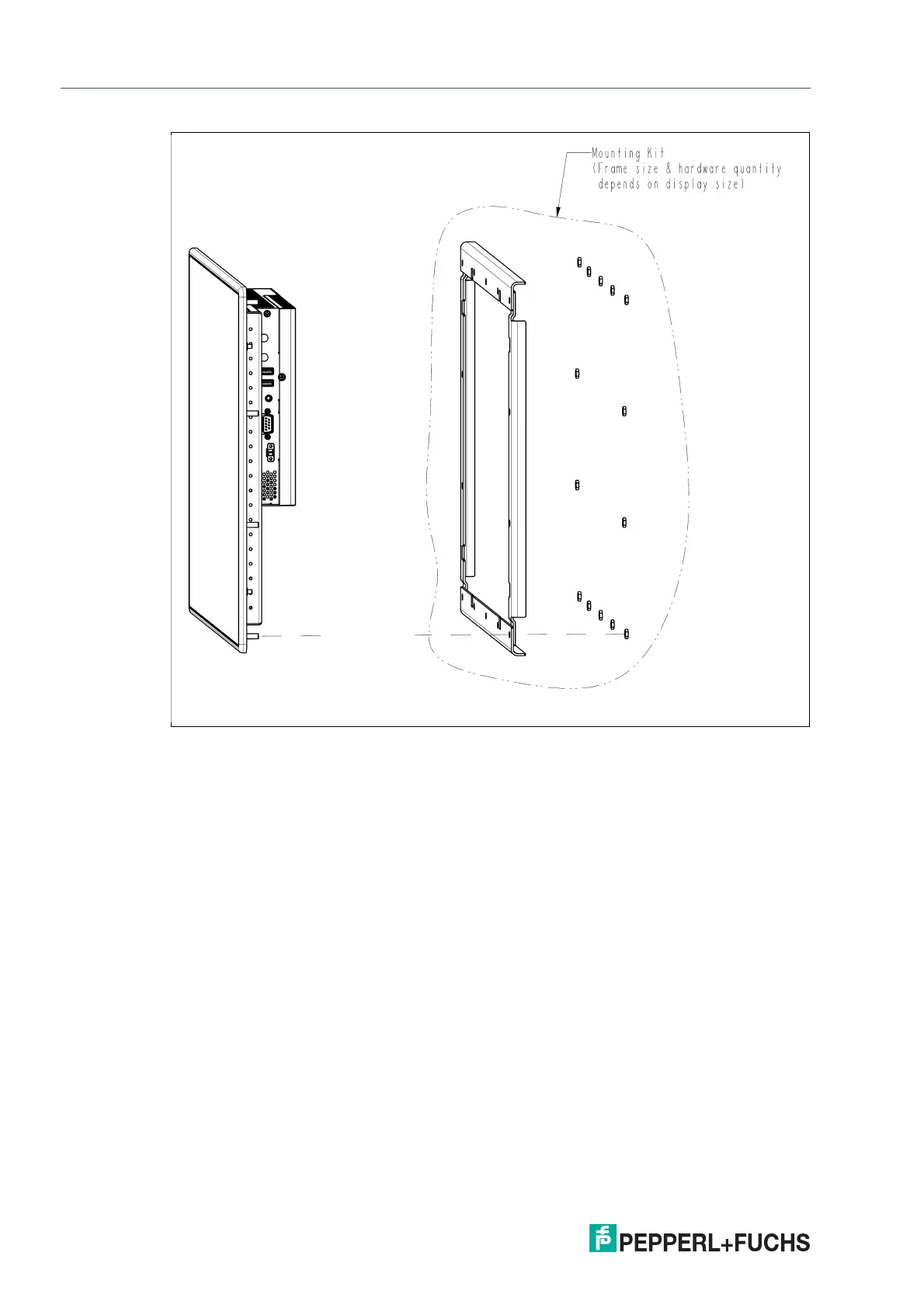

Figure 4.5
2.
From the front, place the bottom edge of VisuNet FLX Panel in the opening. Tilt the top of the
VisuNet FLX panel through the opening until the gasket connects smoothly to the enclosure.
Ensure that the gasket is properly positioned in the groove and against the panel.
3.
Hold on to the Panel from the front while placing the horizontal brackets from the back tighten
them in a criss-cross pattern using a torque of 4 Nm.
4.
Tighten the vertical brackets as well in a criss-cross pattern with a torque of 4 Nm.
