Perfect Flame 720-0335 - DRAWER, DOOR, AND GRILL HEAD ASSEMBLY

10
DRAWER HEAT SHIELD ASSEMBLY

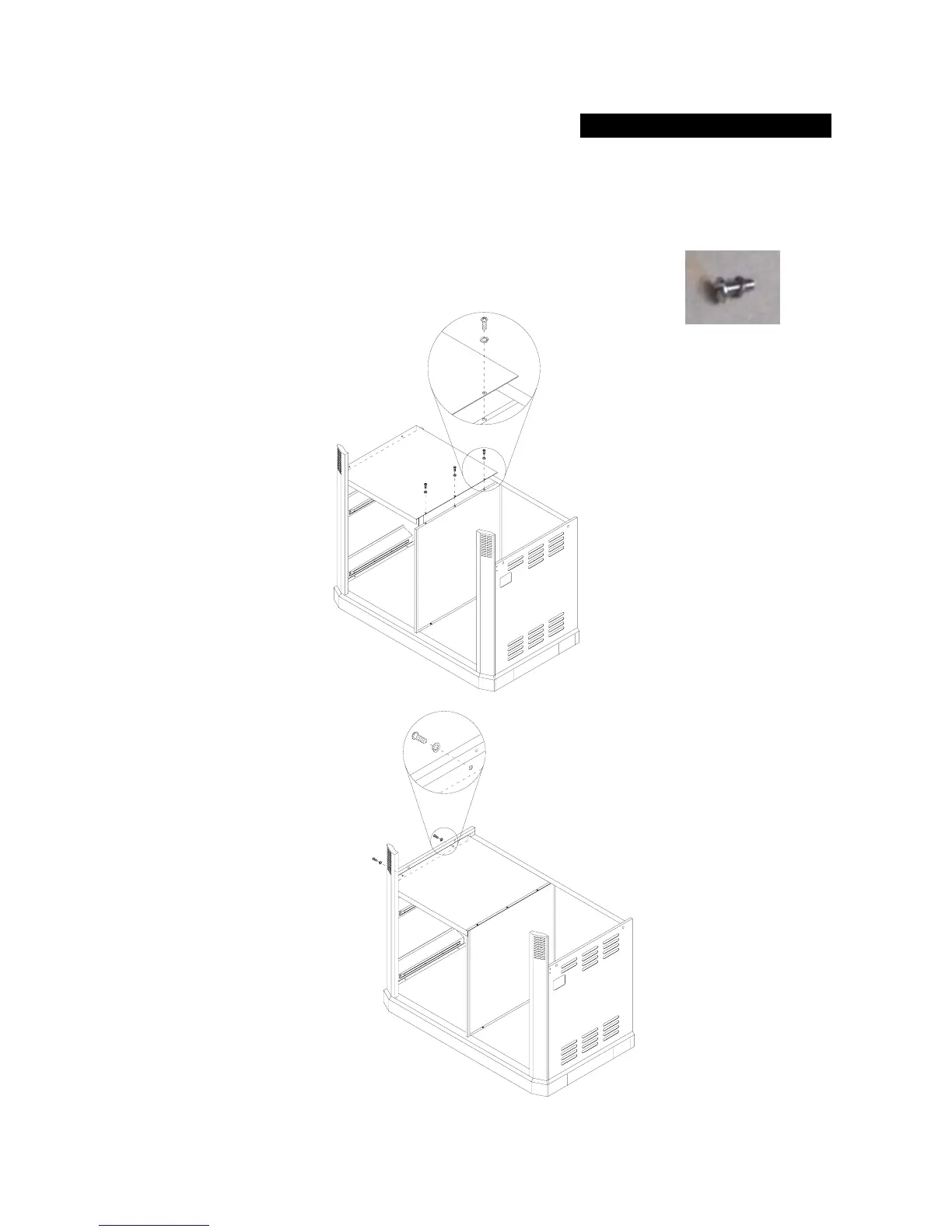

Assembly the drawer heat shield with 3 pcs 5/32” X 10mm truss head screws and 3 pcs of
5/32” split locks (Pack B) to the cart clapboard as shown figure A and with 2 pcs 5/32” X 10mm
truss head screws and 2 pcs of 5/32” split locks (Pack B) to the side left panel as shown figure
B.
A
Pack B
B
