PerkinElmer Lambda 365 Installation Instructions

09931286E
12

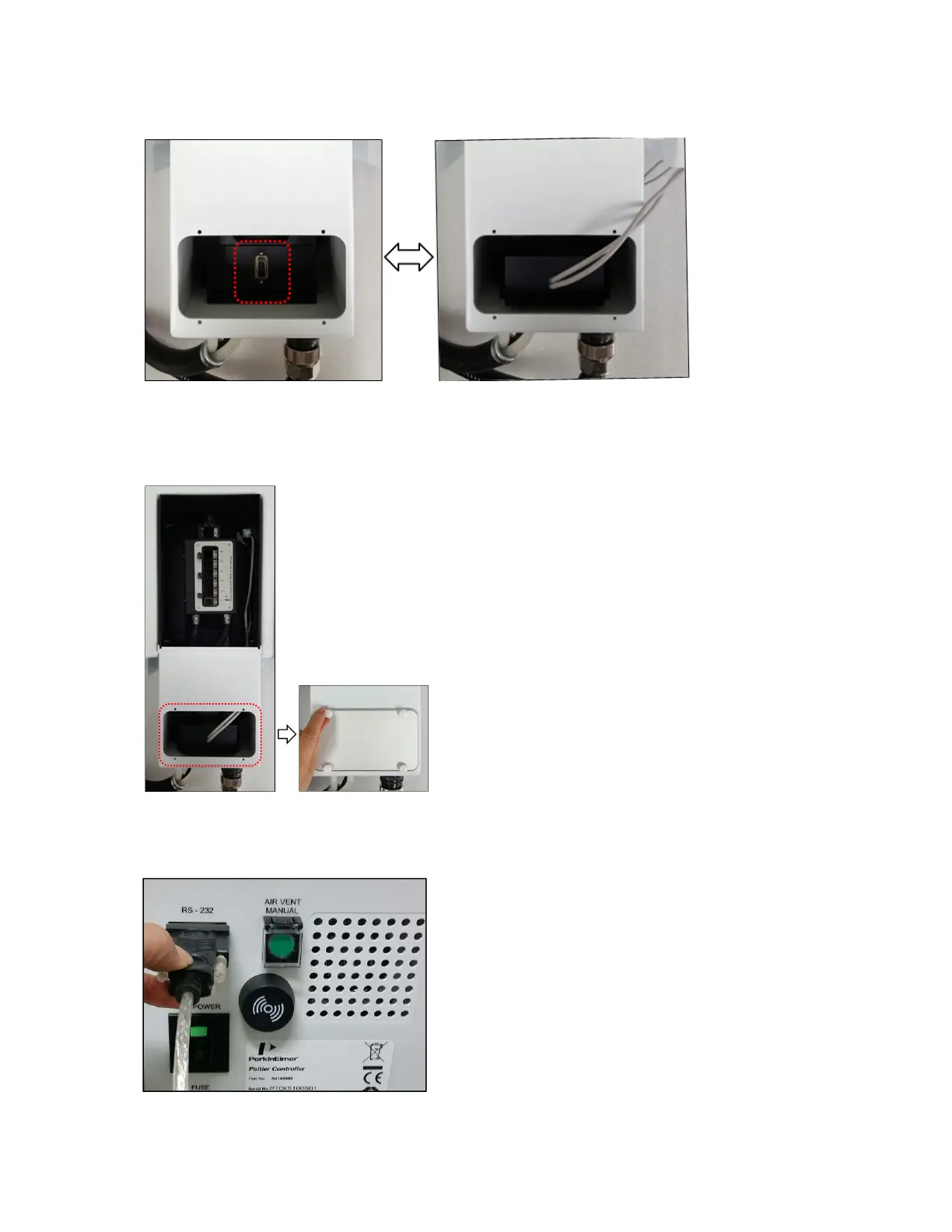

13. Connect the Temperature Probe to the Interface slot for Temperature Probe.
Figure 16 Connecting the temperature probe
14. Stuff the probe line into the cell compartment and close the lid of the Interface slot for
Temperature Probe.
Figure 17 Stuffing the probe line into the cell compartment
15. Connect the Peltier Controller with the PC via the RS-232 or USB to RS-232 cable.
Figure 18 Connecting the Peltier Controller with the PC
