09931286E
30
Calibration of Multi-Cell Position
NOTE:
Calibrate the beam position of the 6-Position Peltier Controlled Cell Changer when the Multi-Cell is
installed for the first time or beam position is incorrect.

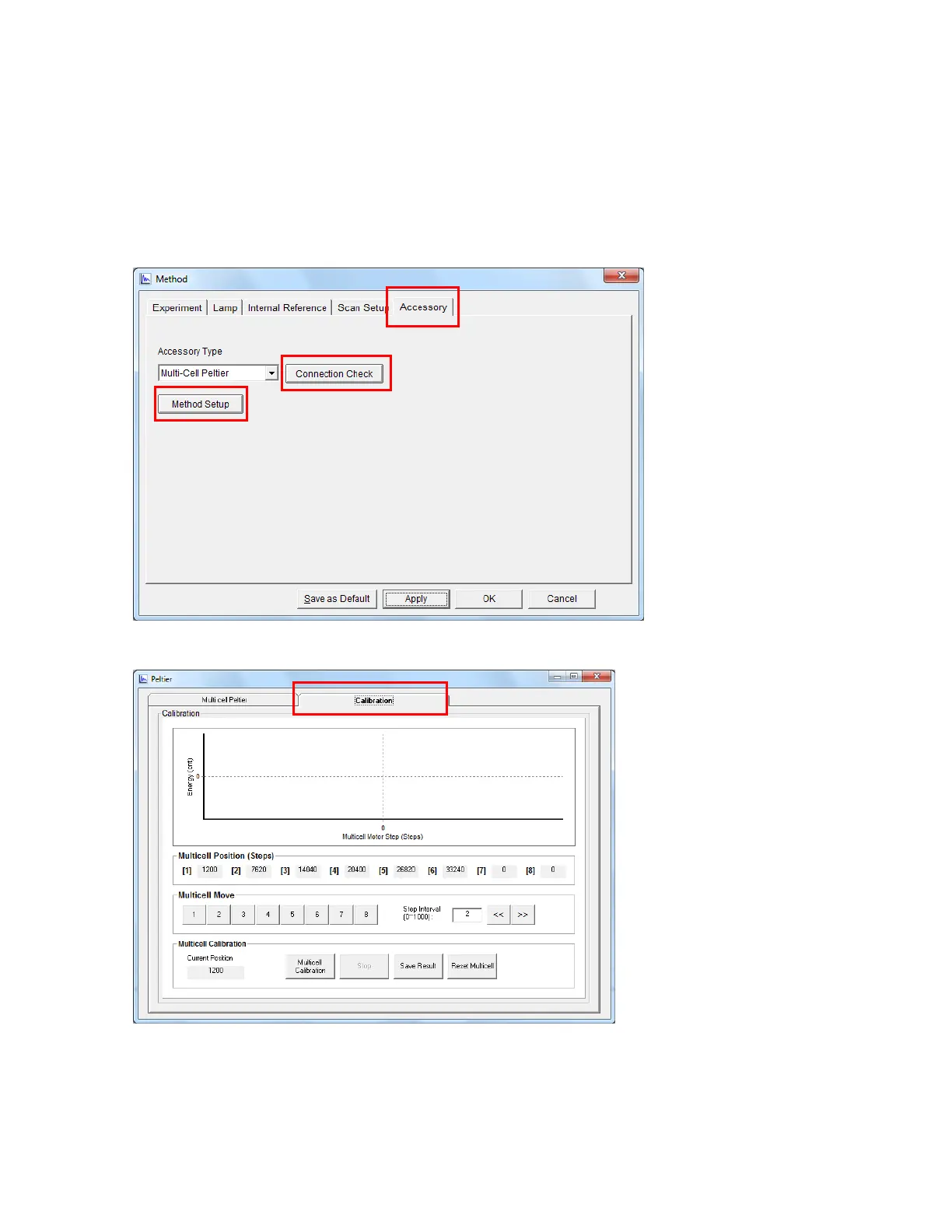

1. Execute one measurement mode of UV Express software (Scan, for example) and open the Method
Setup of the Multi-Cell Peltier.
2. Select the Calibration tab in the Peltier setup. The following dialog box will appear.
①
②
③
To Next Page
