Operation Section
Lifting and Storage
i05933416
Engine Lifting

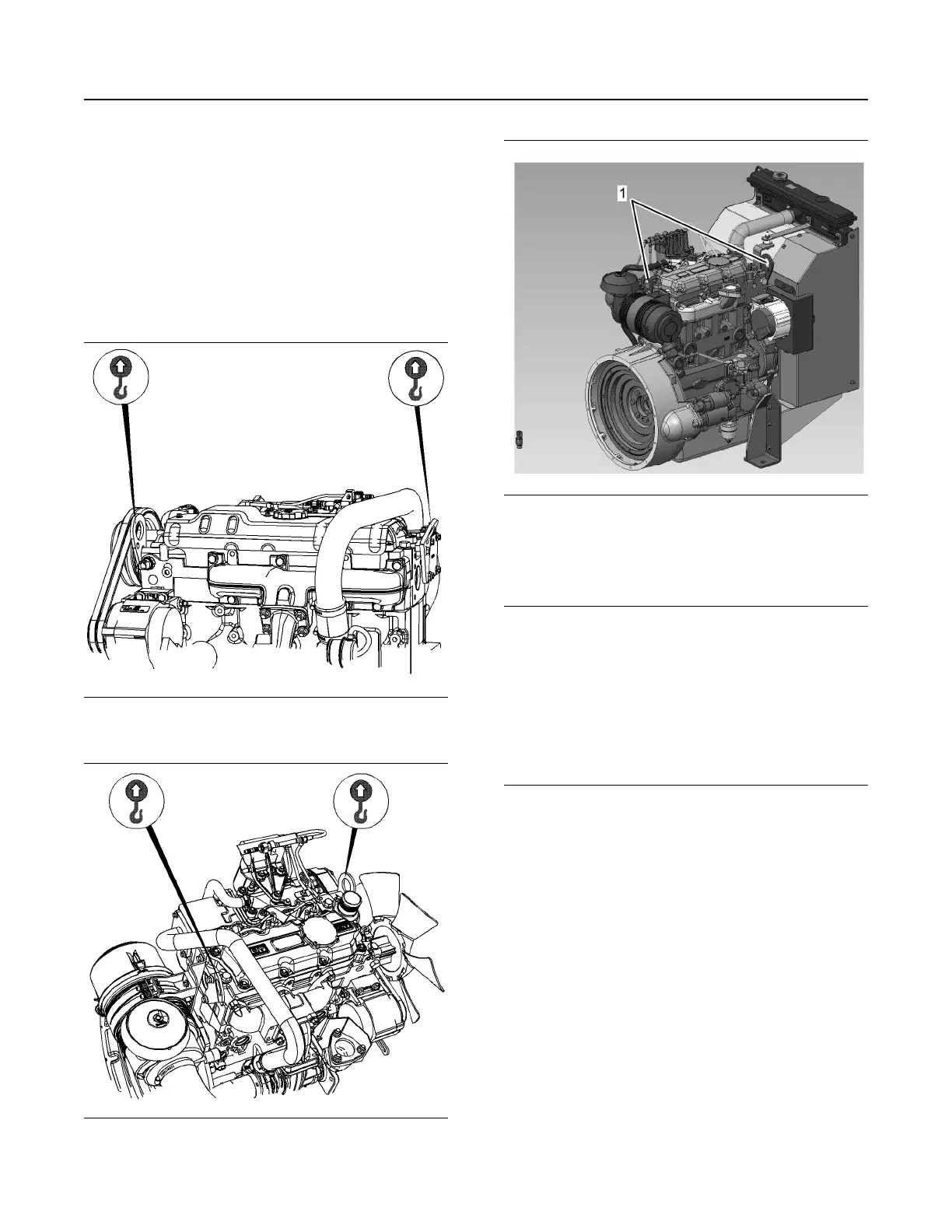

Illustration 23 g03729078
Typical example of the four cylinder lifting eyes
Illustration 24 g03791046
Typical example of the three cylinder lifting eyes
Illustration 25 g03791033
The configuration of the lifting eyes in certain three
cylinder applications may be installed as shown in
illustration 25 .
(1) Lifting eyes
NOTICE
Never bend the eyebolts and the brackets. Only load
the eyebolts and the brackets under tension. Remem-
ber that the capacity of an eyebolt is less as the angle
between the supporting members and the object be-
comes less than 90 degrees.
When it is necessary to remove a component at an
angle, only use a link bracket that is properly rated for
the weight.
Use a hoist to remove heavy components. Use an
adjustable lifting beam to lift the engine. All
supporting members (chains and cables) should be
parallel to each other. The chains and cables should
be perpendicular to the top of the object that is being
lifted.
Some removals require lifting the fixtures in order to
obtain correct balance and safety.
To remove the engine ONLY, use the lifting eyes that
are on the engine.
Lifting eyes are designed and installed for specific
engine arrangements. Alterations to the lifting eyes
and/or the engine make the lifting eyes and the lifting
fixtures obsolete. If alterations are made, ensure that
correct lifting devices are provided. Consult your
Perkins dealer or your Perkins distributor for
information regarding fixtures for correct engine
lifting.
SEBU7833 23
Operation Section
Engine Lifting
