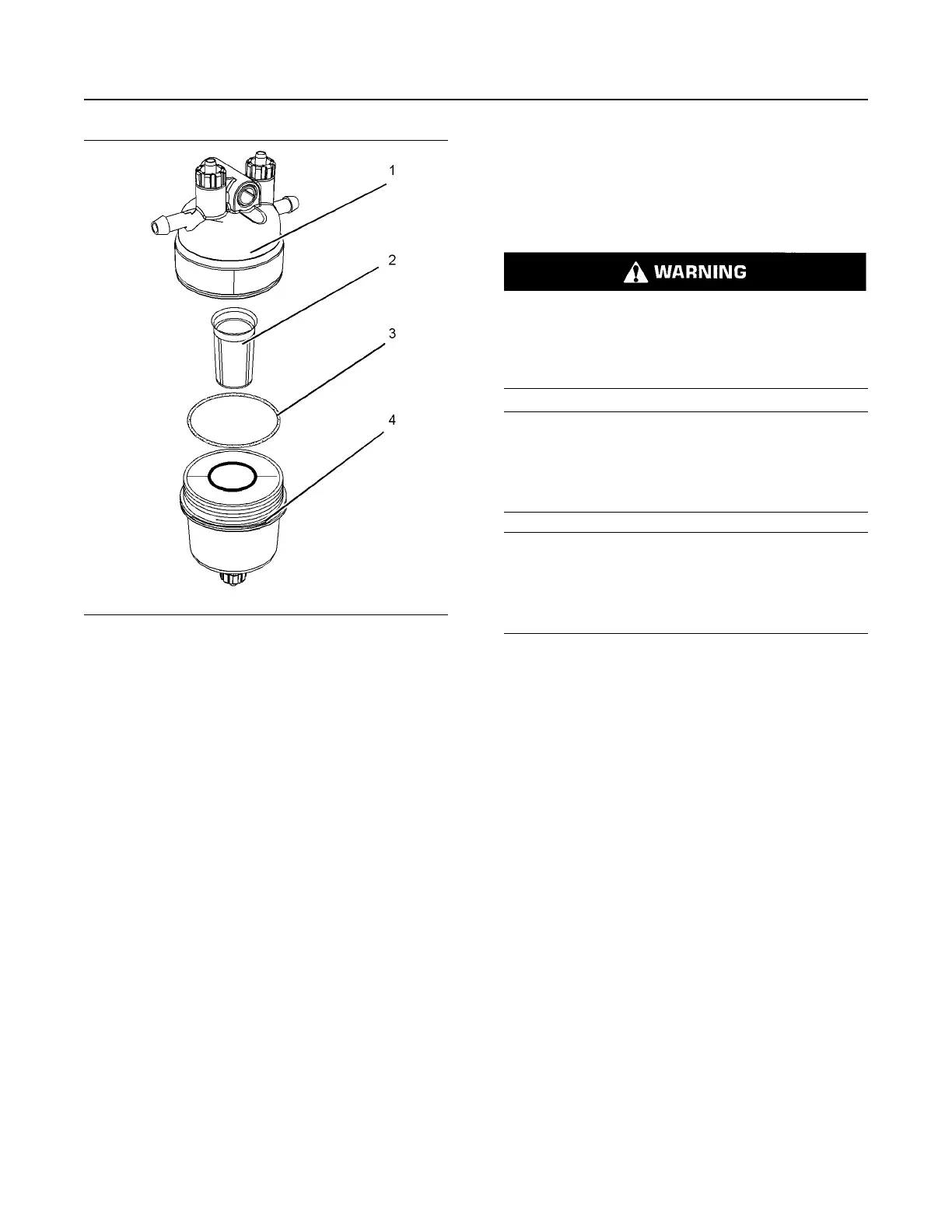

Illustration 53 g03721602
3. Remove filter bowl (4) from filter base (1). Remove
O ring seal (3) and filter element (2). Discard O ring
seal and filter element.
4. Ensure that the filter bowl is clean and free from
dirt.
5. Install O ring seal (3) onto bowl (4) and install
element (2).
6. Install bowl assembly on the filter base. Tighten
bowl assembly to a torque of 8 N·m (70 lb in).
Remove container and discard fluid.
7. The secondary filter must be replaced at the same
time as the primary filter. Refer to the Operation
and Maintenance Manual, “Fuel System
Secondary Filter - Replace”.
i05914093
Fuel System Primary Filter/
Water Separator - Drain
Fuel leaked or spilled onto hot surfaces or electri-
cal components can cause a fire. To help prevent
possible injury, turn the start switch off when
changing fuel filters or water separator elements.
Clean up fuel spills immediately.
NOTICE
The water separator is not a filter. The water separa-
tor separates water from the fuel. The engine should
never be allowed to run with the water separator more
than half full. Engine damage may result.
NOTICE
The water separator is under suction during normal
engine operation. Ensure that the drain valve is tight-
ened securely to help prevent air from entering the
fuel system.
