2. Open the drain (1) and allow fluid to drain from the
filter. When clean fuel can be see close the drain.
Tighten the drain by hand pressure only. Dispose
of the drained fluid in accordance with local
regulations.
i05914153
Fuel System Secondary Filter -
Replace
Fuel leaked or spilled onto hot surfaces or electri-
cal components can cause a fire. To help prevent
possible injury, turn the start switch off when
changing fuel filters or water separator elements.
Clean up fuel spills immediately.
NOTICE
Do not allow dirt to enter the fuel system. Thoroughly
clean the area around a fuel system component that
will be disconnected. Fit a suitable cover over discon-
nected fuel system component.
There are three different types of secondary fuel
filters that can be installed. Turn the valves for the fuel
lines (if equipped) to the OFF position before
performing this maintenance. Place a tray under the
fuel filter in order to catch any fuel that might spill.
Clean up any spilled fuel immediately.
Type 1 Secondary Fuel Filter
Clean the outside body of the filter assembly.
Remove the Element

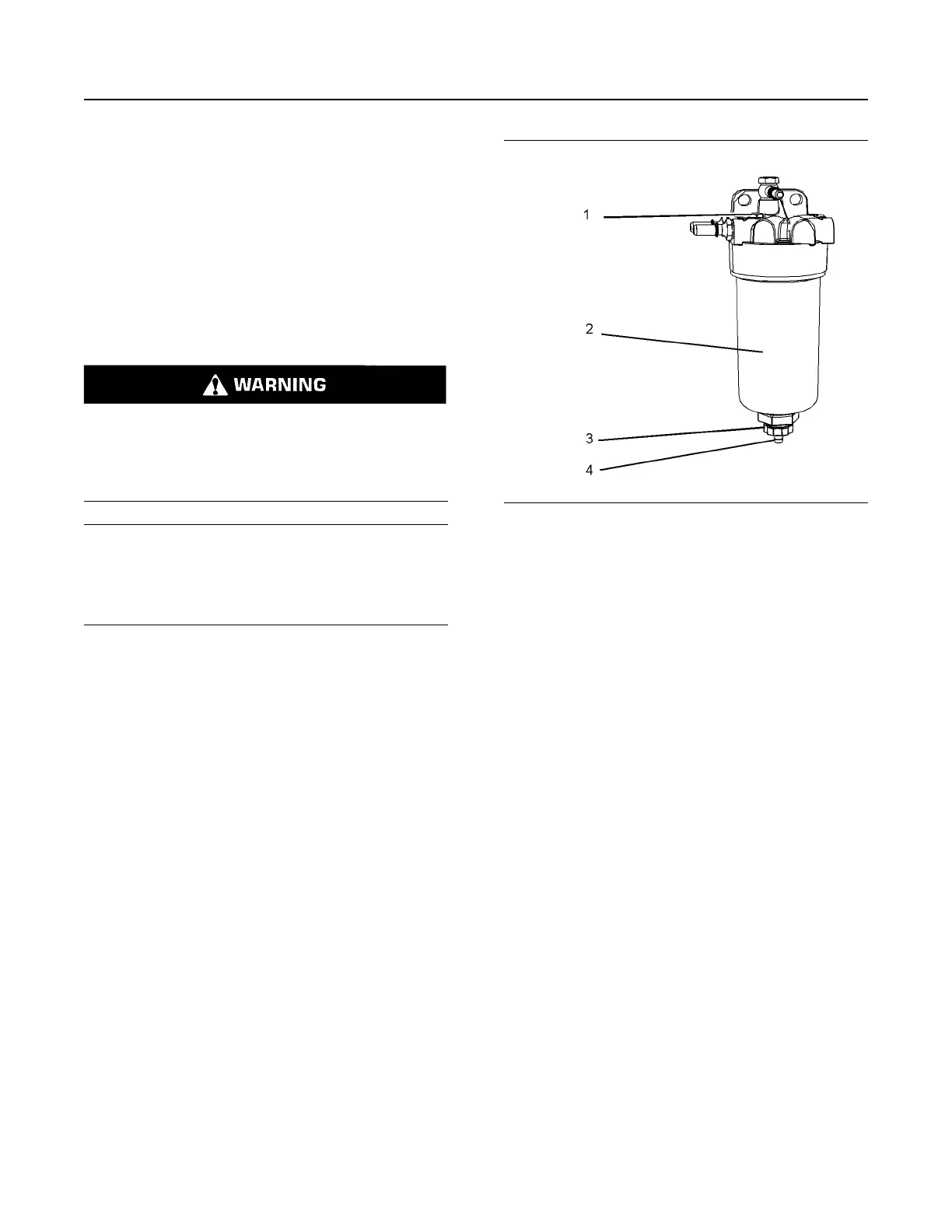

Illustration 56 g03088718
Typical example
1. Install a suitable tube onto drain (4). Open the drain
valve (3). Rotate the drain valve counterclockwise.
Two full turns are required. Loosen vent screw (1).
2. Allow the fuel to drain into the container and
remove the tube.
3. Tighten the vent screw (1) securely.
4. Remove the filter bowl (2). Rotate the filter
assembly counterclockwise in order to remove the
assembly.
SEBU7833
77
