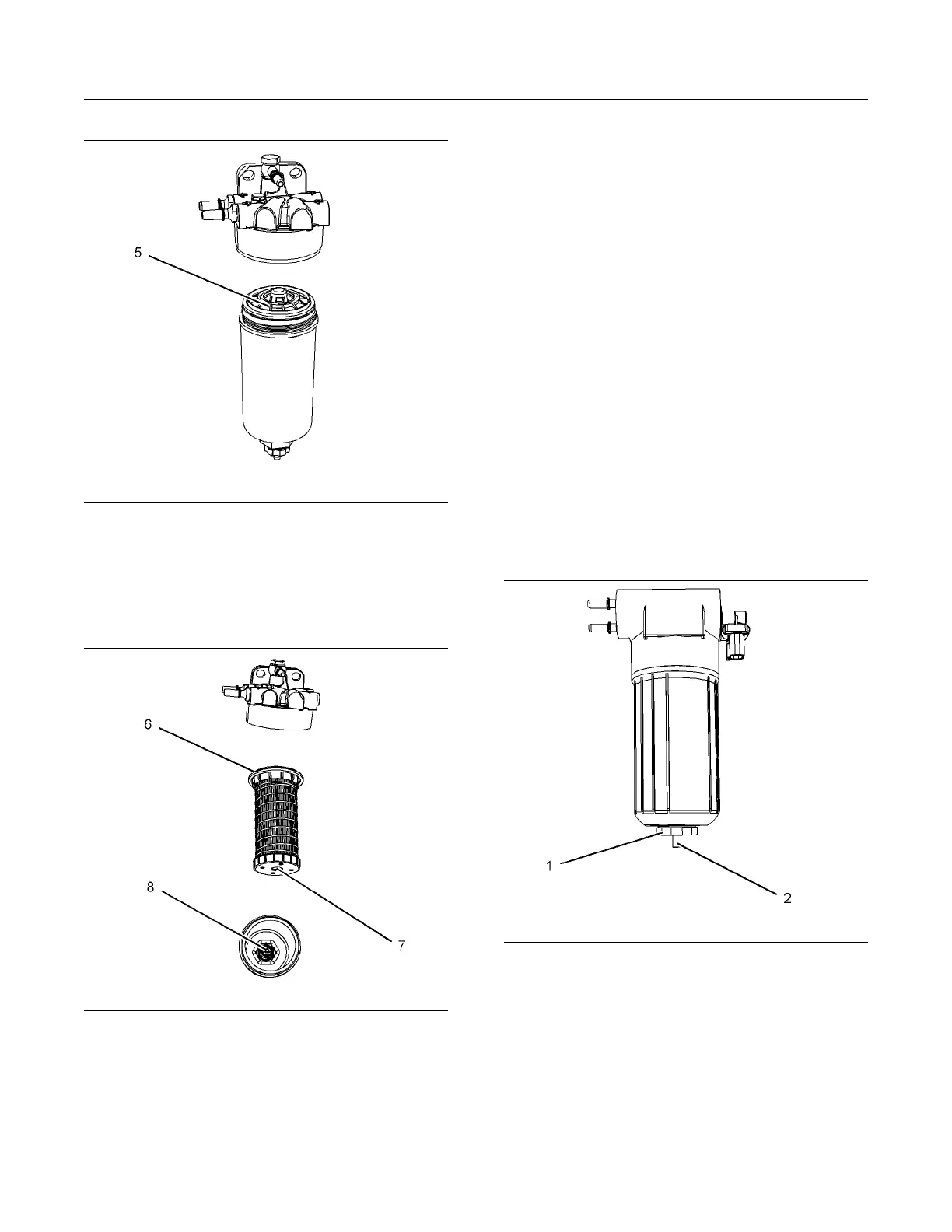

Illustration 57 g02546456
Typical example
5. Rotate the filter element (5) counterclockwise and
remove the filter element. Clean the filter bowl.
Install the Element
Illustration 58 g03088837
Typical example
1. Locate the thread (7) in the filter element onto the
threads (8). Spin on the element and tighten the
drain valve (3) by hand.
2. Lubricate the O ring seal (6) with clean engine oil.
Do NOT fill the filter bowl (2) with fuel before the
filter assembly is installed.
3. Do not use a tool in order to install the filter
assembly. Tighten the assembly by hand. Install
the filter bowl (2). Turn the filter bowl clockwise
until the filter bowl locks into position against the
stops.
4. If equipped, turn the fuel supply valve to the ON
position and remove the container.
5. The primary fuel filter and the secondary fuel filter
must be replaced at the same time. Refer to the
Operation and Maintenance Manual, “Fuel System
Primary Filter (Water Separator) Element -
Replace”.
6. Prime the fuel system. Refer to the Operation and
Maintenance Manual, “Fuel System - Prime” for
more information.
Type 2 Secondary Fuel Filter
Illustration 59 g03721946
Typical example
1. Clean the outside body of the filter assembly. Install
a suitable tube onto drain (2). Rotate the drain
valve (1) counterclockwise. Allow the fuel to drain
into the container and remove the tube.
2. Remove the filter bowl (6) from the filter base (3).
Press on the element (4). Rotate the element
counterclockwise in order to release the element
for the filter bowl and remove the element from the
bowl. Discard the used element.
78 SEBU7833
Refill Capacities
Fuel System Secondary Filter - Replace
