SEBU8121 73
Maintenance Section
Fuel System Primary Filter (Water Separator) Element - Replace
i02206563
Fuel System Primary Filter
(Water Separa
tor) Element -
Replace
Fuel leaked or s pilled onto hot surfaces or elec-
trical components can cause a fire. To help pre-
vent possible injury, turn the start switch off when
changing fuel filters or water separator elements.
Clean up fuel spills immediately.
NOTICE
Do not allow dirt to enter the fuel system. Thoroughly
clean the are
a around a fuel system component that
will be disconnected. Fit a suitable cover over discon-
nected fuel system component.

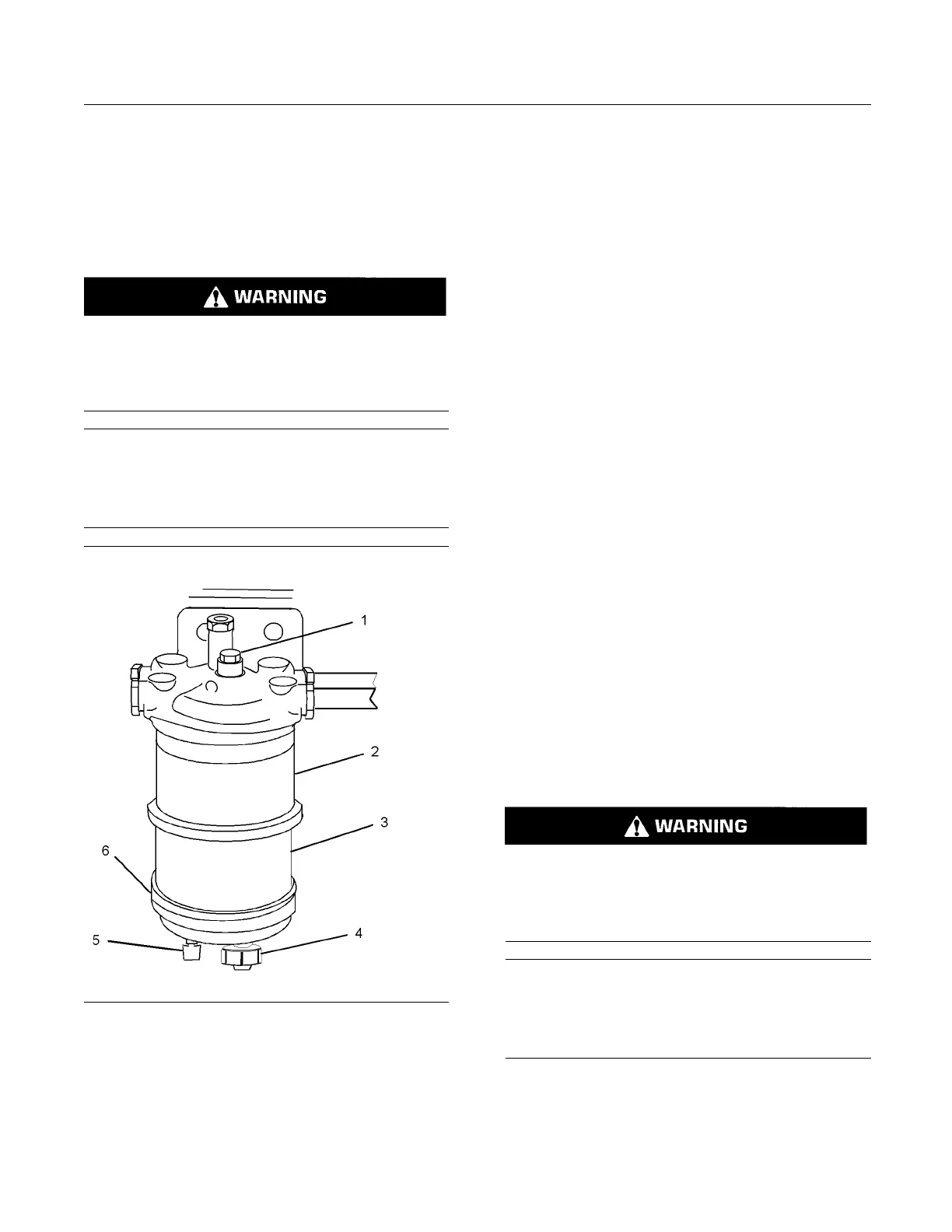

g01118416
Illustration 41
(1) Screw
(2) Elem ent
(3) Glass bowl
(4) Sensor connec tion
(5) Drain
(6) Bottom cover
1. Turn the fuel supply valve (if equipped) to the OFF
position.
2. Place a suitabl
e container under the water
separator. Clean the outside of the water
separator.
3. Open the drain (5). Allow the fluid to drain into the
container.
4. Tighten the drain (5) by hand pressure only.
5. Hold the eleme
nt (2) and remove the screw (1).
Remove the element and the glass bowl (3) from
the base. Discard the old element.
6. Clean the glass bowl (4). Clean the bottom cover
(6).
7. Install the new O ring seal. Install the bottom
cover onto the new element. Install the assembly
onto the base
.
8. Install the screw (1) and tighten the screw to a
torque of 8 N
·m (6 lb ft).
9. Remove the container and dispose of the fuel
safely.
10. Open the fuel supply valve.
11. Prime the fuel system. Refer to the Operation and
Maintenance Manual, “Fuel System - Prime” for
more inform
ation.
i02223550
Fuel Syste
m Secondary Fi lter -
Replace
Fuel leake
d or spilled onto hot surfaces or elec-
trical components can cause a fire. To help pre-
vent possible injury, turn the start switch off when
changing
fuel filters or water separator elements.
Cleanupfuelspillsimmediately.
NOTICE
Do not allow dirt to enter the fuel system. Thoroughly
clean the area around a fuel system component that
will be disconnected. Fit a suitable cover over discon-
nected fuel system component.
