2806 Variable Speed Engine

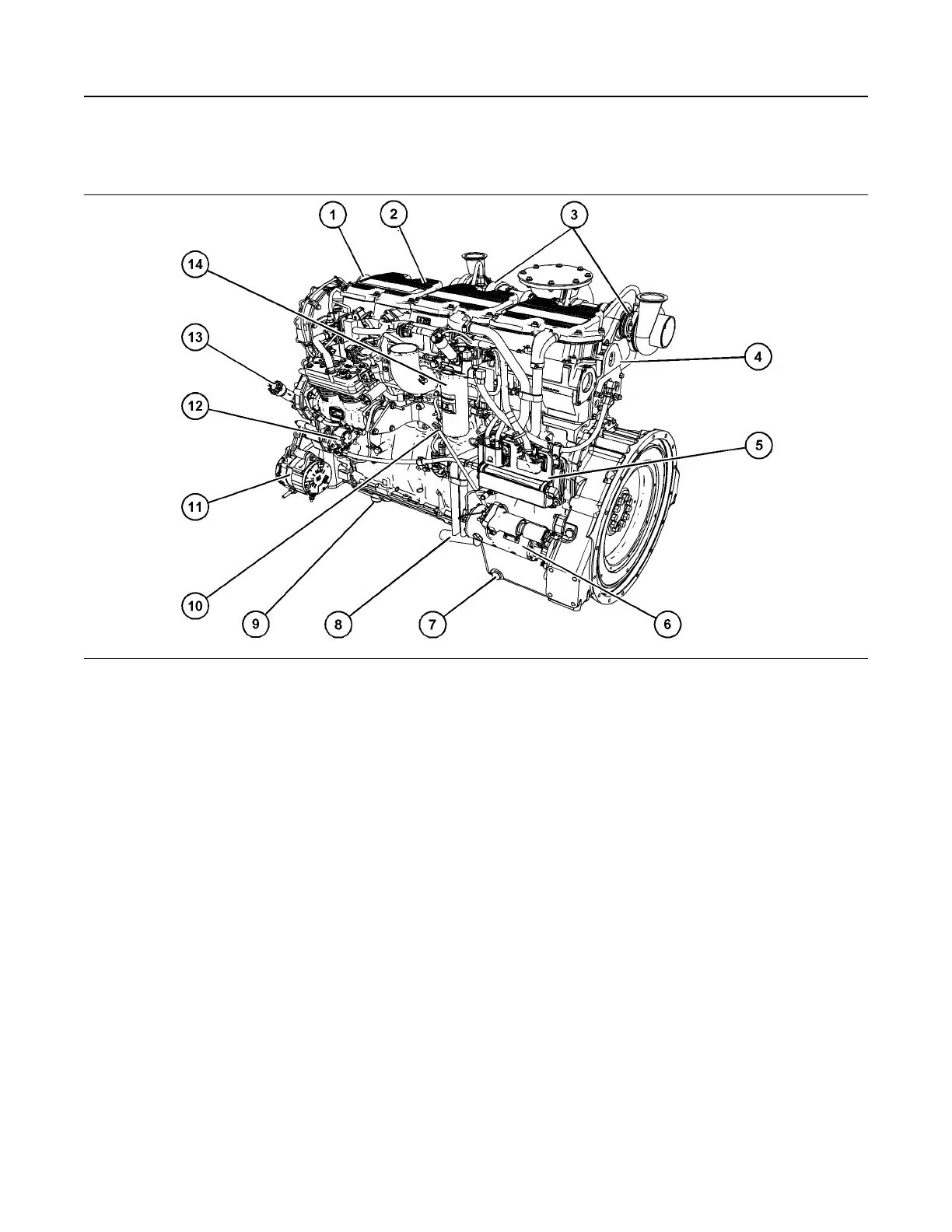

Illustration 19 g06237453
Typical example
(1) Engine front lifting eye
(2) Valve mechanism cover
(3) Turbochargers
(4) Engine rear lifting eye
(5) Electronic Control Module (ECM)
(6) Starting Motor
(7) Oil drain plug (rear)
(8) Crankcase breather outlet hose
(9) Oil drain plug front (if equipped)
(10) Oil gauge (Dipstick)
(11) Alternator
(12) Fuel transfer pump
(13) Engine oil filler
(14) Secondary fuel filter and priming pump
24
SEBU9074-06
Product Information Section
Model View Illustrations
