Perkins 2806C-E18TA - Product Description

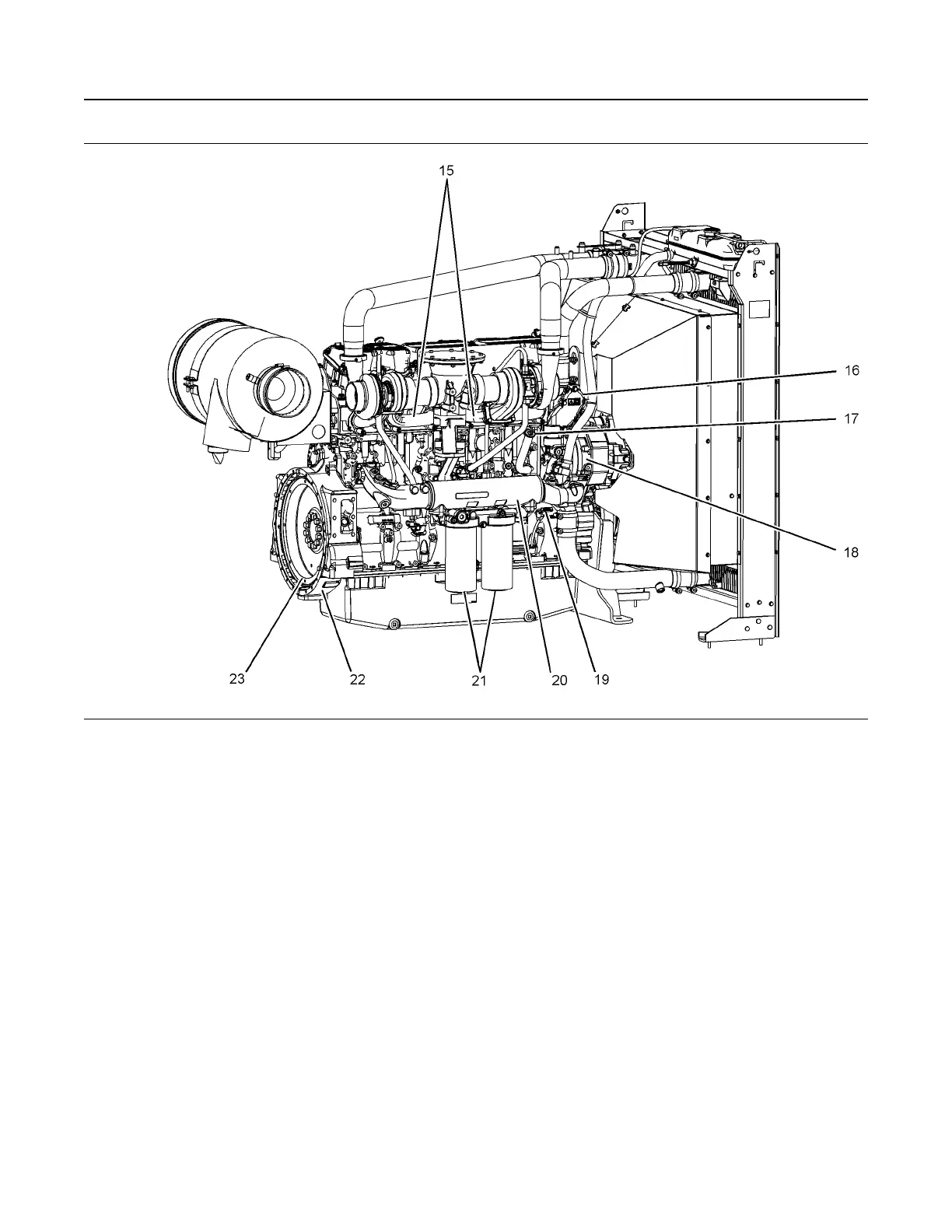

Illustration 16 g03856904
(15) Exhaust manifolds
(16) Water temperature regulator valve
(Thermostat)
(17) Oil filler
(18) Coolant pump
(19) Oil gauge (Dipstick)
(20) Oil cooler
(21) Oil filters
(22) Flywheel housing
(23) Flywheel
i06732090
Product Description
The Perkins 2806C-E18TA and the 2806D-
E18TAindustrial engines have the following
characteristics:
• Four-stroke cycle
• Mechanically actuated, electronically controlled
fuel injection system
• Turbocharged
• Air to air charged cooled
Engine Specifications
Note: The front end of the engine is opposite the
flywheel end of the engine. The left and the right
sides of the engine are determined from the flywheel
end. The number 1 cylinder is the front cylinder.
SEBU9074-01
19
Product Information Section
Product Description
