2806C

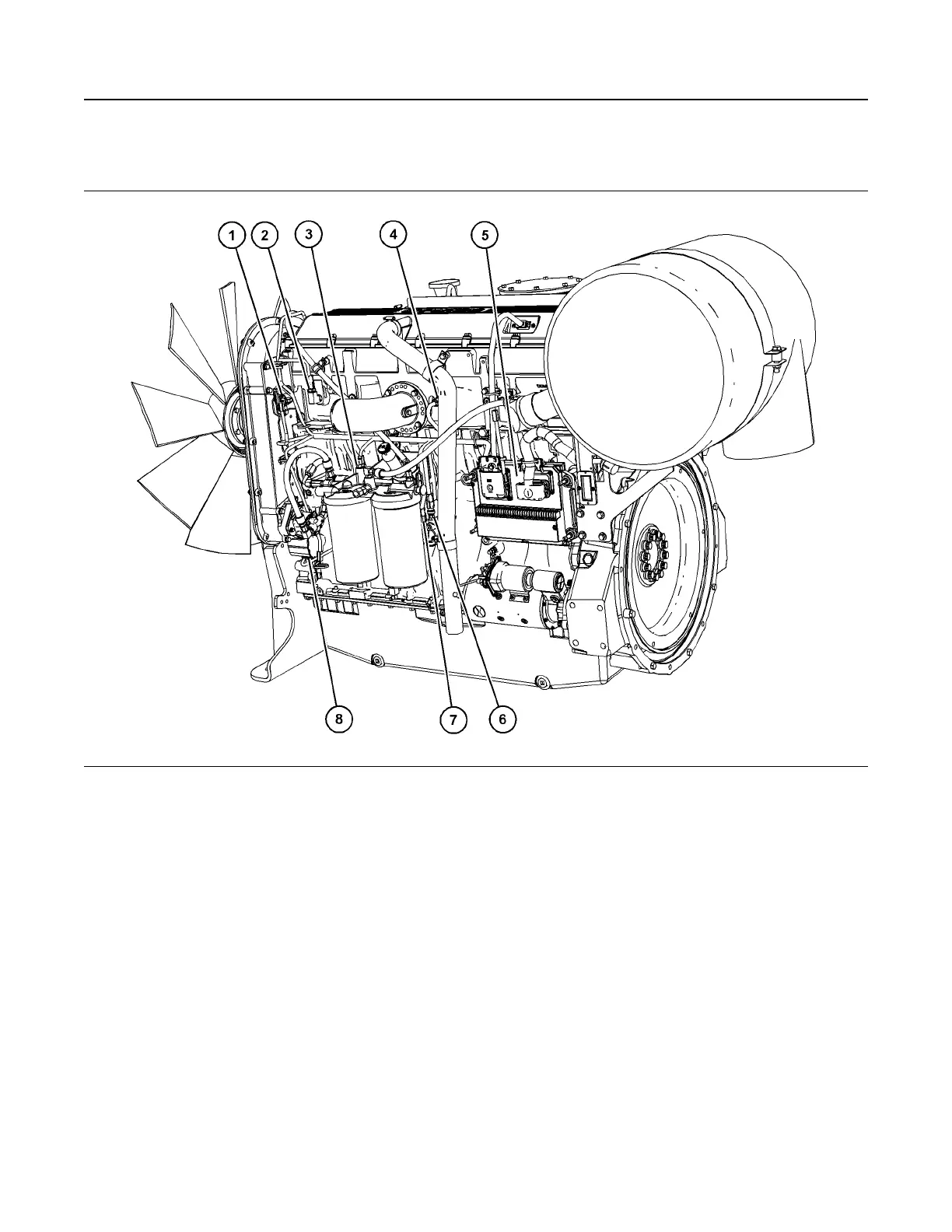

Illustration 25 g06095211
Typical example
(1) Camshaft speed timing sensor
(2) Intake manifold pressure sensor
(3) Fuel temperature sensor
(4) Intake manifold temperature sensor
(5) Electronic Control Module (ECM)
(6) Oil pressure sensor
(7) Atmospheric pressure sensor
(8) Crankshaft speed timing sensor
30
SEBU9074-01
Operation Section
Sensors and Electrical Components
